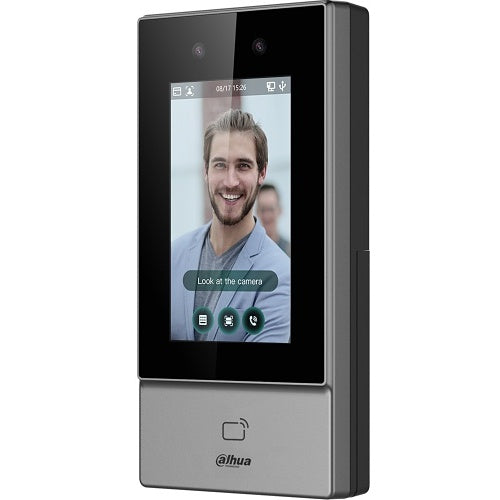

Dahua Technology DHI-ASI6213S-PW-V1 recognition access controller
About this product
Dahua Technology DHI-ASI6213S-PW-V1 is a recognition access controller.
The Dahua DHI-ASI6213S-PW-V1 Face Recognition Access Controller is designed for secure access management with a 4.3" touchscreen featuring 480 x 800 resolution. It includes a 2MP dual-lens wide-angle camera with IR and DWDR, delivering face recognition accuracy of 99.9% within 0.2 seconds. The device supports up to 6,000 users, 6,000 faces, 6,000 passwords, and 10,000 cards, with added visitor QR code functionality.
Connectivity includes Wi-Fi compatible with IEEE802.11b/g/n at 2.4GHz and PoE, while the controller powers electromagnetic locks and card readers up to 12V 1A. Additional features include remote door opening via mobile app, alarm notifications, attendance report export, and an operating temperature range from -30°C to +60°C.
Key features
- 4.3" Touch screen with 480 x 800 resolution
- 2MP dual-lens wide-angle camera with IR and DWDR
- Face recognition accuracy of 99.9% and speed of 0.2s
- Supports 6,000 users, 6,000 faces, 6,000 passwords, 10,000 cards
- Supports visitor QR codes
- Mobile app support for remote door opening and alarm notifications
- Power supply for electromagnetic lock and card reader (max 12V 1A)
- Attendance reports export
- Operating temperature -30°C to +60°C
- Wireless standard IEEE802.11b/g/n at 2.4GHz
If you are matching this to an existing installation, work from the DHI-ASI6213S-PW-V1 part number rather than the description.
Specifications
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | DHI-ASI6213S-PW-V1 |
