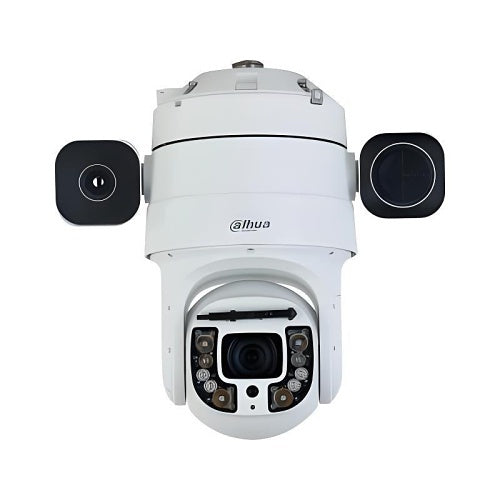

Dahua Technology DHI-TPC-SDA8641-B25Z45-BM-S22 smart linkage camera, 4MP
Free Delivery
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dahua Technology DHI-TPC-SDA8641-B25Z45-BM-S22 is a smart linkage camera from the Ultra range.
Featuring thermal and visible channels with independent PTZ, Thermal Network Smart Linkage Camera supports the linkage tracking of the two channels, offering monitoring for the panorama and details. With various AI functions such as tripwire, intrusion, human/vehicle classification, and boat detection, the camera is widely applied in outdoor scenes of the medium-distance perimeter protection.
Key features
- Vanadium oxide uncooled focal plane detector
- Starlight 1/1.8" 4MP progressive scan CMOS
- Thermal PTZ- Pan- 0° to 190°, tilt –5° to 180°
- Visible PTZ- Pan- 0° to 360°, tilt -30° to 90°
- Visible lens offers 45× optical zoom
- Thermal and visible channel linkage tracking
- Offers various AI functions such as tripwire, target filtering and intrusion detection
- Two-way audio, sound and light alarm
- IR illumination distance ≥ 250m
- Wide input voltage of 36 VDC ± 25%
Technical Details
Specifications
Brand Name
Dahua Technology
Manufacturer Part Number
DHI-TPC-SDA8641-B25Z45-BM-S22
Product Series
Ultra
Product Type
PTZ Security Camera
Technical information
Connectivity Technology
Wired
Effective resolution
4MP
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Fixed
Maximum Aperture
f/4.5
Maximum Frame Rate
25fps
Minimum Focal Length
5.50mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Optical Zoom
45.0x
Video Formats
H.264 / AVC, H.264 High Profile, H.265 / HEVC
Video Resolution
2560 x 1440
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS, Uncooled Focal Plane Arrays
Night Vision Distance
250.00m
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
2560 x 1440
Environmental conditions
Maximum Operating Temperature
65°C
Minimum Operating Temperature
-40°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1 Second
Minimum Illumination
0.0001lux
Shortest Shutter Speed
1/30000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
25mm, 5.5-248mm
Lens Included
Yes
Maximum Focal Length
248.00mm
Maximum Thermal Focal Length
50.00mm
Minimum Aperture
f/1.4
Network & communication
Remote Management
Yes
Physical characteristics
Form Factor
PTZ
Height
476.50mm
Weight
15.90kg
Width
267.00mm
Power description
Input Voltage
36V DC
Product information
Length
484.80mm
Mount Type
Pendant Mount, Pole Mount, Wall Mount
Storage
Storage Type
SD Card
Video
Maximum Resolution
2560 x 1440
Miscellaneous
Indoor or outdoor use
Indoor, Outdoor
Attributes
Input Voltage
36V DC
Weight
15.90kg
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | DHI-TPC-SDA8641-B25Z45-BM-S22 |
| Product Series | Ultra |
| Product Type | PTZ Security Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 4MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/4.5 |
| Maximum Frame Rate | 25fps |
| Minimum Focal Length | 5.50mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Optical Zoom | 45.0x |
| Video Formats | H.264 / AVC, H.264 High Profile, H.265 / HEVC |
| Video Resolution | 2560 x 1440 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS, Uncooled Focal Plane Arrays |
|---|---|
| Night Vision Distance | 250.00m |
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 2560 x 1440 |
|---|
Environmental conditions
| Maximum Operating Temperature | 65°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1 Second |
|---|---|
| Minimum Illumination | 0.0001lux |
| Shortest Shutter Speed | 1/30000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 25mm, 5.5-248mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 248.00mm |
| Maximum Thermal Focal Length | 50.00mm |
| Minimum Aperture | f/1.4 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Form Factor | PTZ |
|---|---|
| Height | 476.50mm |
| Weight | 15.90kg |
| Width | 267.00mm |
Power description
| Input Voltage | 36V DC |
|---|
Product information
| Length | 484.80mm |
|---|---|
| Mount Type | Pendant Mount, Pole Mount, Wall Mount |
Storage
| Storage Type | SD Card |
|---|
Video
| Maximum Resolution | 2560 x 1440 |
|---|
Miscellaneous
| Indoor or outdoor use | Indoor, Outdoor |
|---|
Attributes
| Input Voltage | 36V DC |
|---|---|
| Weight | 15.90kg |
