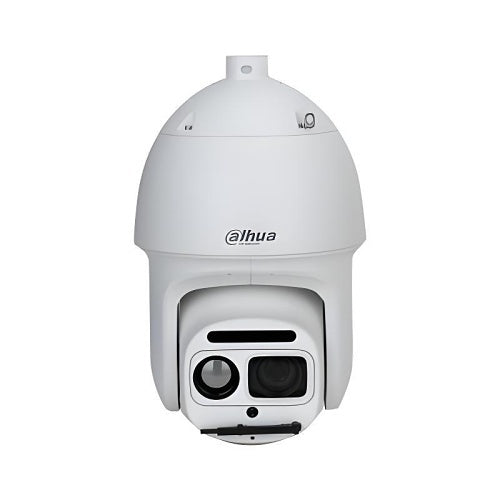

Dahua Technology DHI-TPC-SD8641B-B25Z45-BM-S22 speed dome camera, 4MP
Free Delivery
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dahua Technology DHI-TPC-SD8641B-B25Z45-BM-S22 is a speed dome camera from the TPC8 range.
Featuring thermal and visible channels, Thermal Network Hybrid Speed Dome Camera offers various AI functions such as heat detection, smoke detection, tripwire, intrusion, human/vehicle classification, and boat detection. The camera is widely applied in outdoor scenes of the medium-distance perimeter protection and heat detection.
Key features
- Vanadium oxide uncooled focal plane detector
- 1/1.8" 4MP progressive scan CMOS
- Visible lens offers 45× optical zoom
- Offers various AI functions such as boat, engineering truck and heat detection, tripwire, intrusion, target filtering, and alarm linkage, such as email alarm and external alarm
- Auto rain-sensing for a clear view and a longer service life of the wiper
- IR illumination distance 150m
- 7/2 Alarm in/out
Technical Details
Specifications
Brand Name
Dahua Technology
Manufacturer Part Number
DHI-TPC-SD8641B-B25Z45-BM-S22
Product Series
TPC8
Product Type
PTZ Security Camera
Technical information
Effective resolution
4MP
Field of View
Horizontal, Vertical
Lens Type
Fixed
Maximum Aperture
f/4.5
Maximum Frame Rate
30fps
Minimum Focal Length
5.50mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Optical Zoom
45.0x
Video Formats
H.264 / AVC, H.264 High Profile, H.265 / HEVC
Video Resolution
2688 x 1520
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS, Vanadium Oxide Uncooled Focal Plane Arrays
Night Vision Distance
150.00m
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
2688 x 1520
Environmental conditions
Maximum Operating Temperature
70°C
Minimum Operating Temperature
-40°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1 Second
Minimum Illumination
0.0001lux
Shortest Shutter Speed
1/30000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
25mm, 5.5-248mm
Lens Included
Yes
Maximum Focal Length
248.00mm
Maximum Thermal Focal Length
25.00mm
Minimum Aperture
f/1.4
Physical characteristics
Form Factor
Dome
Height
500.00mm
Weight
13.00kg
Width
300.00mm
Power description
Input Voltage
36V DC
Product information
Length
300.00mm
Mount Type
Ceiling Mount, Pole Mount, Wall Mount
Storage
Storage Type
SD Card
Video
Analog Video Signal Format
CVBS (Composite Video Baseband Signal)
Maximum Resolution
2688 x 1520
Miscellaneous
Indoor or outdoor use
Indoor, Outdoor
Attributes
Input Voltage
36V DC
Package Contents
10 A/250 V Power Cord; 36 V/2.23 A Power Supply; C80010-00 Mount Adapter
Weight
13.00kg
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | DHI-TPC-SD8641B-B25Z45-BM-S22 |
| Product Series | TPC8 |
| Product Type | PTZ Security Camera |
Technical information
| Effective resolution | 4MP |
|---|---|
| Field of View | Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/4.5 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 5.50mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Optical Zoom | 45.0x |
| Video Formats | H.264 / AVC, H.264 High Profile, H.265 / HEVC |
| Video Resolution | 2688 x 1520 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS, Vanadium Oxide Uncooled Focal Plane Arrays |
|---|---|
| Night Vision Distance | 150.00m |
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 2688 x 1520 |
|---|
Environmental conditions
| Maximum Operating Temperature | 70°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1 Second |
|---|---|
| Minimum Illumination | 0.0001lux |
| Shortest Shutter Speed | 1/30000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 25mm, 5.5-248mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 248.00mm |
| Maximum Thermal Focal Length | 25.00mm |
| Minimum Aperture | f/1.4 |
Physical characteristics
| Form Factor | Dome |
|---|---|
| Height | 500.00mm |
| Weight | 13.00kg |
| Width | 300.00mm |
Power description
| Input Voltage | 36V DC |
|---|
Product information
| Length | 300.00mm |
|---|---|
| Mount Type | Ceiling Mount, Pole Mount, Wall Mount |
Storage
| Storage Type | SD Card |
|---|
Video
| Analog Video Signal Format | CVBS (Composite Video Baseband Signal) |
|---|---|
| Maximum Resolution | 2688 x 1520 |
Miscellaneous
| Indoor or outdoor use | Indoor, Outdoor |
|---|
Attributes
| Input Voltage | 36V DC |
|---|---|
| Package Contents | 10 A/250 V Power Cord; 36 V/2.23 A Power Supply; C80010-00 Mount Adapter |
| Weight | 13.00kg |
