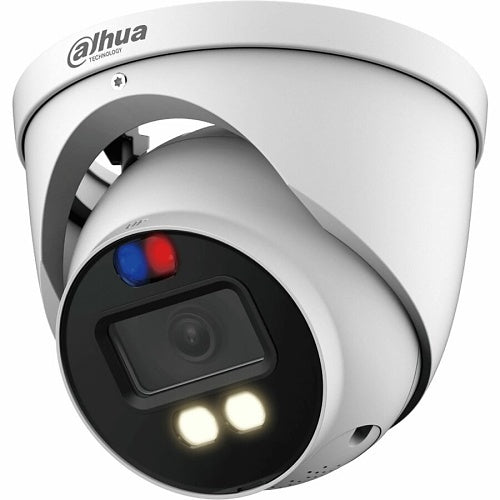

Dahua Technology DH-HAC-ME1509HP-A-PV-0280B-S2 surveillance camera, 5MP


About this product

Dahua Technology DH-HAC-ME1509HP-A-PV-0280B-S2 is a surveillance camera.

Dahua StarLight 4 in 1 dome, 5MP at 25ips (CVI) 4 in 1 output switchable. ICR, 0.001/0.0001 lux, Smart IR/Light 40m. Fixed optics 2.8 mm.

WDR 120dB, 3D-NR. Active deterrence (light+sound) Includes microphone and alarm output. IP67, 3AXIS 1.

Key features

  • 5MP CMOS Sensor
  • Digital resolution 5MP (2880x1620), 4MP (2560x1440), 1080P (1920x1080), 960H (960x576)
  • Images per second 25 ips at 5MP (CVI), 25/30 ips at 4MP (CVI/TVI/AHD), 25/30 ips at 1080P (CVI)
  • 4 In 1 switchable output
  • Day / night mode with removable mechanical filter
  • 0.001 Lux F1.0 (color) / 0.0001 lux F1.0 (B/W) / 0 lux with lighting activated
  • Smart IR, 2 IR LEDs, 40m
  • Smart Light, 2 warm light LEDs, 40m
  • 2.8mm Fixed optics
  • Automatic and manual gain control

If you are matching this to an existing installation, work from the DH-HAC-ME1509HP-A-PV-0280B-S2 part number rather than the description.

Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Dahua Technology
Manufacturer Part Number
DH-HAC-ME1509HP-A-PV-0280B-S2
Product Type
Surveillance camera
Technical information
Connectivity Technology
Wired
Effective resolution
5MP
Field of View
Diagonal, Horizontal, Vertical
Lens Mount Type
M12 (S-Mount)
Lens Type
Fixed
Maximum Aperture
f/1
Maximum Frame Rate
30fps
Minimum Focal Length
2.80mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Number of IR LEDs
2
Video Resolution
1280 x 720
Video Signal Format
NTSC, PAL
Camera
Image Sensor Type
CMOS
Night Vision Distance
40.00m
Certifications
Ingress protection
IP67
Environmental conditions
Maximum Operating Temperature
60°C
Minimum Operating Temperature
-40°C
Exposure
Longest Shutter Speed
1/3 Second
Shortest Shutter Speed
1/100000 Second
Lens
Lens Included
Yes
Maximum Focal Length
2.80mm
Physical characteristics
Colour
White
Durability
Dustproof, Waterproof
Form Factor
Eyeball
Weight
700.00g
Power description
Input Voltage
12V DC
Product information
Diameter
122.00mm
Mount Type
Ceiling Mount, Junction Box Mount, Pole Mount, Wall Mount
Video
Analog Video Signal Format
AHD, CVBS (Composite Video Baseband Signal), HD-CVI
Miscellaneous
Features
Auto Gain Control, Automatic White Balance, Day/Night, Defog, Gain Control, Highlight Compensation (HLC), Mirror, Noise Reduction, Privacy Masking, White Balance, Wide Dynamic Range
Attributes
Indoor or outdoor use
Outdoor
Input Voltage
12V DC
Weight
700.00g

Specifications

Brand Name Dahua Technology
Manufacturer Part Number DH-HAC-ME1509HP-A-PV-0280B-S2
Product Type Surveillance camera

Technical information

Connectivity Technology Wired
Effective resolution 5MP
Field of View Diagonal, Horizontal, Vertical
Lens Mount Type M12 (S-Mount)
Lens Type Fixed
Maximum Aperture f/1
Maximum Frame Rate 30fps
Minimum Focal Length 2.80mm
Night Vision Yes
Night Vision Type Infrared (IR)
Number of IR LEDs 2
Video Resolution 1280 x 720
Video Signal Format NTSC, PAL

Camera

Image Sensor Type CMOS
Night Vision Distance 40.00m

Certifications

Ingress protection IP67

Environmental conditions

Maximum Operating Temperature 60°C
Minimum Operating Temperature -40°C

Exposure

Longest Shutter Speed 1/3 Second
Shortest Shutter Speed 1/100000 Second

Lens

Lens Included Yes
Maximum Focal Length 2.80mm

Physical characteristics

Colour White
Durability Dustproof, Waterproof
Form Factor Eyeball
Weight 700.00g

Power description

Input Voltage 12V DC

Product information

Diameter 122.00mm
Mount Type Ceiling Mount, Junction Box Mount, Pole Mount, Wall Mount

Video

Analog Video Signal Format AHD, CVBS (Composite Video Baseband Signal), HD-CVI

Miscellaneous

Features Auto Gain Control, Automatic White Balance, Day/Night, Defog, Gain Control, Highlight Compensation (HLC), Mirror, Noise Reduction, Privacy Masking, White Balance, Wide Dynamic Range

Attributes

Indoor or outdoor use Outdoor
Input Voltage 12V DC
Weight 700.00g

Dahua Technology DH-HAC-ME1509HP-A-PV-0280B-S2 surveillance camera

Dahua Technology DH-HAC-ME1509HP-A-PV-0280B-S2 surveillance camera, 5MP

Who this is for

For the installer — this is the surveillance camera supplied under Dahua Technology part number DH-HAC-ME1509HP-A-PV-0280B-S2. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a surveillance camera made by Dahua Technology. The part number DH-HAC-ME1509HP-A-PV-0280B-S2 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this surveillance camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is returnable under our standard returns terms. Faulty goods are handled separately and are never affected by a returns restriction.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact surveillance camera I have been quoted? Check the manufacturer part number DH-HAC-ME1509HP-A-PV-0280B-S2 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against DH-HAC-ME1509HP-A-PV-0280B-S2 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
