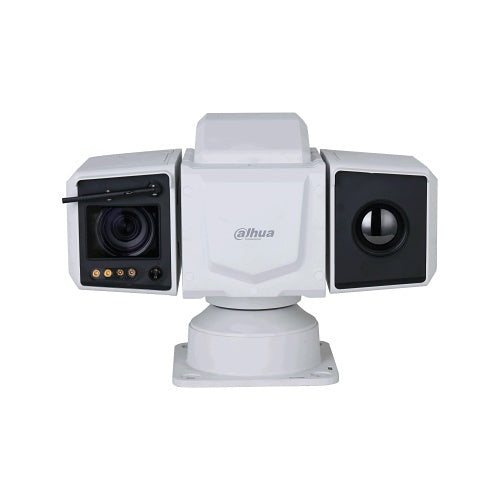

Dahua Technology DHI-TPC-PT8641MA-TB9Z45V1-DC-IR-S22 tilt camera, 4MP
Free Delivery
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dahua Technology DHI-TPC-PT8641MA-TB9Z45V1-DC-IR-S22 is a tilt camera from the Ultra range.
Introducing the Dahua DHI-TPC-PT8641MA-TB9Z45V1-DC-IR-S22 Ultra Series 4MP Thermal IP Mini Hybrid Pan and Tilt Camera. This advanced surveillance solution combines high-resolution thermal imaging with versatile pan and tilt functionality, ensuring comprehensive coverage of your premises. With an IP66 rating, it is designed to withstand harsh weather conditions, making it perfect for outdoor use.
Experience enhanced security with this state-of-the-art camera that adapts to your monitoring needs.
Key features
- Vanadium oxide uncooled focal plane detector
- 4MP progressive scan CMOS
- Powerful 45x optical zoom support tripwire, intrusion, and human/ vehicle classification
- Temperature measurement range of –20 °C to 550 °C
- Pan 0° to 360°, tilt –90° to 90°
- Wide input voltage of 10–36VDC
- Maximum IR illumination distance is 100m
Technical Details
Specifications
Brand Name
Dahua Technology
Manufacturer Part Number
DHI-TPC-PT8641MA-TB9Z45V1-DC-IR-S22
Product Series
Ultra
Product Type
PTZ Security Camera
Technical information
Effective resolution
4MP
Field of View
Horizontal, Vertical
Lens Type
Fixed
Maximum Frame Rate
30fps
Minimum Focal Length
5.50mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Optical Zoom
45.0x
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
100.00m
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
2688 x 1520
Environmental conditions
Maximum Operating Temperature
70°C
Minimum Operating Temperature
-40°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1/30,000 Second
Minimum Illumination
0.0010lux
Shortest Shutter Speed
1 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
13mm, 25mm, 50mm, 9mm
Maximum Focal Length
248.00mm
Maximum Thermal Focal Length
50.00mm
Network & communication
Remote Management
Yes
Physical characteristics
Form Factor
PTZ
Height
0.28m
Weight
9.00kg
Width
0.39m
Power description
Input Voltage
10-36V DC
Product information
Length
0.23m
Mount Type
Desktop Mount, Vehicle Mount
Storage
Storage Type
SD Card
Video
Analog Video Signal Format
CVBS (Composite Video Baseband Signal)
Maximum Resolution
2688 x 1520
Miscellaneous
Indoor or outdoor use
Indoor, Outdoor
Attributes
Input Voltage
10-36V DC
Weight
9.00kg
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | DHI-TPC-PT8641MA-TB9Z45V1-DC-IR-S22 |
| Product Series | Ultra |
| Product Type | PTZ Security Camera |
Technical information
| Effective resolution | 4MP |
|---|---|
| Field of View | Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 5.50mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Optical Zoom | 45.0x |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 100.00m |
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 2688 x 1520 |
|---|
Environmental conditions
| Maximum Operating Temperature | 70°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/30,000 Second |
|---|---|
| Minimum Illumination | 0.0010lux |
| Shortest Shutter Speed | 1 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 13mm, 25mm, 50mm, 9mm |
|---|---|
| Maximum Focal Length | 248.00mm |
| Maximum Thermal Focal Length | 50.00mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Form Factor | PTZ |
|---|---|
| Height | 0.28m |
| Weight | 9.00kg |
| Width | 0.39m |
Power description
| Input Voltage | 10-36V DC |
|---|
Product information
| Length | 0.23m |
|---|---|
| Mount Type | Desktop Mount, Vehicle Mount |
Storage
| Storage Type | SD Card |
|---|
Video
| Analog Video Signal Format | CVBS (Composite Video Baseband Signal) |
|---|---|
| Maximum Resolution | 2688 x 1520 |
Miscellaneous
| Indoor or outdoor use | Indoor, Outdoor |
|---|
Attributes
| Input Voltage | 10-36V DC |
|---|---|
| Weight | 9.00kg |
