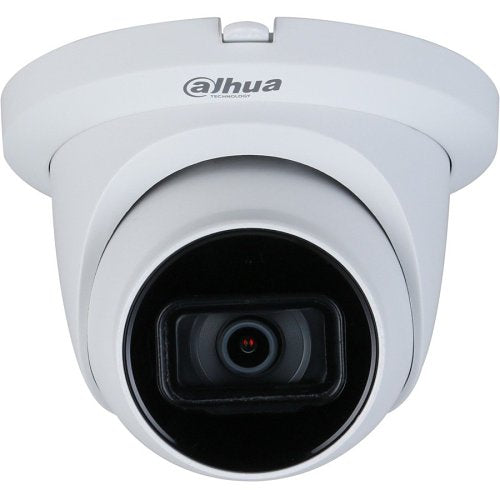

Dahua Technology DH-HAC-HDW1500TLMQP-A-0280B-S2 turret camera, 5MP

Dahua Technology DH-HAC-HDW1500TLMQP-A-0280B-S2 is a turret camera from the Lite range.

Experience 5MP full HD video and the simplicity of using existing cabling infrastructure with HDCVI. The Lite series 5MP HDCVI camera features a compact design and offers high-quality images at an affordable price. It offers various motorised/fixed lens models with a multi-language OSD and HD/SD switchable output.

Its structural flexibility and high cost-performance make the camera an ideal choice for SMB solutions. Functions | 4 Signals over 1 Coaxial Cable

HDCVI technology supports 4 signals transmitted over 1 coaxial cable simultaneously, i.e. video, audio, data and power. Dual-way data transmission allows the HDCVI camera to interact with the XVR, such as sending control signals or triggering alarms. Moreover, HDCVI technology supports PoC for construction flexibility.

Easy Installation

The HDCVI quick-to-install eyeball adopts a quick-to-install pedestal, enabling easier installation than conventional eyeballs. Quick-to-install cameras reduce time and labour costs. Long Distance Transmission

HDCVI technology guarantees real-time transmission over long distances without any loss. It supports up to 700 m for 5MP HD video through coaxial cable, and up to 300 m through UTP cable. Simplicity

HDCVI technology inherits the simplicity of traditional analogue surveillance systems, making it the best choice for investment protection. The HDCVI system can seamlessly upgrade traditional analogue systems without replacing existing coaxial cabling. The plug-and-play approach enables full HD video surveillance without the hassle of network configuration.

Smart IR

The camera is designed with IR LED illumination for optimal low-light performance. Smart IR is a technology that ensures brightness uniformity in B/W images under low illumination. Dahua's unique Smart IR adjusts the intensity of the camera's infrared LEDs to compensate for object distance and prevents IR LEDs from overexposing images as the object approaches the camera.

Multi-formats

The camera supports multiple video formats including HDCVI, CVBS and two other common HD analogue formats on the market. The four formats can be switched via the OSD menu. This feature makes the camera compatible with most end users' existing HD/SD DVRs.

Multi-language OSD

The OSD menu provides multiple image adjustments and function settings to meet the requirements of different monitoring scenarios. The OSD menu includes configurations such as backlight mode, day/night, white balance, privacy mask and motion detection. The camera supports 11 languages for the OSD menu: Chinese, English, French, German, Spanish, Portuguese, Italian, Japanese, Korean, Russian and Polish.

Key features

• Max 25 fpsat 5MP (16:9 video output)
• Quick-to-install eyeball saves installation time
• CVI/CVBS/AHD/TVI switchable
• 3.6 mm fixed lens (2.8 mm optional)
• Built-in mic(-A)
• Max. IR length 30 m, Smart IR
• IP67, DC12V

If you are matching this to an existing installation, work from the DH-HAC-HDW1500TLMQP-A-0280B-S2 part number rather than the description.
