Dantech Electronic Engineering DA343CS door guard, Mild Steel
About this product
Please note: this is a non-returnable item (excluding faulty goods)

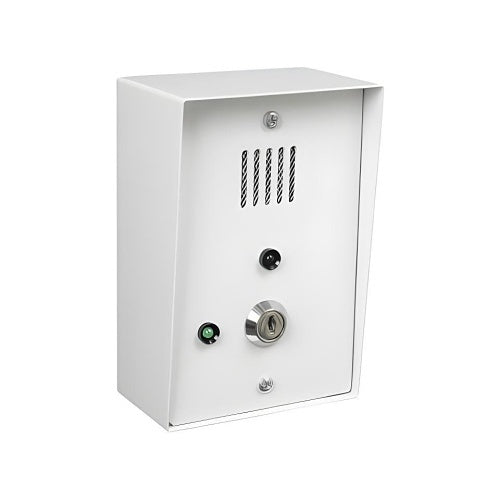

Dantech Electronic Engineering DA343CS is a door guard.
Designed to give an audible and visual indication if a door is opened, such as a fire exit door or security cage. These units have one green LED, one red LED, a built-in key operated switch and an internal sounder. There is an alarm relay output which can be connected to a conventional alarm control panel.
This output is shunted when the key switch is turned. It also has an additional relay output, which operates whilst the unit is shunted, to enable remote monitoring of the unit.
Key features
- Surface-mounting
- Common keyed
- No sound on shunt
- Alarm and Shunt SPCO relay contacts
- Tamper switch
- Typical uses include fire exit monitoring and with 12V operation, these are also ideal for security cages
- The DA343 range is available common or random keyed and with or without audible shunt indication
If you are matching this to an existing installation, work from the DA343CS part number rather than the description.
Specifications
Physical characteristics
Power description
Attributes
Specifications
| Brand Name | Dantech Electronic Engineering |
|---|---|
| Manufacturer Part Number | DA343CS |
Physical characteristics
| Height | 150.00mm |
|---|---|
| Material | Mild Steel |
| Width | 100.00mm |
Power description
| Input Voltage | 12V DC |
|---|
Attributes
| Input Voltage | 12V DC |
|---|
Dantech Electronic Engineering DA343CS door guard, Mild Steel
