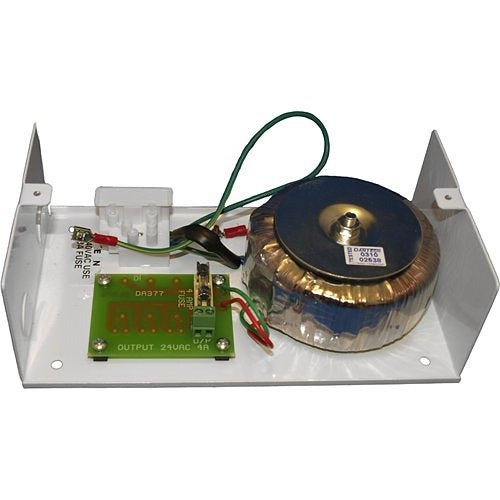

Dantech Electronic Engineering DA377 power supply, Enclosure
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dantech Electronic Engineering DA377 is a power supply.
This simple range of multipurpose power supplies is available metal cased or within an IP66 weather resistant enclosure. They provide 4A of 24V AC via individually fused outputs. It is ideal for where high reliability is required and where companies may have service or maintenance contracts for long periods of time.
These power supplies accept a standard mains voltage input of 230V AC at 50Hz (+/- 10%) (or 110V, model dependant) and will provide a total output of 4A at 24V AC. Typical uses include powering CCTV cameras and camera housing heaters.
Key features
- One 4A 24V AC fused output
- Mild steel powder-coated enclosures
- Includes a " spares-bag" mounting kit
- Input 230V AC @ 50Hz (+/- 10%)
If you are matching this to an existing installation, work from the DA377 part number rather than the description.
Specifications
Technical information
Physical characteristics
Power description
Attributes
Specifications
| Brand Name | Dantech Electronic Engineering |
|---|---|
| Manufacturer Part Number | DA377 |
| Product Type | Power Supply |
Technical information
| Amperage | 4.00A |
|---|---|
| Output Voltage | 24V AC |
Physical characteristics
| Depth | 70.00mm |
|---|---|
| Form Factor | Enclosure |
| Height | 200.00mm |
| Width | 118.00mm |
Power description
| Input Voltage | 230V AC |
|---|---|
| Output Current | 4.0000A |
Attributes
| Amperage | 4.00A |
|---|---|
| Input Voltage | 230V AC |
| Output Current | 4.0000A |
| Output Voltage | 24V AC |
