Dantech Electronic Engineering DA391 power supply
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dantech Electronic Engineering DA391 is a power supply.

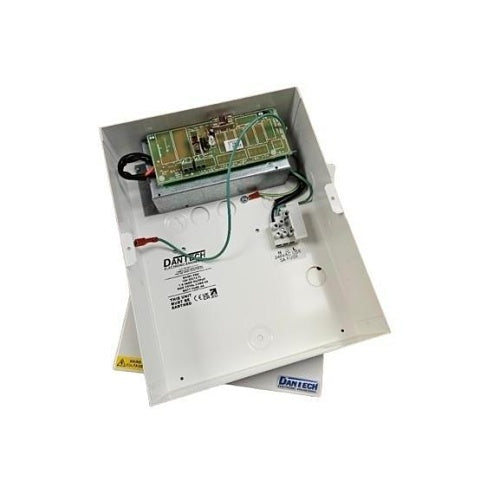

This simple range of multi-purpose metal-cased power supplies provides 4A of 13.7VDC via individually fused outputs, for 12VDC equipment. The enclosure can also house a 7Ah VRLA battery, which the power supply will automatically charge while mains power is present, and use in the event of a mains power loss. Manufactured and tested in Britain.
Typical uses include powering door access controllers, electronic door releases, magnetic locks and CCTV cameras.
Key features
- Single 4A 12VDC fused output
- Integrated UPS battery back-up function
- Mild steel powder-coated enclosures
- Includes a spares-bag mounting kit
If you are matching this to an existing installation, work from the DA391 part number rather than the description.
Specifications
Technical information
Certifications
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | Dantech Electronic Engineering |
|---|---|
| Manufacturer Part Number | DA391 |
| Product Type | Power Supply |
Technical information
| Output Voltage | 12V DC |
|---|
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE compliance | Out of Scope |
Physical characteristics
| Depth | 80.00mm |
|---|---|
| Height | 270.00mm |
| Width | 210.00mm |
Power description
| Input Voltage | 100-240V AC |
|---|---|
| Output Current | 4.0000A |
Miscellaneous
| Environmental certification | CE |
|---|
Attributes
| Environmental status | Yes |
|---|---|
| Input Voltage | 100-240V AC |
| Output Current | 4.0000A |
| Output Voltage | 12V DC |
