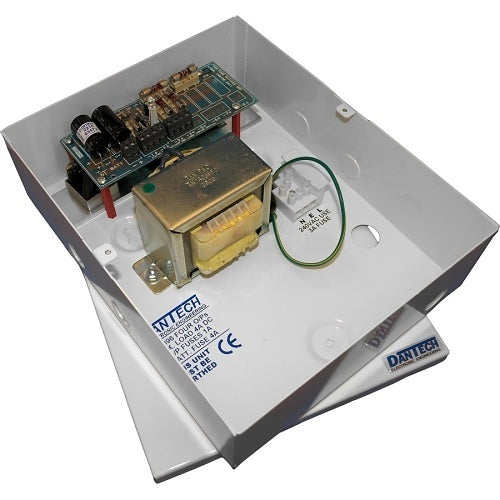

Dantech Electronic Engineering DA396 power supply, Enclosure
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dantech Electronic Engineering DA396 is a power supply from the DA range.
DA396: Steel-cased 4x 1A 12V DC power supply with integrated UPS
This simple range of multi-purpose metal-cased power supplies provides 4A of 13.7V DC via individually fused outputs, for 12V DC equipment. The enclosure can also house a 7Ah VRLA battery, which the power supply will automatically charge while mains power is present, and use in the event of a mains power loss. It is ideal for where high reliability is required and where companies may have long service or maintenance contracts.
Typical uses include powering door access controllers, electronic door releases, magnetic locks and CCTV cameras. 4x 1A individually fused outputs
Each of the outputs can provide 12V 1A DC continuously and is protected with a quick-blow 1A glass fuse. Integrated UPS battery back-up function
A 7Ah VRLA battery can be placed in the mild steel enclosure and connected to the battery terminals of the PCB. This power supply will automatically float-charge the battery to capacity, providing continuous uninterrupted power from the battery if mains power is unavailable. Mild steel powder-coated enclosures
Precision-made from mild steel and powder-coated white for an easy-clean, durable finish, this enclosure is ideal for wall mounting. The enclosure includes 'knock-outs' for cable gland entries. Includes a spares-bag mounting kit
Each unit includes a spares-bag for the installation engineer. This kit contains useful items, such as cable glands, wall plugs and fixing screws. Input 230V AC @ 50Hz (+/- 10%)
Designed to operate on UK standard mains power, this unit will accept a mains-powered input of 230V AC @ 50Hz (+/- 10%)
Key features
- 4x 1A individually fused outputs
- Integrated UPS battery back-up function
- Mild steel powder-coated enclosures
- Includes a spares-bag mounting kit
- Input 230V AC @ 50Hz (+/- 10%)
If you are matching this to an existing installation, work from the DA396 part number rather than the description.
Specifications
Technical information
Certifications
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | Dantech Electronic Engineering |
|---|---|
| Manufacturer Part Number | DA396 |
| Product Series | DA |
| Product Type | Power Supply |
Technical information
| Amperage | 4.00A |
|---|---|
| Output Voltage | 12V DC |
Certifications
| Certifications & Standards | BS1362 |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Depth | 80.00mm |
| Form Factor | Enclosure |
| Height | 260.00mm |
| Weight | 3.63kg |
| Width | 210.00mm |
Power description
| Input Voltage | 230V AC |
|---|---|
| Output Current | 4.0000A |
Miscellaneous
| Compatibility | CCTV cameras |
|---|
Attributes
| Amperage | 4.00A |
|---|---|
| Compatibility | CCTV cameras |
| Input Voltage | 230V AC |
| Output Current | 4.0000A |
| Output Voltage | 12V DC |
| Package Contents | DA396 Power Supply; Spares-Bag |
| Weight | 3.63kg |
