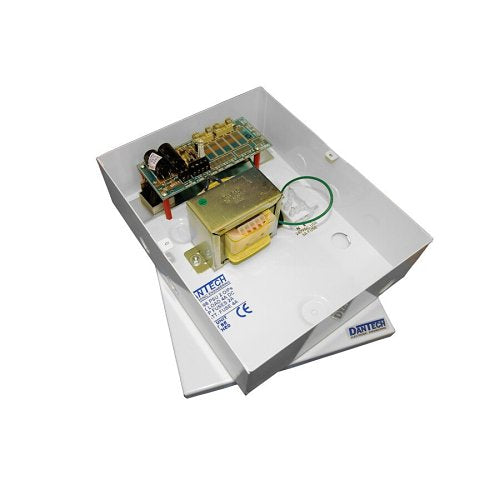

Dantech Electronic Engineering DA398 power supply, Enclosure
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dantech Electronic Engineering DA398 is a power supply.
DA398: Steel-cased 2x 2A 12V DC power supply with integrated UPS
This simple range of multi-purpose metal-cased power supplies provides 4A of 13.7V DC via individually fused outputs, for 12V DC equipment. The enclosure can also house a 7Ah VRLA battery, which the power supply will automatically charge while mains power is present, and use in the event of a mains power loss. It is ideal for where high reliability is required and where companies may have long service or maintenance contracts.
Typical uses include powering door access controllers, electronic door releases, magnetic locks and CCTV cameras. 2x 2A individually fused outputs
Each of the outputs can provide 12V 2A DC continuously and is protected with a quick-blow 2A glass fuse. Integrated UPS battery back-up function
A 7Ah VRLA battery can be placed in the mild steel enclosure and connected to the battery terminals of the PCB. This power supply will automatically float-charge the battery to capacity, providing continuous uninterrupted power from the battery if mains power is unavailable. Batteries are not included.
This unit can be used with or without batteries fitted. Mild steel powder-coated enclosures
Precision-made from mild steel and powder-coated white for an easy-clean, durable finish, this enclosure is ideal for wall mounting. The enclosure includes 'knock-outs' for cable gland entries. Includes a spares-bag mounting kit
Each unit includes a spares-bag for the installation engineer. This kit contains useful items, such as cable glands, wall plugs and fixing screws. Input 230V AC @ 50Hz (+/- 10%)
Designed to operate on UK standard mains power, this unit will accept a mains-powered input of 230V AC @ 50Hz (+/- 10%)
Key features
- 2 x 2A individually fused outputs
- Integrated UPS battery back-up function
- Mild steel powder-coated enclosures
- Includes a 'spares-bag' mounting kit
- Input 230V AC @ 50Hz (+/- 10%)
If you are matching this to an existing installation, work from the DA398 part number rather than the description.
Specifications
Technical information
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | Dantech Electronic Engineering |
|---|---|
| Manufacturer Part Number | DA398 |
| Product Type | Power Supply |
Technical information
| Amperage | 4.00A |
|---|---|
| Output Voltage | 12V DC |
Physical characteristics
| Colour | White |
|---|---|
| Depth | 80.00mm |
| Form Factor | Enclosure |
| Height | 260.00mm |
| Weight | 3.70kg |
| Width | 210.00mm |
Power description
| Input Voltage | 230V AC |
|---|---|
| Output Current | 4.0000A |
Miscellaneous
| Compatibility | Door Access Controller Electronic Door Release Magnetic Lock CCTV Camera |
|---|
Attributes
| Amperage | 4.00A |
|---|---|
| Compatibility | Door Access Controller; Electronic Door Release; Magnetic Lock; CCTV Camera |
| Input Voltage | 230V AC |
| Output Current | 4.0000A |
| Output Voltage | 12V DC |
| Package Contents | Steel-Cased 2x 2A 12V DC Power Supply with Integrated UPS; 'Spares-Bag' Mounting Kit |
| Weight | 3.70kg |
