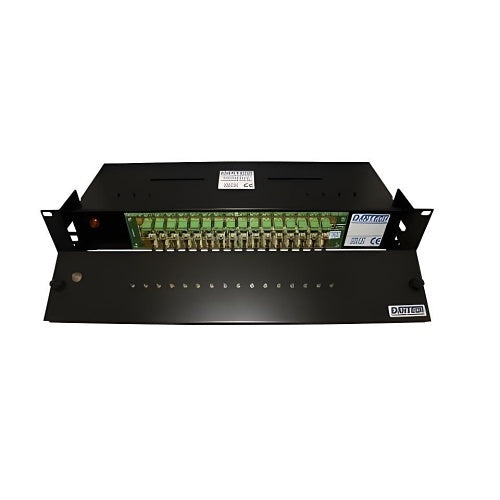

Dantech Electronic Engineering DA442/16 power supply
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dantech Electronic Engineering DA442/16 is a power supply.
Accepting a wide range of mains voltage input, from as little as 96V to 265V with frequencies of 47 to 63Hz, these units are suitable for deployment world-wide. Manufactured and tested in Britain.
Key features
- Sixteen 500mA 12VDC outputs
- Quick-blow glass output fuses
- Easy-to-see output status with front-mounted LEDs
- 19" 2U Rack mount mild steel enclosure
- Removable front plate with front-mounted outputs
- Mains input voltage range of 96V - 265VAC
- Made in Britain
If you are matching this to an existing installation, work from the DA442/16 part number rather than the description.
Specifications
Technical information
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | Dantech Electronic Engineering |
|---|---|
| Manufacturer Part Number | DA442/16 |
Technical information
| Output Voltage | 12V DC |
|---|
Physical characteristics
| Depth | 478.00mm |
|---|---|
| Height | 89.00mm |
| Width | 478.00mm |
Power description
| Input Voltage | 230V AC |
|---|---|
| Output Current | 500.0000mA |
Miscellaneous
| Environmental certification | CE |
|---|
Attributes
| Environmental status | Yes |
|---|---|
| Input Voltage | 230V AC |
| Output Current | 500.0000mA |
| Output Voltage | 12V DC |
