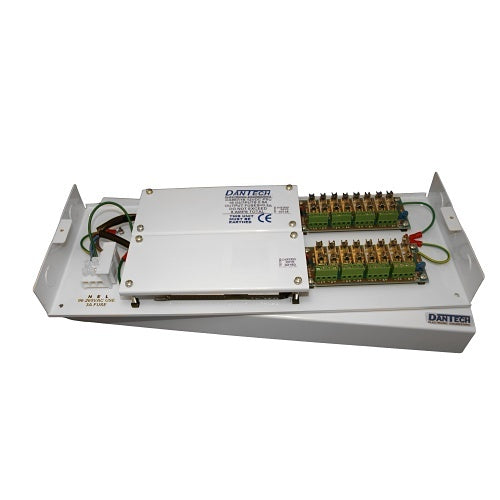

Dantech Electronic Engineering DA667/16 power supply
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dantech Electronic Engineering DA667/16 is a power supply.
These switched-mode power supplies can accept a wide range of mains voltage from as little as 90V to 270V with frequencies of 47 to 63Hz. These units will provide a regulated output of 12VDC up to 8A total via individually fused outputs. Manufactured and tested in Britain.
These units are intended for use with CCTV cameras. However, they are multi-purpose and can be used in a range of security applications.
Key features
- Sixteen 12VDC 500mA fused outputs
- Mild steel powder-coated enclosures
- Includes a spares-bag mounting kit
If you are matching this to an existing installation, work from the DA667/16 part number rather than the description.
Specifications
Technical information
Certifications
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | Dantech Electronic Engineering |
|---|---|
| Manufacturer Part Number | DA667/16 |
| Product Type | Power Supply |
Technical information
| Output Voltage | 12V DC |
|---|
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE compliance | Out of Scope |
Physical characteristics
| Depth | 40.00mm |
|---|---|
| Height | 155.00mm |
| Width | 400.00mm |
Power description
| Input Voltage | 96-265V AC |
|---|---|
| Output Current | 500.0000mA |
Miscellaneous
| Environmental certification | CE |
|---|
Attributes
| Environmental status | Yes |
|---|---|
| Input Voltage | 96-265V AC |
| Output Current | 500.0000mA |
| Output Voltage | 12V DC |
