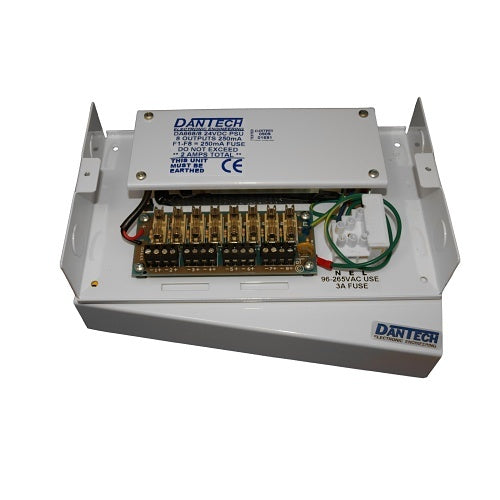

Dantech Electronic Engineering DA668/8 power supply
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dantech Electronic Engineering DA668/8 is a power supply.
These switched-mode power supplies can accept a wide range of mains voltage from as little as 90V to 270V with frequencies of 47 to 63Hz. These units will provide a regulated output of 24VDC up to 1A total via eight individually fused 250mA outputs. Manufactured and tested in Britain.
These units are intended for use with CCTV cameras. However, they are multi-purpose and can be used in a range of security applications.
Key features
- Eight 24VDC 250mA individually fused outputs
- Mild steel powder-coated enclosures
- Includes a spares-bag mounting kit
If you are matching this to an existing installation, work from the DA668/8 part number rather than the description.
Specifications
Technical information
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | Dantech Electronic Engineering |
|---|---|
| Manufacturer Part Number | DA668/8 |
Technical information
| Output Voltage | 24V AC |
|---|
Physical characteristics
| Depth | 40.00mm |
|---|---|
| Height | 145.00mm |
| Width | 230.00mm |
Power description
| Input Voltage | 96-265V AC |
|---|---|
| Output Current | 250.0000mA |
Miscellaneous
| Environmental certification | CE |
|---|
Attributes
| Environmental status | Yes |
|---|---|
| Input Voltage | 96-265V AC |
| Output Current | 250.0000mA |
| Output Voltage | 24V AC |
