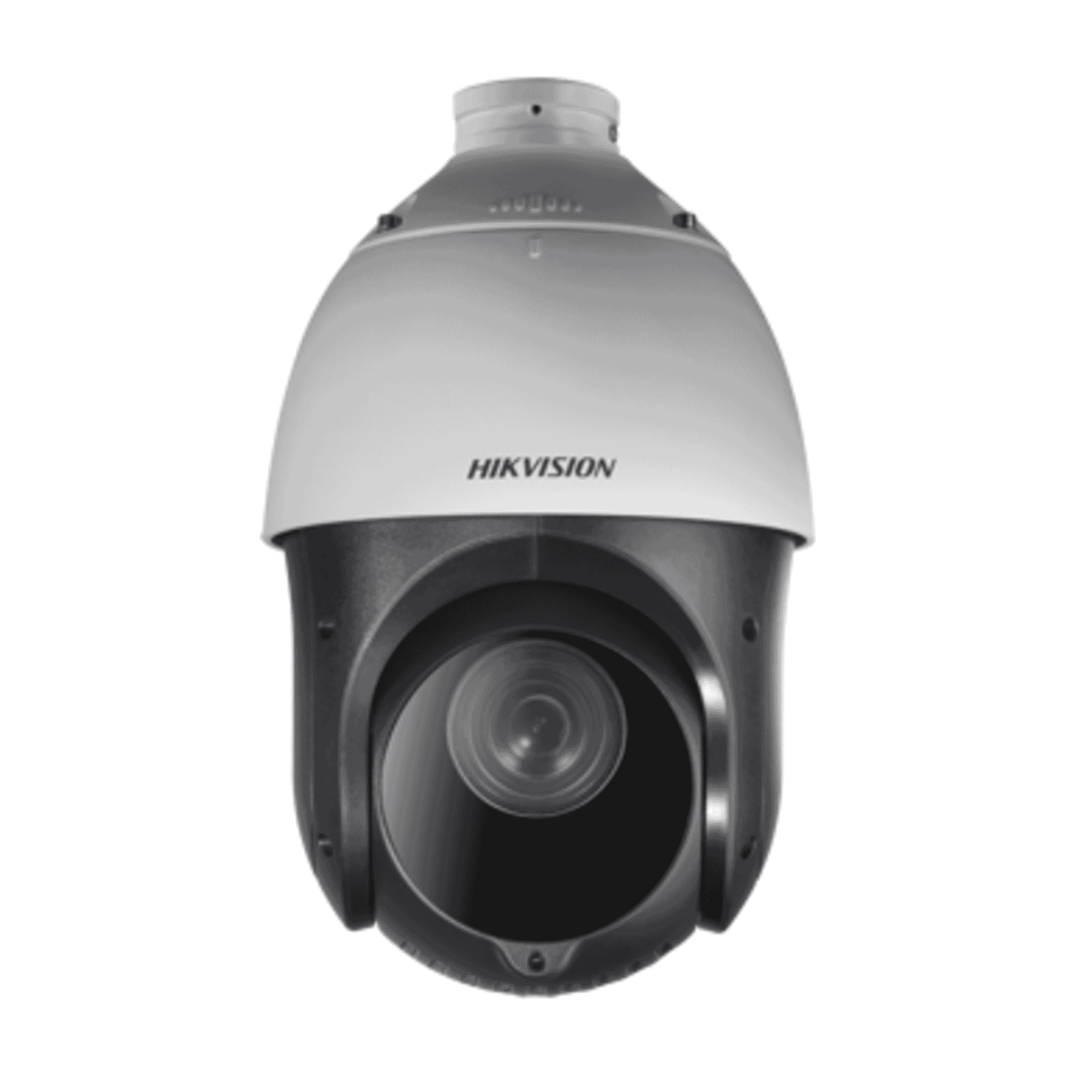

DS-2AE4215TI-D(E) 2MP Analogue PTZ Speed Dome, 15× Optical, 100m IR, IP66

Introduction to the DS-2AE4215TI‑D(E) and its key features

The DS-2AE4215TI‑D(E) is a purpose-built analogue PTZ (speed dome) camera designed for robust outdoor surveillance. Combining Full HD 2 MP resolution, a 15× optical zoom lens and long-range IR illumination up to 100 m, this compact 4-inch dome delivers reliable image capture for perimeter, car park and site monitoring. Ruggedised to IP66 with built-in surge (TVS) protection and wide operating temperature tolerance, it is aimed at installers and organisations seeking a cost-effective, high-performance analogue PTZ solution.

Detailed specifications and the benefits they bring

Understanding the key specifications helps explain why the DS-2AE4215TI‑D(E) is well suited to many outdoor security tasks. Below is a concise breakdown of the most important features and the practical benefits they provide.

• Resolution:2 MP (1920 × 1080) at 25/30 fps — delivers clear, Full HD video that is adequate for identification and evidence recording while remaining compatible with existing analogue infrastructure.
• Image sensor:1/2.8" progressive‑scan CMOS — yields sharper motion capture and better detail compared with older interlaced sensors.
• Minimum illumination:Colour 0.005 lux (F1.6, AGC on), B/W 0.001 lux, and 0 lux with IR — excellent low-light sensitivity means improved daytime and nighttime visibility, with the IR system providing total darkness imaging when needed.
• Image enhancements:DWDR (≥120 dB), 3D DNR, BLC/HLC and EIS — these features stabilise the image in varying lighting, reduce noise in low light and help retain detail in high-contrast scenes.

• Lens & zoom:5–75 mm (15× optical) with 16× digital — the 15× optical range (horizontal FOV 53.8°–4.0°) allows operators to zoom from wide-area coverage down to close inspection of distant targets without significant loss of clarity.
• IR illumination:Up to 100 m with auto‑adjusting intensity — long-range IR combined with auto intensity control maintains a usable exposure as the camera zooms, which is vital for clear night-time identification at distance.

• Pan & tilt:360° continuous pan and −15° to 90° tilt (auto flip) — full navigation freedom for continuous tracking and full-area coverage.
• Presets and patrols:256 presets, 10 patrols and 5 patterns (up to 32 presets each) — enables automated, repeatable monitoring routines and quick recall to points of interest.
• Speed:Pan preset speed up to 80°/s — fast repositioning to respond to incidents in real time.

• Outputs & control:Switchable Turbo HD (HD‑TVI/AHD/CVI) and CVBS outputs, RS‑485 control with Hikvision, Pelco‑P and Pelco‑D protocols — offers compatibility with a wide range of analogue recorders and control systems.
• Power:12 V DC; max 20 W (IR ≈ 7 W) — modest power requirements simplify installation; ensure supply meets peak current draw.
• Environmental protection:IP66 ingress protection; TVS 4,000 V surge protection; operating −30 °C to 65 °C; humidity ≤ 90% non‑condensing — built to endure adverse weather and protect against electrical transients, making it suitable for exposed outdoor sites.
• Form factor:Ø164.5 × 295 mm, approx. 2.0 kg — compact and easy to mount on walls, poles or specialist brackets.

Use cases and scenarios where this PTZ excels

The DS-2AE4215TI‑D(E) is particularly strong in contexts where long-range observation, robust weatherproofing and simple analogue integration are priorities. Typical use cases include:

• Perimeter and fence-line surveillance:The combination of 15× optical zoom and 100 m IR provides effective long-distance detection and identification for industrial sites, substations and secure compounds.
• Car parks and loading yards:PTZ presets and patrols allow automated sweeps of vehicle bays and entrances, while the wide temperature range and IP66 rating handle outdoor exposure.
• Warehouses and logistics hubs:Where wide coverage and occasional close inspection of distant areas or license plates is required, the zoom and image enhancements maintain usable footage throughout varied lighting conditions.
• Construction sites & temporary installations:The analogue outputs and RS‑485 control make the camera easy to integrate into temporary or phased security installations where simplicity and reliability matter.
• Upgrades from legacy systems:For organisations replacing CVBS-only cameras, the Turbo HD output lets you keep coax cabling while moving to 1080p performance.

Comparisons with similar products on the market

When evaluating the DS-2AE4215TI‑D(E), it helps to compare it across several axes: resolution and image quality, zoom range, night-time performance, durability and compatibility with existing systems.

• Analogue vs IP PTZ cameras:IP PTZs often offer higher resolutions (4K), advanced analytics and PoE convenience, but they typically cost more and may require network infrastructure upgrades. The DS-2AE4215TI‑D(E) is attractive where existing coaxial cabling is to be retained or budgets favour analogue solutions while still achieving 1080p video.
• Compared with other 2 MP analogue PTZs:A 15× optical zoom and 100 m IR place this unit squarely in the mid-to-upper tier of analogue PTZs. Competitors with 20× or 30× zoom offer longer optical reach but often at higher cost and with larger housings. For many applications, 15× provides the best balance of size, cost and performance.
• Durability and surge protection:The combination of IP66 rating and TVS 4,000 V protection is a meaningful advantage for outdoor sites prone to electrical transients. Some rival models may have similar ingress ratings but lack robust internal surge protection, requiring additional external components.
• Integration flexibility:The switchable Turbo HD/CVBS outputs and support for common RS‑485 protocols make it straightforward to integrate the DS‑2AE4215TI‑D(E) into diverse control and recording environments, which is a practical edge over proprietary-only devices.

Installation notes, compliance and practical considerations

For reliable operation, follow best-practice installation guidelines: use a qualified technician for mounting and power wiring, ensure a stable 12 V DC supply sized for the camera's peak draw (max 20 W), and provide correct earthing and any additional external surge protection in lightning-prone regions. The datasheet supplied does not list certification details (CE/UKCA); confirm required certifications with your supplier prior to procurement if regulatory compliance is necessary for your project.

Conclusion: why the DS-2AE4215TI‑D(E) is a strong choice

The DS-2AE4215TI‑D(E) delivers a compelling mix of Full HD image quality, 15× optical zoom, long-range IR and rugged outdoor protection at a competitive price point. It is particularly well suited to organisations that need dependable, long-range analogue PTZ performance without the complexity or expense of a full IP upgrade. Its flexible output options and familiar RS‑485 control protocols make it straightforward to integrate into existing systems, while the PTZ automation features support patrols and rapid response to incidents.

In short, if your project requires a durable, mid-range analogue PTZ with effective night-time capability and long-distance zoom—especially where retaining coax infrastructure is desirable—the DS-2AE4215TI‑D(E) is a practical and cost-conscious choice. Always verify certification and installation requirements with your supplier and consider on-site demonstrations where possible to ensure the camera meets your specific operational needs.
