DS-2CD2126G2-IMS (2.8mm) 2MP Fixed Vandal Dome, HDMI & PoE

Introduction to the DS-2CD2126G2-IMS (2.8mm) 2MP Fixed Vandal Dome

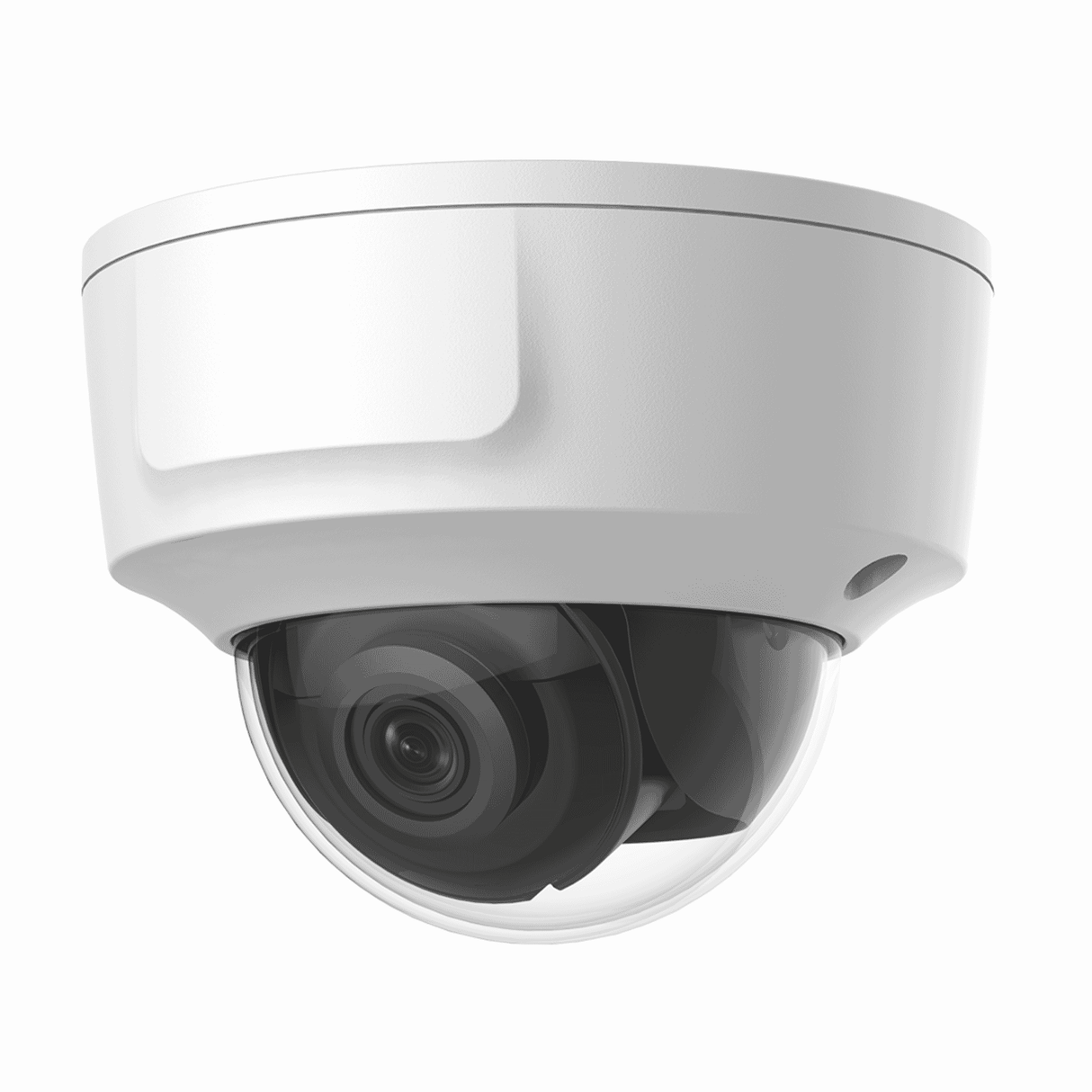

The DS-2CD2126G2-IMS (2.8mm) is a compact, metal‑housed IP dome camera designed for locations that require a combination of image quality, robustness and flexible monitoring options. With a 2 MP (1920 × 1080) progressive CMOS sensor, built‑in IR illumination, 120 dB True WDR and an uncommon direct HDMI output for local live view, this model targets both small business and enterprise environments where vandal resistance and clear analytics are important.

Key features at a glance

• 2 MP resolution:1920 × 1080 at up to 25/30 fps for smooth, detailed video.
• Direct HDMI output:HDMI Type D port for local live monitoring at 1080p/720p without requiring a PC or NVR playback.
• Efficient compression:H.265/H.264 (and optimized H.265+/H.264+) to reduce bandwidth and storage needs.
• True WDR 120 dB:Handles high‑contrast scenes like entrances with bright backgrounds and shadowed foregrounds.
• IR illumination up to 30 m:850 nm smart supplement light for low‑light or no‑light environments.
• Vandal‑resistant metal dome (IK10):Durable housing suitable for areas at risk of tampering.
• PoE and 12 VDC power:Flexible installation via PoE (802.3af) or a local 12 VDC supply.
• Smart analytics:Face capture and perimeter protection features such as line crossing and intrusion detection.

Detailed specifications and benefits

• Sensor and resolution:1/2.8" progressive scan CMOS delivering full HD (2 MP). The progressive sensor helps preserve image clarity for moving subjects, which is important for both identification and analytics.
• Fixed lens:2.8 mm, F1.4 (M12 mount) with a horizontal field of view of approximately 106°. This wide angle is ideal for capturing broad scenes such as shop floors, lobbies and corridors without many blind spots.
• Minimum illumination:Colour sensitivity down to 0.002 lux (with AGC) and full black‑and‑white visibility with IR. In practical terms the camera performs well in dim indoor lighting and switches to IR mode for complete darkness.

• Compression & streams:H.265/H.264 (and + variants) reduce bandwidth and storage costs compared with older codecs. The camera supports multiple streams (main/sub/third) so you can optimize network usage for live monitoring vs. recording.
• True WDR 120 dB:Excellent for scenes with strong backlighting—entrances with sunlight, store windows, or scenes with bright displays—allowing more usable detail in both highlights and shadows.
• Onboard storage:microSD support up to 512 GB with ANR (Automatic Network Replenishment). ANR ensures video is stored locally during network outages and then synced back to the recorder when the connection is restored.

• HDMI output:A notable feature is the built‑in HDMI Type D female connector that supports 1080p/720p local live view. This makes it straightforward to connect a display locally for real‑time monitoring without additional hardware.
• Network:1 × RJ45 10/100 Mbps network port; ONVIF and standard Hikvision protocols are supported for integration with a wide range of NVRs and VMS platforms.
• Audio & alarm I/O:Mono audio input and output plus 1 alarm input and 1 alarm output (max 12 VDC, 30 mA) enable two‑way audio and integration with external sensors or sirens.
• Power options:PoE (IEEE 802.3af Class 3) or 12 VDC; both options make installation flexible for retrofit or new builds. Typical power consumption is low (approx. 7.2 W on 12 VDC and 8.5 W on PoE), helping minimize operating costs.

• Vandal resistance:Metal housing rated IK10 to withstand deliberate impact, making it suitable for exposed indoor or sheltered exterior locations.
• Dimensions & weight:At roughly Ø 119 mm × 90 mm and about 440 g, the dome is compact and unobtrusive.
• Operating environment:Designed for typical indoor commercial temperatures (−10 °C to 40 °C) and up to 95% non‑condensing humidity. For outdoor exposed installations verify local climate suitability with the official datasheet.

Use cases and scenarios where the camera excels

• Retail stores and boutiques:The wide 2.8 mm field of view and 2 MP resolution provide coverage of sales floors, cashiers and aisles. WDR helps capture faces even when storefront windows create bright backlight, and face capture analytics support loss prevention workflows.
• Reception areas and lobbies:The unobtrusive dome appearance combined with HDMI local monitoring makes it easy for security desks to display a live feed without a networked PC. PoE simplifies wiring in modern office installations.
• Corridors and entrances:Perimeter protection features (line crossing, intrusion) are useful for automated alerts when people cross designated virtual lines or enter restricted zones. The IK10 housing helps protect cameras in busy public areas.
• External sheltered entrances:While not a fully weatherproof outdoor bullet, this dome is suitable for sheltered external doors and porches where vandal resistance and IR night vision up to 30 m are valuable.
• SMB and DIY installations:The combination of PoE, HDMI, and microSD recording makes it attractive to small businesses and informed DIY installers who want flexible monitoring options without immediately committing to an NVR.

How it compares with similar products

Within the 2 MP fixed dome category the DS-2CD2126G2-IMS stands out for a few reasons:

• HDMI output:Few compact IP domes include a direct HDMI port for local live viewing. This is an advantage where a simple monitor is needed at a reception desk or checkpoint.
• Vandal resistance and IR range:IK10 and up to 30 m IR place it alongside more rugged models, offering better durability and night coverage than many budget domes that sacrifice housing or IR performance.
• Smart analytics:Face capture and perimeter protection are increasingly common, but bundled analytics in a camera at this price point are a differentiator compared with bare‑bones models that only record video.
• Compression efficiency:Support for H.265 and the manufacturer’s optimized codecs (H.265+/H.264+) helps reduce storage and bandwidth compared with older H.264‑only cameras.

Considerations versus higher‑end alternatives: If you need multi‑megapixel resolution (4K), advanced low‑light color imaging, full weatherproof IP66/IP67 ratings or built‑in edge‑AI beyond face/perimeter features, a higher‑tier model will be more suitable. Conversely, compared with very low‑cost generic domes, this camera offers stronger build quality, analytics and integration capabilities.

Installation, compliance and practical tips

• Integration:The camera supports standard protocols for use with most NVRs and VMS platforms; confirm ONVIF or vendor protocol support with your recorder to ensure full compatibility.
• Power choices:Use PoE where possible to simplify wiring. If using 12 VDC, follow local electrical codes and have a qualified installer perform power connections.
• Compliance and markings:The provided product record did not include confirmed CE/UKCA markings. Check the official datasheet or product packaging for regulatory approvals required in your region before purchase and installation.
• Placement:For best analytics performance, mount the camera to get a clear view of faces and primary movement corridors; avoid extreme angles that reduce face capture accuracy.

Conclusion — why choose the DS-2CD2126G2-IMS?

The DS-2CD2126G2-IMS (2.8mm) offers a compelling mix of affordability, practical features and durability for many common surveillance scenarios. Its 2 MP sensor delivers clear Full HD video, while 120 dB True WDR and 30 m IR ensure useful images in challenging lighting. The metal IK10 dome and flexible power options (PoE or 12 VDC) make installation straightforward in retail, reception and sheltered exterior locations. The unique inclusion of a direct HDMI output is particularly valuable for setups that require local real‑time viewing without an NVR or PC. For projects that need a reliable, rugged and analytics‑enabled camera without moving to premium multi‑megapixel models, the DS-2CD2126G2-IMS represents a balanced choice.

Before purchasing, confirm regulatory compliance and warranty details with the supplier, verify compatibility with your recorder or VMS, and consider a site survey to place cameras for optimal coverage and analytics performance.
