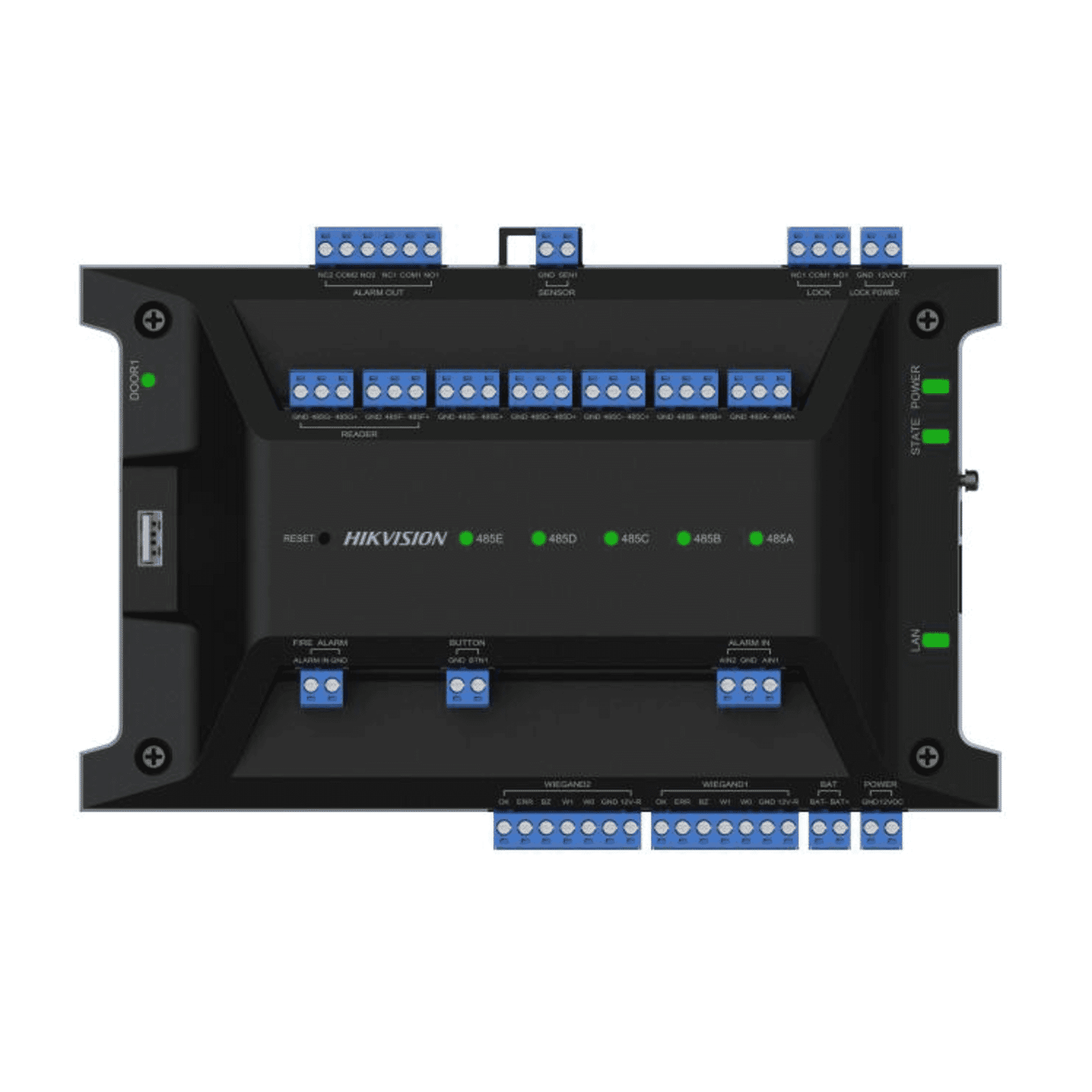

DS-K2701X(P)(O-STD) Ultra 1-Door Access Controller, Expandable to 125 Doors

Introduction to the DS-K2701X(P)(O-STD) Ultra 1‑Door Access Controller

The DS-K2701X(P)(O-STD) Ultra Series is a professional-grade 1‑door (bidirectional) access controller designed for commercial and enterprise access‑control installations. Built with expansion and reliability in mind, this controller can serve as a powerful building block for medium to large access deployments. With support for up to 62 remote expansion modules (distributed control up to 125 doors), large user and event capacities, and multiple communication redundancies, the DS-K2701X is ideal for system integrators, security managers and IT teams who need a resilient, scalable access solution.

Warranty coverage and variant details should be confirmed with the vendor at time of purchase.

• Expandable architecture:Base 1‑door controller expandable to manage up to 125 doors with DS-K2M002X modules.
• High capacity:Stores up to 100,000 users, 200,000 cards and up to 600,000 events (plus biometric support for up to 10,000 fingerprints where used).
• Flexible reader interfaces:Supports 2 × RS‑485 (OSDP) or 2 × Wiegand (26/34) reader inputs and 5 RS‑485 downlink channels with redundancy and dual‑bus loop capability.
• Onboard I/O:Lock relay, exit button input, door contact, tamper input, fire alarm interface and alarm inputs/outputs, plus USB 2.0 for local operations.
• Management & integration:Web UI for configuration and remote management; integrates with Hikvision platforms such as HikCentral and Hik‑Connect.
• Power options:Variants with internal PSU (100–240 VAC) or panel 12 VDC input; some variants support battery charge/discharge management.

Detailed specifications and benefits

The DS-K2701X family offers a combination of capacity, flexible communications and robust I/O that brings operational and deployment benefits. Below are the most relevant technical details and what they mean in practice.

• Model family:DS-K2701X (variants include DS-K2701X, DS-K2701X(P), DS-K2701X(O‑STD)).
• Doors supported:Native 1 door (bidirectional); expandable to 125 doors using DS-K2M002X modules.
• User & credential capacity:Up to 100,000 users and 200,000 cards; fingerprint support up to 10,000 records when biometrics are employed.
• Event logging:Local storage up to 600,000 events, enabling long retention of access logs even during network outages.
• Network & connectivity:1 × RJ45 (auto MDI/MDIX) 10/100/1000 Mbps port; 2 × RS‑485 (OSDP) or 2 × Wiegand reader inputs; 5 downlink RS‑485 channels with redundancy and dual isolated bus loops.
• I/O & alarm interfaces:Lock relay, exit button input, door contact, tamper input, fire alarm interface, typically 2 alarm inputs and 2 alarm outputs (variant dependent), plus 1 × USB 2.0.
• Power & dimensions:Variants: panel 12 VDC input or O‑STD boxed version with internal 100–240 VAC PSU. Typical maximum power consumption ≤ 42 W; boxed dimensions approximately 360 × 345 × 88 mm (variant dependent).
• Operating conditions & compliance:Commonly rated for −10 °C to +55 °C (some listings broader); humidity 0–90% RH non‑condensing. CE / FCC / CB referenced by resellers — verify marks per market.

• Scalability:The ability to expand from a single door to 125 doors makes this controller future‑proof for phased rollout projects or campus expansions.
• High capacity storage:Large user, card and event capacities reduce the need for frequent data archiving and simplify centralised management.
• Redundancy and resilience:Multiple RS‑485 channels with redundancy and dual bus loops increase communication stability between the controller and expansion modules—critical for uptime in enterprise settings.
• Integration & remote management:Built‑in web UI and compatibility with HikCentral/Hik‑Connect allow remote configuration, monitoring and event review without onsite intervention.
• Flexible power options:Choose a boxed variant with internal PSU for simpler installs or a panel‑powered variant for rack/panel environments; some versions include battery management features for backup scenarios.

Use cases and scenarios where the DS-K2701X excels

This controller is designed for installers and end users who need reliable, scalable access control across varied environments. Typical deployments include:

Enterprises that plan phased installations across multiple buildings benefit from the DS-K2701X’s expandability. Start with critical entry points and add DS‑K2M002X modules as additional doors are brought online—while retaining centralized user and event management.

Property managers can use the high card and user capacity to manage tenants, contractors and visitors without frequent reconfiguration. Integration with building management systems via HikCentral simplifies access scheduling, visitor workflows and audit trails.

Schools, universities and hospitals often require high user counts, robust logging and redundancy. The controller’s large event memory and RS‑485 redundancy help maintain consistent access control across busy, mission‑critical doors.

Environments that demand reliable operation and clear audit trails—manufacturing sites, data centers and utility substations—benefit from the device’s tamper inputs, fire alarm interface and redundant communication design.

Comparisons with similar products in the market

When selecting a 1‑door controller, consider capacity, expansion strategy, communication options and ecosystem integration. Here’s how the DS-K2701X compares on those axes:

• Vs. smaller standalone controllers:Many entry‑level controllers are limited to a few thousand users and limited expansion paths. The DS‑K2701X’s 100k user and 200k card capacities and support for up to 125 doors place it well above entry models for larger installations.
• Vs. competitor enterprise controllers:Some enterprise controllers from other vendors offer similar capacities, but differences often arise in ecosystem integration, RS‑485 redundancy, and the availability of dedicated expansion modules. The DS‑K2701X’s dual‑bus loop and 5 RS‑485 channels provide a robust physical layer for distributed systems, and native compatibility with HikCentral is a strong point for organizations already using Hikvision solutions.
• Vs. biometric‑centric controllers:Dedicated biometric controllers might offer deeper on‑board fingerprint processing or larger biometric templates, but the DS‑K2701X strikes a balance—supporting biometric records (up to 10,000 fingerprints) while retaining strong card and event capacities and extensive I/O.

Ultimately, the best choice depends on your existing platform, required expansion path, and whether RS‑485 redundancy and large local storage are priority features.

Conclusion: Why choose the DS-K2701X?

The DS-K2701X(P)(O‑STD) Ultra 1‑Door Access Controller is a compelling choice for projects that demand scalability, resilience and integration with a broader security ecosystem. Its large user and card capacities, extensive event logging, and the ability to expand to 125 doors make it suitable for campuses, commercial buildings and mission‑critical sites. The RS‑485 redundancy and dual‑bus loops offer added assurance of continuous communication between the controller and expansion modules, reducing downtime risk in distributed installations.

Coupled with web UI management and native interoperability with HikCentral and Hik‑Connect, the DS‑K2701X provides both operational convenience and enterprise features. Before purchase, confirm the exact variant (internal PSU vs. panel power), certification markings for your region, and warranty terms with your supplier. For projects that prioritize expansion, robust field communications and large local storage, the DS‑K2701X is a practical, future‑aware option.

If you’re evaluating access solutions for a growing facility or large deployment, consider the DS‑K2701X as a scalable backbone for your access control architecture—then verify variant details and installation requirements in the official datasheet and with your certified installer.
