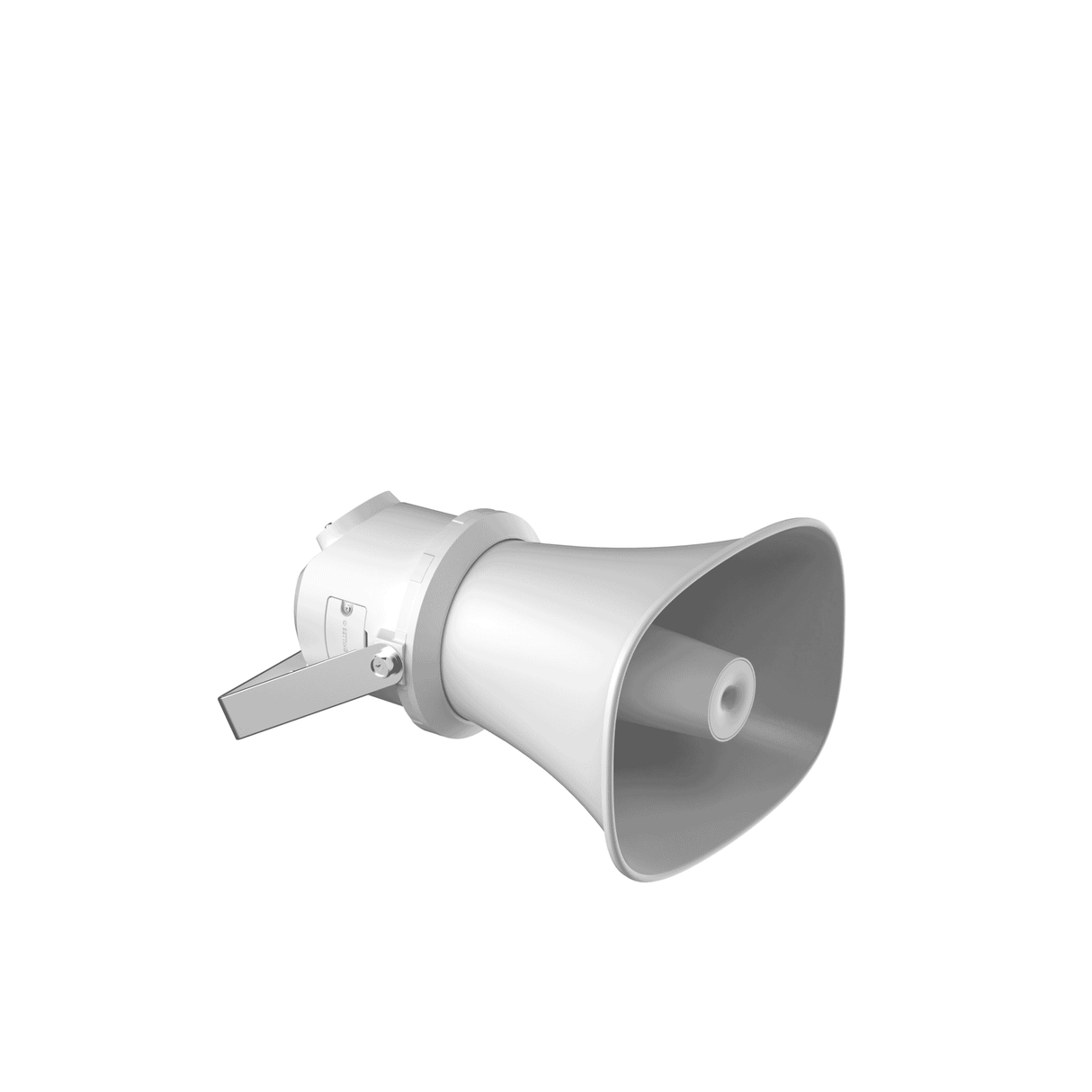

DS-QAZ1307G1T-E Outdoor IP Horn Speaker, 7 W PoE, SIP, IP67

Introduction: Meet the Hikvision DS-QAZ1307G1T-E

The Hikvision DS-QAZ1307G1T-E is a purpose-built outdoor IP horn speaker designed for clear, reliable voice paging, scheduled announcements, and emergency broadcast — all on a single PoE-enabled network device. With 7 W of rated speaker power, SIP support for two-way audio, onboard storage and text-to-speech (TTS), and a rugged IP67 metal housing, this model targets installers and system designers who need a compact, weatherproof solution for perimeter alerting, industrial sites and public-address systems.

Key features at a glance

• Power & audio: 7 W rated speaker with 8 Ω impedance, 110 dB sensitivity (1 m, 1 W) and up to 121 dB peak SPL.
• Network & integration: PoE (IEEE 802.3at / PoE+), SIP and RTP for live paging and SIP intercom, plus compatibility with Hikvision platforms (Hik-Connect, HikCentral, iVMS).
• Onboard intelligence: 4 GB eMMC (≈1 GB available for audio files), scheduled playback, TTS and live broadcast without additional hardware.
• Rugged build: Metal enclosure rated IP67 for outdoor exposure and an operating range from -30 °C to 60 °C.
• Installation-friendly: Single Ethernet port (RJ45 10/100 Mbps) with PoE power, plus a 12 VDC auxiliary output for simple setups.

Detailed specifications and benefits

This section breaks down the key specifications and explains what they mean in practical terms for installers and end users.

• Rated power: 7 W, impedance 8 Ω — enough for clear voice announcements in small to medium outdoor zones and near-perimeter coverage.
• Sensitivity & SPL: 110 dB sensitivity at 1 m (1 W) and a maximum SPL of 121 dB — delivers clear, intelligible speech and loud alerts when needed.
• Frequency response: 300 Hz – 13 kHz — optimized for vocal clarity rather than full-range music reproduction, which is ideal for paging and emergency voice messages.
• Dispersion: ≈70° horizontal × 100° vertical — focused coverage that helps control where sound is directed, reducing unnecessary spill into adjacent areas.
• Audio processing: Built-in algorithms such as AEC (acoustic echo cancellation), AGC (automatic gain control), ANS (adaptive noise suppression) and DRC (dynamic range control) improve intelligibility in noisy environments and during two-way calls.

• Dual electret microphones with 100 Hz – 20 kHz response and 48 kHz/16-bit sampling — support SIP two-way audio, useful for intercom-style communication and verification during paging events.

• Supports IPv4, HTTP/HTTPS, SIP, RTP and additional protocols (SSL/TLS, DNS, NTP, TCP/UDP, IGMP, ICMP, DHCP, ARP, SSH) — this device fits into modern IP audio and security networks.
• APIs and integrations: ISAPI, ISUP, SIP and compatibility with Hikvision management platforms (Hik-Connect, iVMS-4200, HikCentral) as well as third-party VMS integration — enabling centralized management and event-driven audio playback.
• Ethernet: Single RJ45 10/100 Mbps port — PoE simplifies wiring and reduces the need for local power outlets.

• Local storage: 4 GB eMMC with roughly 1 GB available for audio files — useful for scheduled playback, on-device messages and offline operation if network connectivity is lost.
• Interfaces: 1 alarm input, 1 line-in, and a reset button — these allow integration with external sensors or alarm systems.
• Power: IEEE 802.3at (PoE+) support with up to 16.4 W available and a 12 VDC auxiliary output (25 mA) — PoE+ covers device needs while enabling a single-cable install in many cases.

• IP67 ingress protection and metal housing — built to withstand rain, dust and outdoor conditions.
• Operating range: -30 °C to 60 °C and <90% humidity (no condensation) — suitable for many climates and industrial environments.
• Dimensions: 175 × 237 × 272 mm; weight ≈2.1 kg — compact and manageable for wall or pole mounting.
• Certifications: CE, CB (IEC 62368-1), RoHS, WEEE, REACH — standard regulatory compliance for commercial deployment. UKCA data not specified; verify locally.

Use cases and scenarios where the DS-QAZ1307G1T-E excels

This horn speaker is particularly well-suited for environments that require weatherproof, networked voice communication with minimal infrastructure.

• Perimeter and site security:Use for automated perimeter alerts, guard communications and audible deterrence in campuses, industrial yards and logistics centers.
• Emergency voice evacuation:Integrate with alarm systems to broadcast pre-recorded or live evacuation instructions across outdoor areas and access points.
• Public-address for transport hubs:Ideal for bus terminals, smaller train stations and ferry terminals where clear voice announcements are needed outdoors.
• Industrial facilities and warehouses:Broadcast shift changes, safety instructions or localized announcements in noisy or exposed outdoor zones.
• SIP-enabled intercoms:Combine with SIP phones and soft clients for two-way communications at gates, entry points and remote stations.
• Community alerting and campus paging:Deploy in schools, parks and shopping areas where scheduled messages and live paging are required, with the convenience of PoE and built-in storage/TTS.

How it compares to similar products on the market

When evaluating IP horn speakers, the most important differentiators are audio output, network feature set, ruggedness, onboard intelligence and price. The DS-QAZ1307G1T-E occupies a balanced position among those factors:

• Power and SPL:At 7 W and up to 121 dB peak SPL, it provides adequate coverage for small- to medium-sized outdoor zones. Some competing horns offer higher nominal wattages (10–15 W or more) for longer-range coverage; choose a higher-power model if you need extended throw or very large open areas.
• PoE support:PoE+ (802.3at) is an advantage for streamlined installs — some older models or passive horns require separate power supply or amplifiers.
• Onboard storage & TTS:Built-in 4 GB storage and TTS set it apart from basic IP horns that rely entirely on streaming or external servers. This simplifies scheduled playback and offline resilience.
• SIP two-way audio:Native SIP support is useful for intercom functionality; some IP speaker alternatives are one-way only or require proprietary protocols.
• Ruggedization:IP67-rated metal construction is competitive with professional outdoor models; lower-cost options may be weather-resistant but offer less ingress protection or plastic housings.

Conclusion: Why choose the DS-QAZ1307G1T-E?

The Hikvision DS-QAZ1307G1T-E is a solid, feature-rich option for organizations seeking a compact, weatherproof IP horn speaker with modern network capabilities. Its combination of PoE+ support, SIP two-way audio, onboard storage/TTS and IP67 metal construction makes it versatile for perimeter security, emergency notification and outdoor paging across many verticals.

Before purchasing, evaluate your required coverage area, verify firmware and integration requirements with your management platform, and confirm local certifications and warranty details with your supplier or Hikvision representative to ensure the DS-QAZ1307G1T-E meets your project needs.
