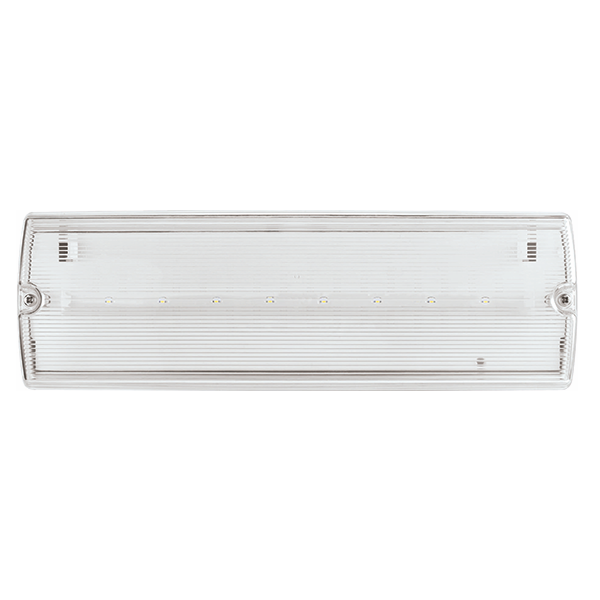

Duceri D1010SWH Emergency Bulkhead 3W LED IP65 Lithium Battery Switchable Self-Test White
£
15
45
(Incl. VAT)
5 Years Warranty
Emergency Bulkhead 3W LED IP65 Lithium Battery Switchable Self-Test White
About this product
About this product
The Duceri D1010SWH, from ESP's Emergency Lighting range, is a 3W LED emergency bulkhead rated IP65, for maintained or non-maintained operation. It runs from a 3.2V 1800mAh LiFePO4 lithium battery for a 3 hour emergency duration and has a self-test facility that can be enabled or disabled.
Key features
- Maintained or non-maintained operation
- Self-test facility you can enable or disable
- 3 hour battery duration from a 3.2V 1800mAh LiFePO4 battery (replacement: D001S)
- 8 x SMD 2835 LEDs: 120 lm mains, 100 lm emergency, 5500 K
- IP65, ceiling or wall mounting, white polycarbonate housing
- Charge and discharge protection, green LED charging indicator
- All legends included
- Certified to BS EN 60598-2-22 & BS EN 62034
Frequently asked questions
Can the D1010SWH run maintained?
Yes. It supports maintained or non-maintained operation.
How long does it run in an emergency?
The battery duration is 3 hours, from a 3.2V 1800mAh LiFePO4 battery.
Does the D1010SWH self-test?
It has a self-test facility that can be enabled or disabled.
What is its IP rating?
IP65.
Can it be flush mounted?
With the flush mount kit EMBULK2FLUSH.
Which standards is it certified to?
BS EN 60598-2-22 and BS EN 62034.
-
Download
- D1010SWH Tech Sheet
£
15
45
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
352 x 110 x 60
Colour Temperature (K)
5500
Colour
White
Mains Luminous Flux (Lm)
120
Materials
Polycarbonate Housing
Emergency Luminous Flux (Lm)
100
Mounting
Ceiling or Wall
LED Lamp Type
8 x SMD 2835
Warranty (Years)
5
Self-Test Facility
Facility to Enable or Disable
Supply Voltage (V AC)
220 - 240
Status Indication
Green LED
Frequency (Hz)
50
Replacement Battery
D001S
Safety
Charge & Discharge Protection
Power Consumption (W)
3
Battery Duration (Hours)
3
Operating Temperature (°C)
0 to +45
Relative Humidity Resistance (%)
<90
Weight
0.7 kg
GTIN
5061064590017
Commodity Code
9405423100
Emergency Operation
Maintained or Non-Maintained
Battery Specification
3.2V 1800mAh LiFePO4
Ingress Protection
IP65
Dimensions
Dimensions (mm)
352 x 110 x 60
Specifications
| Dimensions (mm) | 352 x 110 x 60 |
|---|---|
| Colour Temperature (K) | 5500 |
| Colour | White |
| Mains Luminous Flux (Lm) | 120 |
| Materials | Polycarbonate Housing |
| Emergency Luminous Flux (Lm) | 100 |
| Mounting | Ceiling or Wall |
| LED Lamp Type | 8 x SMD 2835 |
| Warranty (Years) | 5 |
| Self-Test Facility | Facility to Enable or Disable |
| Supply Voltage (V AC) | 220 - 240 |
| Status Indication | Green LED |
| Frequency (Hz) | 50 |
| Replacement Battery | D001S |
| Safety | Charge & Discharge Protection |
| Power Consumption (W) | 3 |
| Battery Duration (Hours) | 3 |
| Operating Temperature (°C) | 0 to +45 |
| Relative Humidity Resistance (%) | <90 |
| Weight | 0.7 kg |
| GTIN | 5061064590017 |
| Commodity Code | 9405423100 |
| Emergency Operation | Maintained or Non-Maintained |
| Battery Specification | 3.2V 1800mAh LiFePO4 |
| Ingress Protection | IP65 |
Dimensions
| Dimensions (mm) | 352 x 110 x 60 |
|---|
