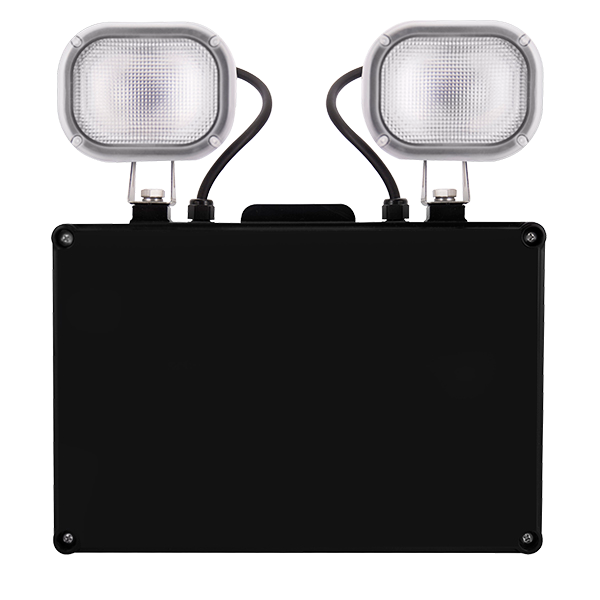

Duceri D1101SBK Emergency Twin Spot 6W LED IP40 Lithium Battery Switchable Self-Test Black
£
31
76
(Incl. VAT)
5 Years Warranty
Emergency Twin Spot 6W LED IP40 Lithium Battery Switchable Self-Test Black
About this product
About this product
The Duceri D1101SBK is a black non-maintained emergency twin spot with 2 heads of SMD 2835 LEDs, giving 309 lm in emergency. A 3.2V 6000mAH LiFePO4 battery gives a 3 hour battery duration, and the self-test facility can be enabled or disabled.
Key features
- Non-maintained emergency twin spot, 2 heads; 6 x SMD 2835 LEDs
- Emergency luminous flux 309 lm; colour temperature 5500 K
- 3 hour battery duration; 3.2V 6000mAH LiFePO4 battery (replacement battery D002)
- Self-test facility can be enabled or disabled
- Green LED status indication
- Charge & discharge protection
- Ceiling or wall mounting; black polycarbonate housing and heads
- Rated IP40
Frequently asked questions
How long does it run in emergency?
The battery duration is 3 hours.
Is it maintained or non-maintained?
Non-maintained.
Which battery does it use?
A 3.2V 6000mAH LiFePO4 battery; the replacement battery is D002.
Can the self-test be switched off?
Yes. The self-test facility can be enabled or disabled.
What is its IP rating?
IP40.
-
Download
- D1101SBK Tech Sheet
£
31
76
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
301 x 280 x 85
Colour Temperature (K)
5500
Colour
Black
Emergency Luminous Flux (Lm)
309
Materials
Polycarbonate Housing & Heads
LED Lamp Type
2 Heads; 6 x SMD 2835
Weight (Kg)
1.58
Self-Test Facility
Facility to Enable or Disable
Warranty (Years)
5
Emergency Operation
Non-Maintained
Supply Voltage (V AC)
220 - 240
Replacement Battery
D002
Frequency (Hz)
50
Safety
Charge & Discharge Protection
Battery Duration (Hours)
3
Power Consumption (W)
6
Power Consumption (A)
0.018
Operating Temperature (°C)
0 to +45
Relative Humidity Resistance (%)
<90
GTIN
5061064590086
Commodity Code
9405423100
Status Indication
Green LED
Battery Specification
3.2V 6000mAH LiFePO4
Mounting
Ceiling or Wall
Ingress Protection
IP40
Dimensions
Dimensions (mm)
301 x 280 x 85
Specifications
| Dimensions (mm) | 301 x 280 x 85 |
|---|---|
| Colour Temperature (K) | 5500 |
| Colour | Black |
| Emergency Luminous Flux (Lm) | 309 |
| Materials | Polycarbonate Housing & Heads |
| LED Lamp Type | 2 Heads; 6 x SMD 2835 |
| Weight (Kg) | 1.58 |
| Self-Test Facility | Facility to Enable or Disable |
| Warranty (Years) | 5 |
| Emergency Operation | Non-Maintained |
| Supply Voltage (V AC) | 220 - 240 |
| Replacement Battery | D002 |
| Frequency (Hz) | 50 |
| Safety | Charge & Discharge Protection |
| Battery Duration (Hours) | 3 |
| Power Consumption (W) | 6 |
| Power Consumption (A) | 0.018 |
| Operating Temperature (°C) | 0 to +45 |
| Relative Humidity Resistance (%) | <90 |
| GTIN | 5061064590086 |
| Commodity Code | 9405423100 |
| Status Indication | Green LED |
| Battery Specification | 3.2V 6000mAH LiFePO4 |
| Mounting | Ceiling or Wall |
| Ingress Protection | IP40 |
Dimensions
| Dimensions (mm) | 301 x 280 x 85 |
|---|
