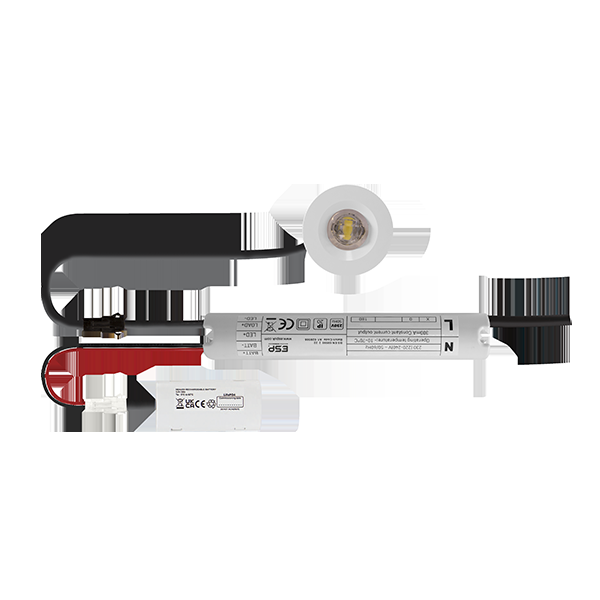

Duceri D2411SWH Emergency Downlight 5W LED IP20 Corridor Lens Lithium Battery White Switchable Self-Test Bezel
£
31
40
(Incl. VAT)
5 Years Warranty
Emergency Downlight 5W LED IP20 Corridor Lens Lithium Battery White Switchable Self-Test Bezel
About this product
About this product
The Duceri D2411SWH, from ESP's Emergency Lighting range, is a recessed non-maintained emergency downlight with a high power 5W LED, a corridor lens and a lithium battery. It is supplied with a white aluminium bezel, and its self-test facility can be enabled or disabled.
Key features
- Non-maintained emergency operation
- High power 5W LED, colour temperature 5500 K, emergency luminous flux 214 lm
- Corridor lens
- Self-test facility that can be enabled or disabled; green LED status indication
- 3.2V 6000mAh LiFePO4 battery; battery duration 3 hours
- Supplied with a white aluminium bezel
- Emergency module cutout Ø48 mm
- Certified to BS EN 60598-2-22 & BS EN 62034
Frequently asked questions
Is the D2411SWH maintained or non-maintained?
Non-maintained.
What size cutout does it need?
The emergency module cutout is Ø48 mm.
What battery does it use?
A 3.2V 6000mAh LiFePO4 battery with a battery duration of 3 hours; the replacement battery is the D002E.
Does it come with a bezel?
Yes. It is supplied with a white aluminium bezel.
What lens does it have?
A corridor lens.
-
Download
- D2411SWH Tech Sheet
£
31
40
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
Ø55 x 31
Colour Temperature (K)
5500
Emergency Module Dimensions (mm)
180 x Ø32
Emergency Luminous Flux (Lm)
214
Battery Dimensions (mm)
70 x Ø31
LED Lamp Type
High Power 5W LED
Emergency Module Cutout (mm)
Ø48
LED Life (Hours)
40000
Self-Test Facility
Facility to Enable or Disable
Materials
Polycarbonate Lamp Head & Housing
Emergency Operation
Non-Maintained
Mounting
Recessed
Status Indication
Green LED
Weight (Kg)
0.25
Replacement Battery
D002E
Warranty (Years)
5
Battery Duration (Hours)
3
Supply Voltage (V AC)
220 - 240
Frequency (Hz)
50
Safety
Charge & Discharge Protection
Power Consumption (W)
4.3
Power Consumption (A)
0.036
GTIN
5061064590291
Commodity Code
9405119090
Battery Specification
3.2V 6000mAh LiFePO4
Colour
White
RAL
RAL 9003
Ingress Protection
IP20
Features
Corridor Lens
Certification
BS EN 60598-2-22 & BS EN 62034
Dimensions
Dimensions (mm)
Ø55 x 31
Specifications
| Dimensions (mm) | Ø55 x 31 |
|---|---|
| Colour Temperature (K) | 5500 |
| Emergency Module Dimensions (mm) | 180 x Ø32 |
| Emergency Luminous Flux (Lm) | 214 |
| Battery Dimensions (mm) | 70 x Ø31 |
| LED Lamp Type | High Power 5W LED |
| Emergency Module Cutout (mm) | Ø48 |
| LED Life (Hours) | 40000 |
| Self-Test Facility | Facility to Enable or Disable |
| Materials | Polycarbonate Lamp Head & Housing |
| Emergency Operation | Non-Maintained |
| Mounting | Recessed |
| Status Indication | Green LED |
| Weight (Kg) | 0.25 |
| Replacement Battery | D002E |
| Warranty (Years) | 5 |
| Battery Duration (Hours) | 3 |
| Supply Voltage (V AC) | 220 - 240 |
| Frequency (Hz) | 50 |
| Safety | Charge & Discharge Protection |
| Power Consumption (W) | 4.3 |
| Power Consumption (A) | 0.036 |
| GTIN | 5061064590291 |
| Commodity Code | 9405119090 |
| Battery Specification | 3.2V 6000mAh LiFePO4 |
| Colour | White |
| RAL | RAL 9003 |
| Ingress Protection | IP20 |
| Features | Corridor Lens |
| Certification | BS EN 60598-2-22 & BS EN 62034 |
Dimensions
| Dimensions (mm) | Ø55 x 31 |
|---|
