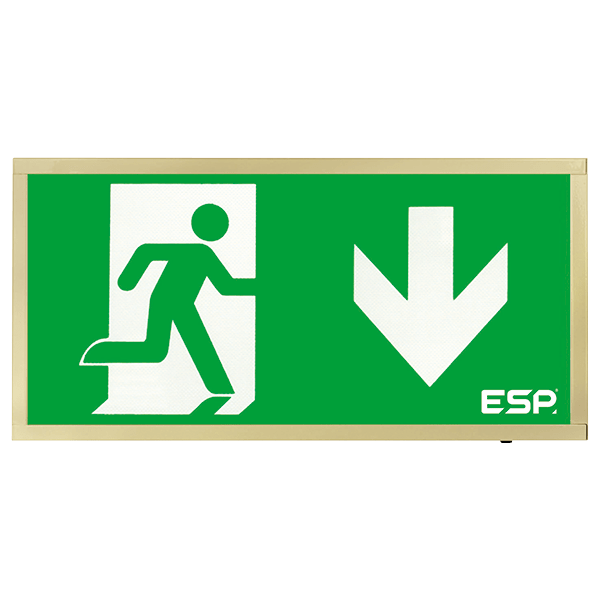

Duceri D120DBR Fire Exit Sign, Surface Exit Box, 3W LED IP20 Down Legend Lithium Battery Switchable Brass
£
39
28
(Incl. VAT)
5 Years Warranty
Emergency Surface Exit Box 3W LED IP20 Down Legend Lithium Battery Switchable Brass
About this product
About this product
A down legend is included with the Duceri D120DBR, a 3W LED emergency surface exit box with a brass finish from ESP's Emergency Lighting range. Its 3.2V 1500mAh LiFePO4 battery gives 3 hours' battery duration, and the viewing distance is 25 m.
Key features
- Maintained and non-maintained operation
- 3.2V 1500mAh LiFePO4 battery, 3 hour battery duration; replacement battery D001
- 20 x SMD 2835 LEDs, 5500 K; LED life 40000 hours
- Green LED charging indicator
- Charge and discharge protection
- Steel housing with a polycarbonate legend; brass finish
- Certified to BS EN 60598-2-22
- Down legend included; 25 m viewing distance
Frequently asked questions
Which legend comes with the D120DBR?
A down legend is included.
What is the replacement battery?
D001.
Can it run maintained?
Yes. It runs maintained or non-maintained.
How is it mounted?
It is wall mounted; it measures 390 x 190 x 60 mm.
What is the finish?
Brass, on a steel housing with a polycarbonate legend.
-
Download
- D120DBR Tech Sheet
£
39
28
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
390 x 190 x 60
Colour Temperature (K)
5500
Finish
Brass
LED Lamp Type
20 x SMD 2835
Materials
Steel housing
LED Life (Hours)
40000
Weight (Kg)
1.3
Emergency Operation
Maintained or Non-Maintained
Warranty (Years)
5
Status Indication
Green LED
Supply Voltage (V AC)
220 - 240
Viewing Distance (m)
25
Frequency (Hz)
50
Safety
Charge & Discharge Protection
Battery Duration (Hours)
3
Safety Class
I
Power Consumption (W)
4
Power Consumption (A)
0.03
Operating Temperature (°C)
0 to +45
Replacement Battery
D001
Battery Specification
3.2V 1500mAh LiFePO4
Mounting
Wall
Ingress Protection
IP20
Standards
BS EN 60598-2-22
Dimensions
Dimensions (mm)
390 x 190 x 60
Specifications
| Dimensions (mm) | 390 x 190 x 60 |
|---|---|
| Colour Temperature (K) | 5500 |
| Finish | Brass |
| LED Lamp Type | 20 x SMD 2835 |
| Materials | Steel housing |
| LED Life (Hours) | 40000 |
| Weight (Kg) | 1.3 |
| Emergency Operation | Maintained or Non-Maintained |
| Warranty (Years) | 5 |
| Status Indication | Green LED |
| Supply Voltage (V AC) | 220 - 240 |
| Viewing Distance (m) | 25 |
| Frequency (Hz) | 50 |
| Safety | Charge & Discharge Protection |
| Battery Duration (Hours) | 3 |
| Safety Class | I |
| Power Consumption (W) | 4 |
| Power Consumption (A) | 0.03 |
| Operating Temperature (°C) | 0 to +45 |
| Replacement Battery | D001 |
| Battery Specification | 3.2V 1500mAh LiFePO4 |
| Mounting | Wall |
| Ingress Protection | IP20 |
| Standards | BS EN 60598-2-22 |
Dimensions
| Dimensions (mm) | 390 x 190 x 60 |
|---|
