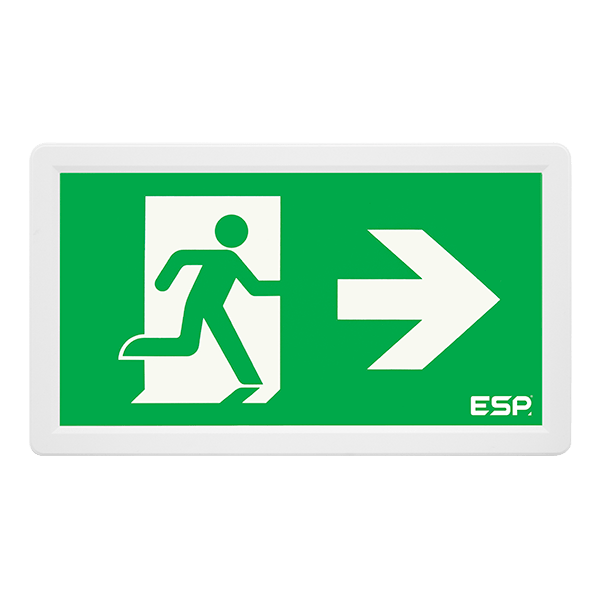

Duceri D121AWH Fire Exit Sign, Surface Slimline Exit Box, 3W LED IP20 All Legends Lithium Battery Maintained White
£
29
68
(Incl. VAT)
5 Years Warranty
Emergency Surface Slimline Exit Box 3W LED IP20 Legends Lithium Battery Maintained White
About this product
About this product
The Duceri D121AWH, from ESP's Emergency Lighting range, is a white 3W LED emergency surface slimline exit box with a lithium battery, and all legends are supplied. It runs maintained or non-maintained, with a viewing distance of 30 m.
Key features
- All legends supplied
- Maintained & non-maintained operation
- 20 x SMD 3014 LEDs & 4 x SMD 2835 LEDs, 6000 K; LED life 40000 hours
- Mains 48 lm, emergency 36 lm; viewing distance 30 m
- 3.2V 1500mAh LiFePO4 battery, 3 hour battery duration; replacement battery D001
- Green LED charging indicator; charge and discharge protection
- Polycarbonate frame and PVC legends; wall mounted
- Certified to BS EN 60598-2-22
Frequently asked questions
Which legends come with the D121AWH?
All legends are supplied.
Can it run maintained?
Yes: it offers maintained and non-maintained operation.
How long does it run in emergency?
3 hours, with its 3.2V 1500mAh LiFePO4 battery.
What is the replacement battery?
D001.
What is its light output?
48 lm on mains and 36 lm in emergency, at 6000 K.
-
Download
- D121AWH Tech Sheet
£
29
68
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
320 x 185 x 26
Colour Temperature (K)
6000
Legend Dimensions (mm)
300 x 163.5
Mains Luminous Flux (Lm)
48
Materials
Polycarbonate Frame, and PVC Legends
Emergency Luminous Flux (Lm)
36
Mounting
Wall
LED Life (Hours)
40000
Warranty (Years)
5
Emergency Operation
Maintained or Non-Maintained
Supply Voltage (V AC)
220 - 240
Replacement Battery
D001
Frequency (Hz)
50
Viewing Distance (m)
30
Safety
Charge & Discharge Protection
Power Consumption (W)
3
Battery Duration (Hours)
3
Operating Temperature (°C)
0 to +45
LED Lamp Type
20 x SMD 3014 & 4 x SMD 2835
Status Indication
Green LED
Battery Specification
3.2V 1500mAh LiFePO4
Weight (Kg)
0.68
Ingress Protection
IP20
Features
All legends supplied
Standards
BS EN 60598-2-22
Dimensions
Dimensions (mm)
320 x 185 x 26
Specifications
| Dimensions (mm) | 320 x 185 x 26 |
|---|---|
| Colour Temperature (K) | 6000 |
| Legend Dimensions (mm) | 300 x 163.5 |
| Mains Luminous Flux (Lm) | 48 |
| Materials | Polycarbonate Frame, and PVC Legends |
| Emergency Luminous Flux (Lm) | 36 |
| Mounting | Wall |
| LED Life (Hours) | 40000 |
| Warranty (Years) | 5 |
| Emergency Operation | Maintained or Non-Maintained |
| Supply Voltage (V AC) | 220 - 240 |
| Replacement Battery | D001 |
| Frequency (Hz) | 50 |
| Viewing Distance (m) | 30 |
| Safety | Charge & Discharge Protection |
| Power Consumption (W) | 3 |
| Battery Duration (Hours) | 3 |
| Operating Temperature (°C) | 0 to +45 |
| LED Lamp Type | 20 x SMD 3014 & 4 x SMD 2835 |
| Status Indication | Green LED |
| Battery Specification | 3.2V 1500mAh LiFePO4 |
| Weight (Kg) | 0.68 |
| Ingress Protection | IP20 |
| Features | All legends supplied |
| Standards | BS EN 60598-2-22 |
Dimensions
| Dimensions (mm) | 320 x 185 x 26 |
|---|
Emergency Surface Slimline Exit Box 3W LED IP20 Legends Lithium Battery Maintained White features
