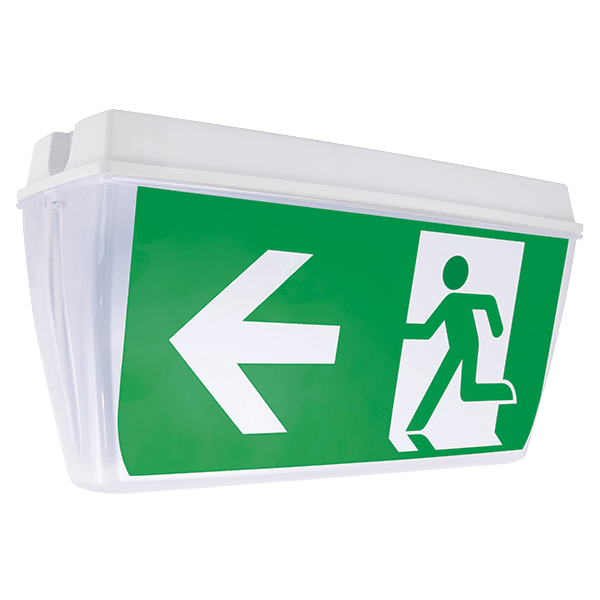

Duceri D151AWH Fire Exit Sign, Bulkhead, 3W LED IP65 All Legends Lithium Battery Maintained White
£
27
22
(Incl. VAT)
5 Years Warranty
Emergency Exit Sign Bulkhead 3W LED IP65 Legends Lithium Battery Maintained White
About this product
About this product
The Duceri D151AWH is a 3W LED emergency exit sign bulkhead in white, with all legends included. It runs maintained or non-maintained, and its 3.2V 1500mAh LiFePO4 battery gives 3 hours' battery duration.
Key features
- Maintained & non-maintained operation
- 8 x SMD 2835 LEDs; colour temperature 5500 K
- All legends included; legend dimensions 190 x 300 mm
- Viewing distance 28 m
- 3.2V 1500mAh LiFePO4 battery; 3 hours' battery duration
- Green LED charging indicator; charge & discharge protection
- IP65; ceiling mounting
Frequently asked questions
Can the D151AWH run maintained?
Yes: it operates maintained or non-maintained.
Which legends come with it?
All legends are included; the legend dimensions are 190 x 300 mm.
How long does it run on battery?
3 hours, from its 3.2V 1500mAh LiFePO4 battery.
What is the replacement battery?
The D001.
How far can it be seen?
The viewing distance is 28 m.
-
Download
- D151AWH Tech Sheet
£
27
22
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
351 x 182 x 115
Colour Temperature (K)
5500
Colour
White
LED Lamp Type
8 x SMD 2835
Mounting
Ceiling
Emergency Operation
Maintained or Non-Maintained
Weight (Kg)
0.95
Status Indication
Green LED
Warranty (Years)
5
Replacement Battery
D001
Supply Voltage (V AC)
220 - 240
Frequency (Hz)
50
Battery Duration (Hours)
3
Safety
Charge & Discharge Protection
Operating Temperature (°C)
0 to +45
Viewing Distance (m)
28
Battery Specification
3.2V 1500mAh LiFePO4
Materials
Polycarbonate Housing
Ingress Protection
IP65
Power Consumption (W)
3
Features
All legends included; Legend Dimensions - 190x 300mm
Standards
BS EN 60598-2-22
Dimensions
Dimensions (mm)
351 x 182 x 115
Specifications
| Dimensions (mm) | 351 x 182 x 115 |
|---|---|
| Colour Temperature (K) | 5500 |
| Colour | White |
| LED Lamp Type | 8 x SMD 2835 |
| Mounting | Ceiling |
| Emergency Operation | Maintained or Non-Maintained |
| Weight (Kg) | 0.95 |
| Status Indication | Green LED |
| Warranty (Years) | 5 |
| Replacement Battery | D001 |
| Supply Voltage (V AC) | 220 - 240 |
| Frequency (Hz) | 50 |
| Battery Duration (Hours) | 3 |
| Safety | Charge & Discharge Protection |
| Operating Temperature (°C) | 0 to +45 |
| Viewing Distance (m) | 28 |
| Battery Specification | 3.2V 1500mAh LiFePO4 |
| Materials | Polycarbonate Housing |
| Ingress Protection | IP65 |
| Power Consumption (W) | 3 |
| Features | All legends included; Legend Dimensions - 190x 300mm |
| Standards | BS EN 60598-2-22 |
Dimensions
| Dimensions (mm) | 351 x 182 x 115 |
|---|
