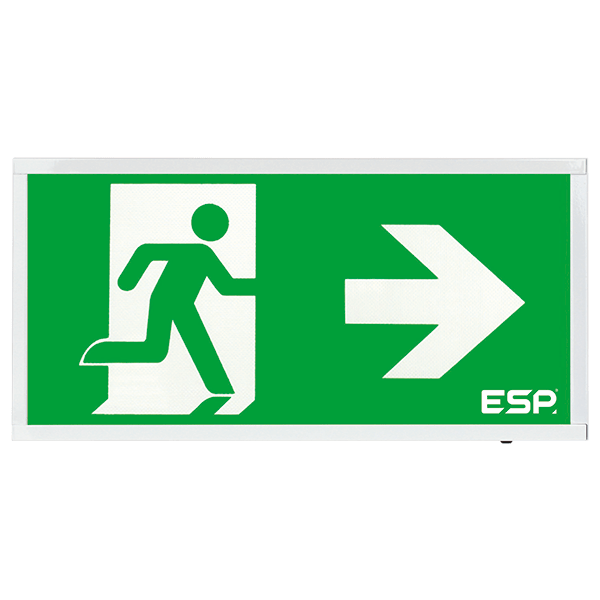

Duceri D520RWH Fire Exit Sign, Self-Test Surface Exit Box, 3W LED IP20 Right Legend Lithium Battery Maintained White
£
35
29
(Incl. VAT)
5 Years Warranty
Emergency Self-Test Surface Exit Box 3W LED IP20 Right Legend Lithium Battery Maintained White
About this product
About this product
The D520RWH is a Duceri emergency self test surface exit box in white, part of ESP's Emergency Lighting range: a wall-mounted 3W LED sign with a lithium battery and a right legend included. Operation is maintained or non-maintained.
Key features
- Maintained and non-maintained operation
- 3.2V 1500mAh LiFePO4 battery, 3 hour battery duration; replacement battery D001
- 20 x SMD 2835 LEDs, 5500 K
- Green LED charging indicator
- Charge and discharge protection
- BS EN 60598-2-22 standards
- Self test facility
- Right legend included; 25 m viewing distance
Frequently asked questions
Does the D520RWH have a self test facility?
Yes, it has a self test facility.
Can it run non-maintained?
Yes. It runs maintained or non-maintained.
Which legend comes with the D520RWH?
A right legend is included.
What is the replacement battery?
D001.
How is it mounted?
It is wall mounted; it measures 390 x 190 x 60 mm.
-
Download
- D520RWH Tech Sheet
£
35
29
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
390 x 190 x 60
Colour Temperature (K)
5500
Colour
White
LED Lamp Type
20 x SMD 2835
Mounting
Wall
Emergency Operation
Maintained or Non-Maintained
Weight (Kg)
1.3
Status Indication
Green LED
Warranty (Years)
5
Replacement Battery
D001
Supply Voltage (V AC)
220 - 240
Frequency (Hz)
50
Battery Duration (Hours)
3
Safety
Charge & Discharge Protection
Power Consumption (W)
4
Power Consumption (A)
0.03
Operating Temperature (°C)
0 to +45
Viewing Distance (m)
25
Battery Specification
3.2V 1500mAh LiFePO4
Ingress Protection
IP20
Standards
BS EN 60598-2-22
Features
Self test facility
Dimensions
Dimensions (mm)
390 x 190 x 60
Specifications
| Dimensions (mm) | 390 x 190 x 60 |
|---|---|
| Colour Temperature (K) | 5500 |
| Colour | White |
| LED Lamp Type | 20 x SMD 2835 |
| Mounting | Wall |
| Emergency Operation | Maintained or Non-Maintained |
| Weight (Kg) | 1.3 |
| Status Indication | Green LED |
| Warranty (Years) | 5 |
| Replacement Battery | D001 |
| Supply Voltage (V AC) | 220 - 240 |
| Frequency (Hz) | 50 |
| Battery Duration (Hours) | 3 |
| Safety | Charge & Discharge Protection |
| Power Consumption (W) | 4 |
| Power Consumption (A) | 0.03 |
| Operating Temperature (°C) | 0 to +45 |
| Viewing Distance (m) | 25 |
| Battery Specification | 3.2V 1500mAh LiFePO4 |
| Ingress Protection | IP20 |
| Standards | BS EN 60598-2-22 |
| Features | Self test facility |
Dimensions
| Dimensions (mm) | 390 x 190 x 60 |
|---|
