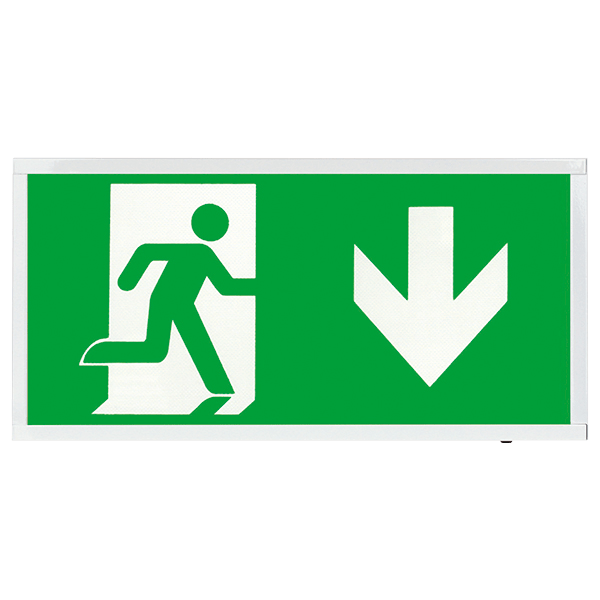

Duceri EMSTLED3WMEXBOXD Fire Exit Sign, Self-Test Exit Box Down Legend, 3W LED IP20 White
£
36
00
(Incl. VAT)
3 Years Warranty
Emergency Self-Test Exit Box Down Legend 3W LED IP20 White
About this product
About this product
The EMSTLED3WMEXBOXD is a 3W LED maintained emergency sign with a down legend: a white, wall mounted exit box in a steel housing with a self-test facility, giving 3 hours' battery duration from its 3.6V 1500mAh Ni-Cd battery.
Key features
- 3W LED maintained emergency sign, down legend
- Self-test facility
- Maintained or non-maintained emergency operation; 3 hours' battery duration
- 3.6V 1500mAh Ni-Cd battery; replacement battery EMBAT3.6V1500
- 20 x SMD 2835 LEDs, 5500 K; 25 m viewing distance
- Green LED status indication
- Steel housing, white; wall mounting; IP20
- BS EN 60598-2-22, BS EN 62034
Frequently asked questions
Which way does the legend point?
Down.
Does it have a self-test facility?
Yes.
How long does it run on battery?
3 hours, from a 3.6V 1500mAh Ni-Cd battery.
What is the replacement battery?
The EMBAT3.6V1500, a 3.6V 1500mAh battery.
Can it run maintained?
Yes: maintained or non-maintained.
-
Download
- EMSTLED3WMEXBOXD Tech Sheet
£
36
00
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
390 x 190 x 60
Colour Temperature (K)
5500
Finish
White
LED Lamp Type
20 x SMD 2835
Mounting
Wall
Emergency Operation
Maintained or Non-Maintained
Weight (Kg)
1.3
Status Indication
Green LED
Warranty (Years)
3
Viewing Distance (m)
25
Supply Voltage (V AC)
240
Battery Duration (Hours)
3
Frequency (Hz)
50
Safety
Charge & Discharge Protection
Power Consumption (W)
4
Power Consumption (A)
0.03
Operating Temperature (°C)
-5 to +45
Standards
BS EN 60598-2-22, BS EN 62034
Ingress Protection
IP20
Materials
Steel housing
Battery Specification
3.6V 1500mAh Ni-Cd
Features
Self-Test Facility
Accessories
EMBAT3.6V1500: 3.6V 1500mAh Battery
Dimensions
Dimensions (mm)
390 x 190 x 60
Specifications
| Dimensions (mm) | 390 x 190 x 60 |
|---|---|
| Colour Temperature (K) | 5500 |
| Finish | White |
| LED Lamp Type | 20 x SMD 2835 |
| Mounting | Wall |
| Emergency Operation | Maintained or Non-Maintained |
| Weight (Kg) | 1.3 |
| Status Indication | Green LED |
| Warranty (Years) | 3 |
| Viewing Distance (m) | 25 |
| Supply Voltage (V AC) | 240 |
| Battery Duration (Hours) | 3 |
| Frequency (Hz) | 50 |
| Safety | Charge & Discharge Protection |
| Power Consumption (W) | 4 |
| Power Consumption (A) | 0.03 |
| Operating Temperature (°C) | -5 to +45 |
| Standards | BS EN 60598-2-22, BS EN 62034 |
| Ingress Protection | IP20 |
| Materials | Steel housing |
| Battery Specification | 3.6V 1500mAh Ni-Cd |
| Features | Self-Test Facility |
| Accessories | EMBAT3.6V1500: 3.6V 1500mAh Battery |
Dimensions
| Dimensions (mm) | 390 x 190 x 60 |
|---|
