Duceri EMSTLED3WMEXBOXU Fire Exit Sign, Self-Test Exit Box Up Legend, 3W LED IP20 White
£
36
00
(Incl. VAT)
5 Years Warranty
Emergency Self-Test Exit Box Up Legend 3W LED IP20 White
About this product
About this product

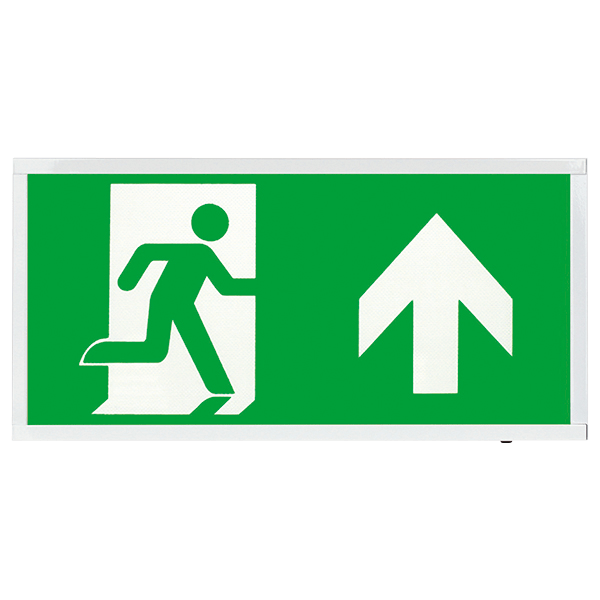

The Duceri EMSTLED3WMEXBOXU is a 3W LED emergency sign with an up legend. Its steel housing is white and wall mounted, it has a self-test facility, and it runs maintained or non-maintained for 3 hours on battery.
Key features
- 3W LED emergency sign, up legend
- Self-test facility
- Maintained or non-maintained; 3 hours' battery duration
- 3.6V 1500mAh Ni-Cd battery; replacement battery EMBAT3.6V1500
- 20 x SMD 2835 LEDs at 5500 K
- 25 m viewing distance; green LED status indication
- White steel housing, wall mounting, IP20
Frequently asked questions
Which direction is the legend?
Up.
What battery does it use?
A 3.6V 1500mAh Ni-Cd battery, giving 3 hours' battery duration.
What is the replacement battery?
The EMBAT3.6V1500, a 3.6V 1500mAh battery.
Does it self-test?
It has a self-test facility.
How far away can it be seen?
The viewing distance is 25 m.
-
Download
- EMSTLED3WMEXBOXU Tech Sheet
£
36
00
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
390 x 190 x 60
Colour Temperature (K)
5500
Colour
White
LED Lamp Type
20 x SMD 2835
Mounting
Wall
Emergency Operation
Maintained or Non-Maintained
Weight (Kg)
1.3
Status Indication
Green LED
Warranty (Years)
5
Viewing Distance (m)
25
Supply Voltage (V AC)
240
Battery Duration (Hours)
3
Frequency (Hz)
50
Safety
Charge & Discharge Protection
Power Consumption (W)
4
Power Consumption (A)
0.03
Operating Temperature (°C)
-5 to +45
Ingress Protection
IP20
Materials
Steel housing
Battery Specification
3.6V 1500mAh Ni-Cd
Features
Self-Test Facility
Accessories
EMBAT3.6V1500: 3.6V 1500mAh Battery
Dimensions
Dimensions (mm)
390 x 190 x 60
Specifications
| Dimensions (mm) | 390 x 190 x 60 |
|---|---|
| Colour Temperature (K) | 5500 |
| Colour | White |
| LED Lamp Type | 20 x SMD 2835 |
| Mounting | Wall |
| Emergency Operation | Maintained or Non-Maintained |
| Weight (Kg) | 1.3 |
| Status Indication | Green LED |
| Warranty (Years) | 5 |
| Viewing Distance (m) | 25 |
| Supply Voltage (V AC) | 240 |
| Battery Duration (Hours) | 3 |
| Frequency (Hz) | 50 |
| Safety | Charge & Discharge Protection |
| Power Consumption (W) | 4 |
| Power Consumption (A) | 0.03 |
| Operating Temperature (°C) | -5 to +45 |
| Ingress Protection | IP20 |
| Materials | Steel housing |
| Battery Specification | 3.6V 1500mAh Ni-Cd |
| Features | Self-Test Facility |
| Accessories | EMBAT3.6V1500: 3.6V 1500mAh Battery |
Dimensions
| Dimensions (mm) | 390 x 190 x 60 |
|---|
Emergency Self-Test Exit Box Up Legend 3W LED IP20 White features
Duceri EMSTLED3WMEXBOXU Fire Exit Sign, Self-Test Exit Box Up Legend, 3W LED IP20 White
