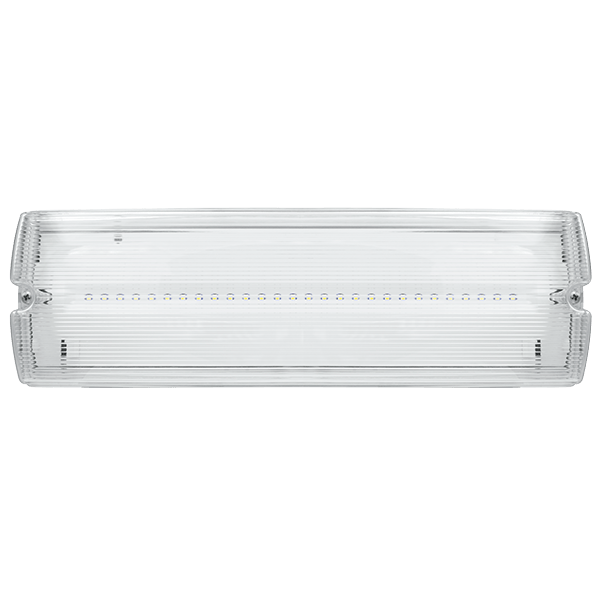

Duceri D1011WH Emergency Bulkhead 5W LED IP65 Lithium Battery Maintained White
£
24
83
(Incl. VAT)
5 Years Warranty
Emergency Bulkhead 5W LED IP65 Lithium Battery Maintained White
About this product
About this product
The Duceri D1011WH is a white 5W LED IP65 emergency bulkhead with a 3.2V 1500mAh LiFePO4 battery. It runs maintained or non-maintained, it mounts on a ceiling or wall, and all legends are included.
Key features
- Maintained or non-maintained operation
- 28 x SMD 2835 LEDs; 5500 K; mains 208 lm, emergency 190 lm
- 3.2V 1500mAh LiFePO4 battery: 3 hours' battery duration
- Replacement battery: D001
- Green LED charging indicator; charge & discharge protection
- IP65; ceiling or wall mounting; flush mount kit: EMBULK2FLUSH
- All legends included
- BS EN 60598-2-22 standards
Frequently asked questions
Is the D1011WH maintained or non-maintained?
Either: it runs maintained or non-maintained.
How long does the battery last in emergency?
3 hours' battery duration from its 3.2V 1500mAh LiFePO4 battery.
Can it be flush mounted?
The flush mount kit for it is the EMBULK2FLUSH; it mounts on a ceiling or wall.
Are legends included?
Yes: all legends are included.
What is the replacement battery?
The D001.
-
Download
- D1011WH Tech Sheet
£
24
83
Price
Technical Details
Specifications
Dimensions (mm)
352 x 110 x 60
Colour Temperature (K)
5500
Colour
White
Mains Luminous Flux (Lm)
208
Materials
Polycarbonate Housing
Emergency Luminous Flux (Lm)
190
Mounting
Ceiling or Wall
LED Lamp Type
28 x SMD 2835
Warranty (Years)
5
Emergency Operation
Maintained or Non-Maintained
Supply Voltage (V AC)
220 - 240
Replacement Battery
D001
Frequency (Hz)
50
Safety
Charge & Discharge Protection
Battery Duration (Hours)
3
Power Consumption (W)
5
Operating Temperature (°C)
0 to +45
Relative Humidity Resistance (%)
<90
Status Indication
Green LED
Battery Specification
3.2V 1500mAh LiFePO4
Weight (Kg)
0.75
Ingress Protection
IP65
Standards
BS EN 60598-2-22
Accessories
Flush mount kit: EMBULK2FLUSH
Dimensions
Dimensions (mm)
352 x 110 x 60
Specifications
| Dimensions (mm) | 352 x 110 x 60 |
|---|---|
| Colour Temperature (K) | 5500 |
| Colour | White |
| Mains Luminous Flux (Lm) | 208 |
| Materials | Polycarbonate Housing |
| Emergency Luminous Flux (Lm) | 190 |
| Mounting | Ceiling or Wall |
| LED Lamp Type | 28 x SMD 2835 |
| Warranty (Years) | 5 |
| Emergency Operation | Maintained or Non-Maintained |
| Supply Voltage (V AC) | 220 - 240 |
| Replacement Battery | D001 |
| Frequency (Hz) | 50 |
| Safety | Charge & Discharge Protection |
| Battery Duration (Hours) | 3 |
| Power Consumption (W) | 5 |
| Operating Temperature (°C) | 0 to +45 |
| Relative Humidity Resistance (%) | <90 |
| Status Indication | Green LED |
| Battery Specification | 3.2V 1500mAh LiFePO4 |
| Weight (Kg) | 0.75 |
| Ingress Protection | IP65 |
| Standards | BS EN 60598-2-22 |
| Accessories | Flush mount kit: EMBULK2FLUSH |
Dimensions
| Dimensions (mm) | 352 x 110 x 60 |
|---|
Emergency Bulkhead 5W LED IP65 Lithium Battery Maintained White features
Duceri D1011WH Emergency Bulkhead 5W LED IP65 Lithium Battery Maintained White
