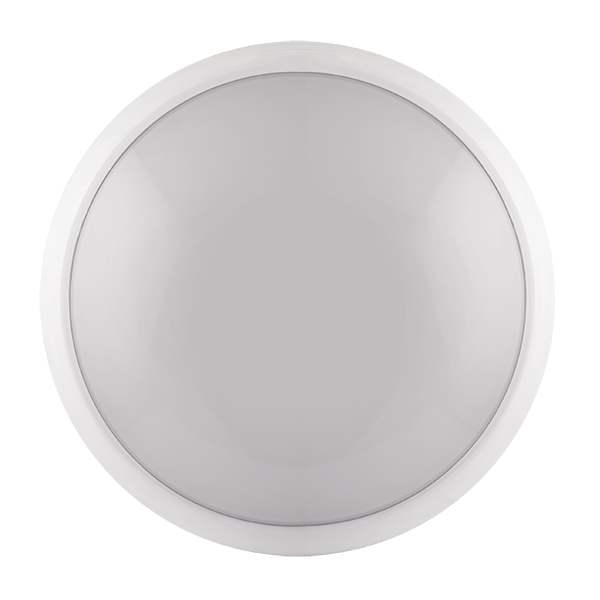

Duceri D1020WH Emergency Surface Circular Bulkhead 14W CCT LED IP65 Lithium Battery Maintained White
£
44
46
(Incl. VAT)
Emergency Surface Circular Bulkhead 14W CCT LED IP65 Lithium Battery Maintained White
About this product
About this product
The Duceri D1020WH, from ESP's Emergency Lighting range, is a white 14W LED emergency circular bulkhead with switchable CCT (3000, 4000 or 6000 K) and a lithium battery. It runs maintained or non-maintained, gives 161 lm in emergency and 3 hours' battery duration, and is rated IP65.
Key features
- Switchable CCT: 3000, 4000 or 6000 K
- Mains luminous flux 1352 lm (3000 K), 1493 lm (4000 K), 1471 lm (6000 K); emergency luminous flux 161 lm
- Maintained and non-maintained operation
- 3.2V 1500mAh LiFePO4 battery, 3 hour battery duration; replacement battery D001
- 144 x SMD 2835 LEDs; LED life 40000 hours
- Green LED charging indicator; charge and discharge protection
- 3 x 20mm knockouts: 2 at the sides and 1 in the base
- Ceiling or wall mounting; rated IP65
Frequently asked questions
What colour temperatures can it be set to?
3000, 4000 or 6000 K: the CCT is switchable.
What is its emergency output?
161 lm emergency luminous flux, with a battery duration of 3 hours.
Can it run maintained?
Yes. It runs maintained or non-maintained.
What is the replacement battery?
D001.
How many cable entries does it have?
3 x 20mm knockouts: 2 x 20mm at the sides and 1 x 20mm in the base.
-
Download
- D1020WH Tech Sheet
£
44
46
FAST delivery by Order within
Price
Technical Details
Specifications
Materials
Polycarbonate Housing
Emergency Luminous Flux (Lm)
161
Mounting
Ceiling or Wall
LED Lamp Type
144 x SMD 2835
Weight (Kg)
1.2
LED Life (Hours)
40000
Supply Voltage (V AC)
220 - 240
Status Indication
Green LED
Frequency (Hz)
50
Replacement Battery
D001
Safety
Charge & Discharge Protection
Power Consumption (W)
15
Battery Duration (Hours)
3
Operating Temperature (°C)
0 to +45
Additional Information
Comes with 2 x 20mm knockouts (sides) & 1 x 20mm (base)
Dimensions (mm)
Ø305 x 80
Colour
White
Colour Temperature (K)
3000 / 4000 / 6000 (switchable CCT)
Mains Luminous Flux (Lm)
1352 (3000 K) / 1493 (4000 K) / 1471 (6000 K)
Emergency Operation
Maintained or Non-Maintained
Battery Specification
3.2V 1500mAh LiFePO4
Ingress Protection
IP65
Standards
BS EN 60598-2-22
Specifications
| Materials | Polycarbonate Housing |
|---|---|
| Emergency Luminous Flux (Lm) | 161 |
| Mounting | Ceiling or Wall |
| LED Lamp Type | 144 x SMD 2835 |
| Weight (Kg) | 1.2 |
| LED Life (Hours) | 40000 |
| Supply Voltage (V AC) | 220 - 240 |
| Status Indication | Green LED |
| Frequency (Hz) | 50 |
| Replacement Battery | D001 |
| Safety | Charge & Discharge Protection |
| Power Consumption (W) | 15 |
| Battery Duration (Hours) | 3 |
| Operating Temperature (°C) | 0 to +45 |
| Additional Information | Comes with 2 x 20mm knockouts (sides) & 1 x 20mm (base) |
| Dimensions (mm) | Ø305 x 80 |
| Colour | White |
| Colour Temperature (K) | 3000 / 4000 / 6000 (switchable CCT) |
| Mains Luminous Flux (Lm) | 1352 (3000 K) / 1493 (4000 K) / 1471 (6000 K) |
| Emergency Operation | Maintained or Non-Maintained |
| Battery Specification | 3.2V 1500mAh LiFePO4 |
| Ingress Protection | IP65 |
| Standards | BS EN 60598-2-22 |
Emergency Surface Circular Bulkhead 14W CCT LED IP65 Lithium Battery Maintained White features
Duceri D1020WH Emergency Surface Circular Bulkhead 14W CCT LED IP65 Lithium Battery Maintained White
