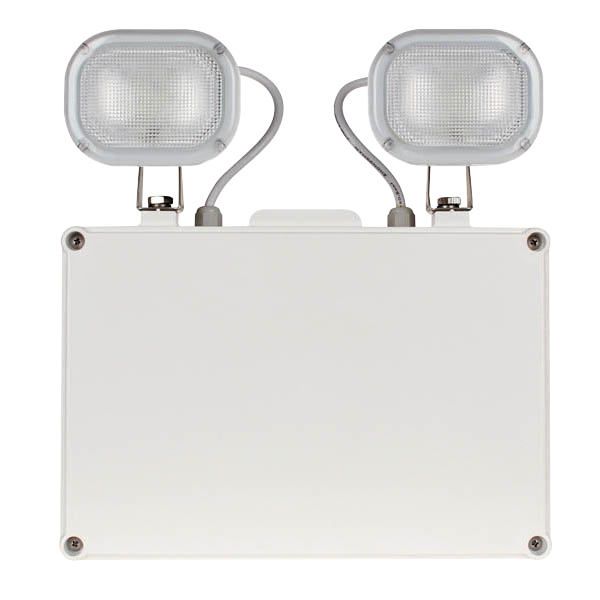

Duceri D1102SWH Emergency Twin Spot 9W LED IP65 Lithium Battery Switchable Self-Test White
£
47
23
(Incl. VAT)
5 Years Warranty
Emergency Twin Spot 9W LED IP65 Lithium Battery Switchable Self-Test White
About this product
About this product
The Duceri D1102SWH, from ESP's Emergency Lighting range, is a white non-maintained emergency twin spot for ceiling or wall mounting, with 2 heads of SMD 2835 LEDs giving 535 lm in emergency mode. Emergency duration is 3 hours from its 3.2V 6000mAh LiFePO4 battery, with a self-test facility that can be enabled or disabled.
Key features
- Non-maintained operation
- 2 heads: 15 x SMD 2835 LED lamps; 535 lm emergency luminous flux at 5500 K
- 3.2V 6000mAh LiFePO4 battery, 3 hour duration; replacement battery D002
- Self-test facility you can enable or disable
- Charge and discharge protection
- Green LED charging indicator
- IP65; ceiling or wall mounting
- Certified to BS EN 60598-2-22 & BS EN 62034
Frequently asked questions
Is the D1102SWH maintained or non-maintained?
Non-maintained.
How long does it run on battery?
3 hours, from a 3.2V 6000mAh LiFePO4 battery.
Can the self-test be switched off?
Yes. The self-test facility can be enabled or disabled.
Which replacement battery does it take?
The D002.
Which standards is it certified to?
BS EN 60598-2-22 & BS EN 62034.
What is its IP rating and operating temperature?
It is rated IP65. Its operating temperature is 0 to +45 °C.
-
Download
- D1102SWH Tech Sheet
£
47
23
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
301 x 280 x 90
Colour Temperature (K)
5500
Colour
White
Emergency Luminous Flux (Lm)
535
Materials
Polycarbonate housing & heads
LED Lamp Type
2 Heads; 15 x SMD 2835
Weight (Kg)
1.85
Self-Test Facility
Facility to Enable or Disable
Warranty (Years)
5
Emergency Operation
Non-Maintained
Supply Voltage (V AC)
220 - 240
Replacement Battery
D002
Frequency (Hz)
50
Safety
Charge & Discharge Protection
Battery Duration (Hours)
3
Power Consumption (W)
9
Power Consumption (A)
0.019
Operating Temperature (°C)
0 to +45
Relative Humidity Resistance (%)
<90
Mounting
Ceiling or Wall
Ingress Protection
IP65
Battery Specification
3.2V 6000mAH LiFePO4
Status Indication
Green LED
Dimensions
Dimensions (mm)
301 x 280 x 90
Specifications
| Dimensions (mm) | 301 x 280 x 90 |
|---|---|
| Colour Temperature (K) | 5500 |
| Colour | White |
| Emergency Luminous Flux (Lm) | 535 |
| Materials | Polycarbonate housing & heads |
| LED Lamp Type | 2 Heads; 15 x SMD 2835 |
| Weight (Kg) | 1.85 |
| Self-Test Facility | Facility to Enable or Disable |
| Warranty (Years) | 5 |
| Emergency Operation | Non-Maintained |
| Supply Voltage (V AC) | 220 - 240 |
| Replacement Battery | D002 |
| Frequency (Hz) | 50 |
| Safety | Charge & Discharge Protection |
| Battery Duration (Hours) | 3 |
| Power Consumption (W) | 9 |
| Power Consumption (A) | 0.019 |
| Operating Temperature (°C) | 0 to +45 |
| Relative Humidity Resistance (%) | <90 |
| Mounting | Ceiling or Wall |
| Ingress Protection | IP65 |
| Battery Specification | 3.2V 6000mAH LiFePO4 |
| Status Indication | Green LED |
Dimensions
| Dimensions (mm) | 301 x 280 x 90 |
|---|
