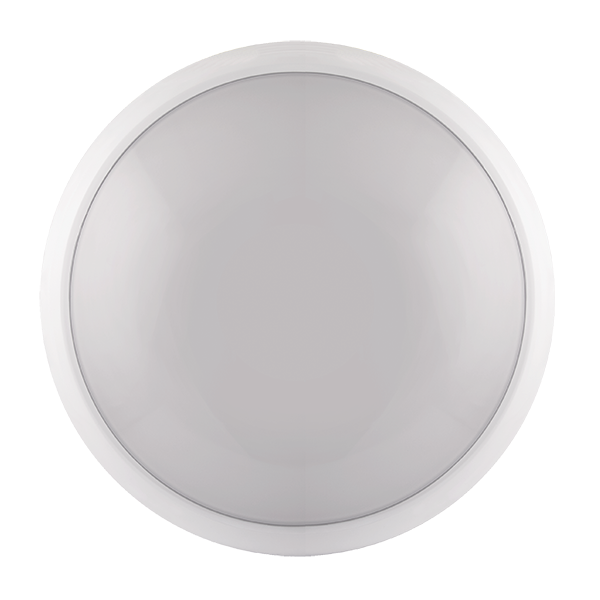

Duceri D1620WH Emergency Surface Circular Bulkhead 14W CCT LED IP65 Microwave Sensor Lithium Battery Maintained White
£
55
44
(Incl. VAT)
Emergency Surface Circular Bulkhead 14W CCT LED IP65 Microwave Sensor Lithium Battery Maintained White
About this product
About this product
The Duceri D1620WH, from ESP's Emergency Lighting range, is a 14W LED emergency circular CCT bulkhead with a built-in microwave sensor. It runs maintained or non-maintained, has switchable CCT (3000, 4000 or 6000 K) and a 3.2V 1500 mAh LiFePO4 battery with a battery duration of 3 hours.
Key features
- Maintained & non-maintained operation
- Switchable CCT: 3000, 4000 or 6000 K
- Built-in microwave sensor
- 14W LED; mains luminous flux 1493 lm at 4000 K, emergency luminous flux 161 lm
- 3.2V 1500 mAh LiFePO4 battery, 3 hours duration; green LED charging indicator
- Charge and discharge protection
- Polycarbonate housing, ceiling or wall mounting; rated IP65
- Certified to BS EN 60598-2-22
Frequently asked questions
Can it run maintained or non-maintained?
Yes, it supports maintained & non-maintained operation.
What colour temperatures can it be set to?
Its CCT is switchable: 3000, 4000 or 6000 K.
How long does the battery last?
Battery duration is 3 hours, from a 3.2V 1500 mAh LiFePO4 battery.
What is the replacement battery?
D001.
What is its IP rating?
IP65.
Which standard is it certified to?
BS EN 60598-2-22.
-
Download
- D1620WH Tech Sheet
£
55
44
FAST delivery by Order within
Price
Technical Details
Specifications
Materials
Polycarbonate Housing
Emergency Luminous Flux (Lm)
161
Mounting
Ceiling or Wall
LED Lamp Type
144 x SMD 2835
Weight (Kg)
1.24
LED Life (Hours)
40000
Supply Voltage (V AC)
220 - 240
Status Indication
Green LED
Frequency (Hz)
50
Replacement Battery
D001
Safety
Charge & Discharge Protection
Power Consumption (W)
15
Battery Duration (Hours)
3
Operating Temperature (°C)
0 to +45
Additional Information
Comes with 2 x 20mm knockouts (sides) & 1 x 20mm (base)
Colour Temperature (K)
3000/4000/6000
Mains Luminous Flux (Lm)
1493 (4000k)
Emergency Operation
Maintained or Non-Maintained
Battery Specification
3.2V 1500mAh LiFePO4
Dimensions (mm)
Ø305 x 80
Colour
White
Ingress Protection
IP65
Specifications
| Materials | Polycarbonate Housing |
|---|---|
| Emergency Luminous Flux (Lm) | 161 |
| Mounting | Ceiling or Wall |
| LED Lamp Type | 144 x SMD 2835 |
| Weight (Kg) | 1.24 |
| LED Life (Hours) | 40000 |
| Supply Voltage (V AC) | 220 - 240 |
| Status Indication | Green LED |
| Frequency (Hz) | 50 |
| Replacement Battery | D001 |
| Safety | Charge & Discharge Protection |
| Power Consumption (W) | 15 |
| Battery Duration (Hours) | 3 |
| Operating Temperature (°C) | 0 to +45 |
| Additional Information | Comes with 2 x 20mm knockouts (sides) & 1 x 20mm (base) |
| Colour Temperature (K) | 3000/4000/6000 |
| Mains Luminous Flux (Lm) | 1493 (4000k) |
| Emergency Operation | Maintained or Non-Maintained |
| Battery Specification | 3.2V 1500mAh LiFePO4 |
| Dimensions (mm) | Ø305 x 80 |
| Colour | White |
| Ingress Protection | IP65 |
