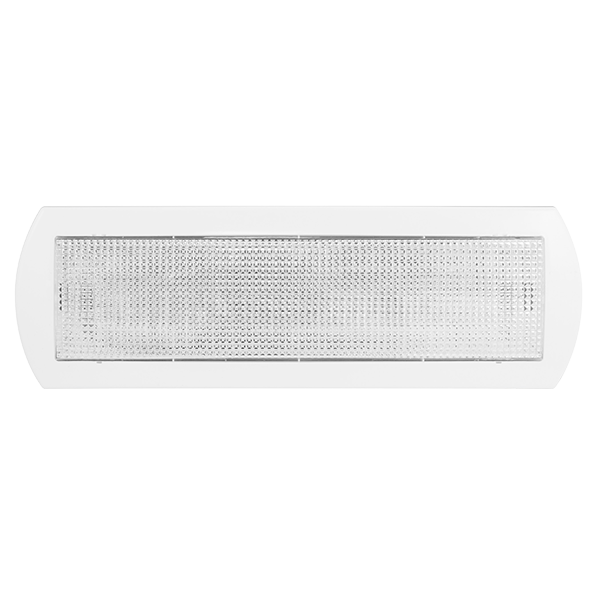

Duceri D2000SWH Emergency Flush Bulkhead 4W LED IP20 Lithium Battery Switchable Self-Test White
£
25
67
(Incl. VAT)
5 Years Warranty
Emergency Flush Bulkhead 4W LED IP20 Lithium Battery Switchable Self-Test White
About this product
About this product
The Duceri D2000SWH, from ESP's Emergency Lighting range, is a white emergency flush bulkhead with a 4W LED and a lithium battery, recessed into a 340 x 90 mm cutout. It runs maintained or non-maintained, gives 3 hours' battery duration, and its self-test facility can be enabled or disabled.
Key features
- Maintained or non-maintained operation
- 30 x SMD 2835 LEDs, 5500 K; 131 lm mains, 105 lm emergency
- 3.2V 1800mAh LiFePO4 battery, 3 hour battery duration
- Self-test facility that can be enabled or disabled
- Green LED charging indicator
- Charge and discharge protection
- Recessed; cutout 340 x 90 mm
- Certified to BS EN 60598-2-22 & BS EN 62034
Frequently asked questions
Can the D2000SWH run maintained?
Yes. It runs maintained or non-maintained.
What is its battery duration?
3 hours, from a 3.2V 1800mAh LiFePO4 battery.
What size cutout does it need?
340 x 90 mm; it is recessed.
Which standards is it certified to?
BS EN 60598-2-22 & BS EN 62034.
What is the replacement battery?
D001S.
-
Download
- D2000SWH Tech Sheet
£
25
67
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
387 x 125 x 80
Colour Temperature (K)
5500
Cutout Dimensions (mm)
340 x 90
Mains Luminous Flux (Lm)
131
Colour
White
Emergency Luminous Flux (Lm)
105
Materials
Polycarbonate Housing
LED Lamp Type
30 x SMD 2835
Weight (Kg)
1.85
Self-Test Facility
Facility to Enable or Disable
Warranty (Years)
5
Emergency Operation
Maintained or Non-Maintained
Supply Voltage (V AC)
220 - 240
Replacement Battery
D001S
Frequency (Hz)
50
Safety
Charge & Discharge Protection
Battery Duration (Hours)
3
Power Consumption (W)
4
Operating Temperature (°C)
0 to +40
Relative Humidity Resistance (%)
<90
Status Indication
Green LED
Battery Specification
3.2V 1800mAh LiFePO4
Mounting
Recessed
Ingress Protection
IP20
Certification
BS EN 60598-2-22 & BS EN 62034
Dimensions
Dimensions (mm)
387 x 125 x 80
Specifications
| Dimensions (mm) | 387 x 125 x 80 |
|---|---|
| Colour Temperature (K) | 5500 |
| Cutout Dimensions (mm) | 340 x 90 |
| Mains Luminous Flux (Lm) | 131 |
| Colour | White |
| Emergency Luminous Flux (Lm) | 105 |
| Materials | Polycarbonate Housing |
| LED Lamp Type | 30 x SMD 2835 |
| Weight (Kg) | 1.85 |
| Self-Test Facility | Facility to Enable or Disable |
| Warranty (Years) | 5 |
| Emergency Operation | Maintained or Non-Maintained |
| Supply Voltage (V AC) | 220 - 240 |
| Replacement Battery | D001S |
| Frequency (Hz) | 50 |
| Safety | Charge & Discharge Protection |
| Battery Duration (Hours) | 3 |
| Power Consumption (W) | 4 |
| Operating Temperature (°C) | 0 to +40 |
| Relative Humidity Resistance (%) | <90 |
| Status Indication | Green LED |
| Battery Specification | 3.2V 1800mAh LiFePO4 |
| Mounting | Recessed |
| Ingress Protection | IP20 |
| Certification | BS EN 60598-2-22 & BS EN 62034 |
Dimensions
| Dimensions (mm) | 387 x 125 x 80 |
|---|
