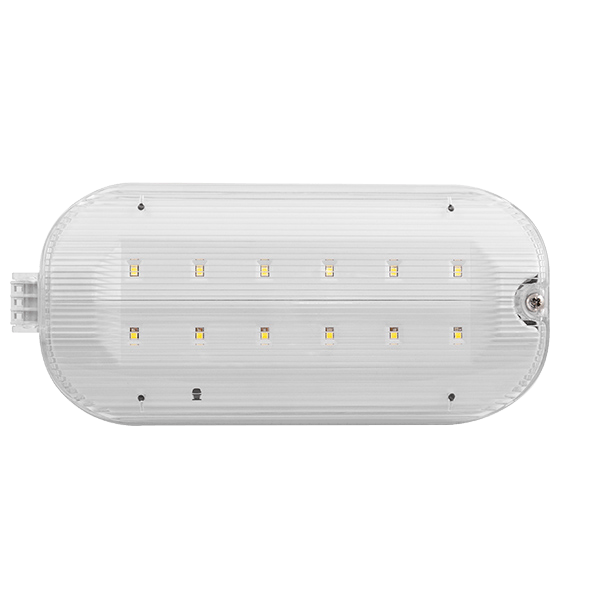

Duceri EMLED3WMHBULK2 Emergency Hinged Bulkhead 3W LED IP65 Maintained
£
12
00
(Incl. VAT)
5 Years Warranty
Emergency Hinged Bulkhead 3W LED IP65 Maintained
About this product
About this product
The Duceri EMLED3WMHBULK2, from ESP's Emergency Lighting range, is a 3W LED IP65 emergency rectangle bulkhead for maintained or non-maintained operation. It gives 107 lm in emergency and 151 lm on mains from 12 x SMD 2835 LEDs, with a 3 hour battery duration.
Key features
- Maintained or non-maintained operation
- 12 x SMD 2835 LEDs, 5500 K
- 151 lm mains, 107 lm emergency
- 3.6V 900mAh Ni-Cd battery, 3 hour duration
- Charge and discharge protection
- Hinged lid to assist installation; legend included
- Green LED indicator
- BS EN 60598-2-22 standards
Frequently asked questions
Can the EMLED3WMHBULK2 be used maintained?
Yes. It runs maintained or non-maintained.
How bright is it?
151 lm on mains and 107 lm in emergency, at 5500 K.
How long does it run in emergency?
The battery duration is 3 hours, from a 3.6V 900mAh Ni-Cd battery.
What is its IP rating?
IP65.
Where can it be mounted?
On a ceiling or wall.
-
Download
- EMLED3WMHBULK2 Tech Sheet
£
12
00
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
225 x 105 x 50
Colour Temperature (K)
5500
Colour
White
Mains Luminous Flux (Lm)
151
Materials
Polycarbonate Housing
Emergency Luminous Flux (Lm)
107
Mounting
Ceiling or Wall
LED Lamp Type
12 x SMD 2835
Warranty (Years)
5
Emergency Operation
Maintained or Non-Maintained
Supply Voltage (V AC)
220 - 240
Frequency (Hz)
50
Battery Duration (Hours)
3
Safety
Charge & Discharge Protection
Operating Temperature (°C)
-10 to +40
Relative Humidity Resistance (%)
<90
Status Indication
Green LED
Battery Specification
3.6V 900mAh Ni-Cd
Ingress Protection
IP65
Weight (Kg)
0.5
Accessories
EMBAT3.6V900SER: 3.6V 900mAh Ni-Cd Battery
Standards
BS EN 60598-2-22
Dimensions
Dimensions (mm)
225 x 105 x 50
Specifications
| Dimensions (mm) | 225 x 105 x 50 |
|---|---|
| Colour Temperature (K) | 5500 |
| Colour | White |
| Mains Luminous Flux (Lm) | 151 |
| Materials | Polycarbonate Housing |
| Emergency Luminous Flux (Lm) | 107 |
| Mounting | Ceiling or Wall |
| LED Lamp Type | 12 x SMD 2835 |
| Warranty (Years) | 5 |
| Emergency Operation | Maintained or Non-Maintained |
| Supply Voltage (V AC) | 220 - 240 |
| Frequency (Hz) | 50 |
| Battery Duration (Hours) | 3 |
| Safety | Charge & Discharge Protection |
| Operating Temperature (°C) | -10 to +40 |
| Relative Humidity Resistance (%) | <90 |
| Status Indication | Green LED |
| Battery Specification | 3.6V 900mAh Ni-Cd |
| Ingress Protection | IP65 |
| Weight (Kg) | 0.5 |
| Accessories | EMBAT3.6V900SER: 3.6V 900mAh Ni-Cd Battery |
| Standards | BS EN 60598-2-22 |
Dimensions
| Dimensions (mm) | 225 x 105 x 50 |
|---|
