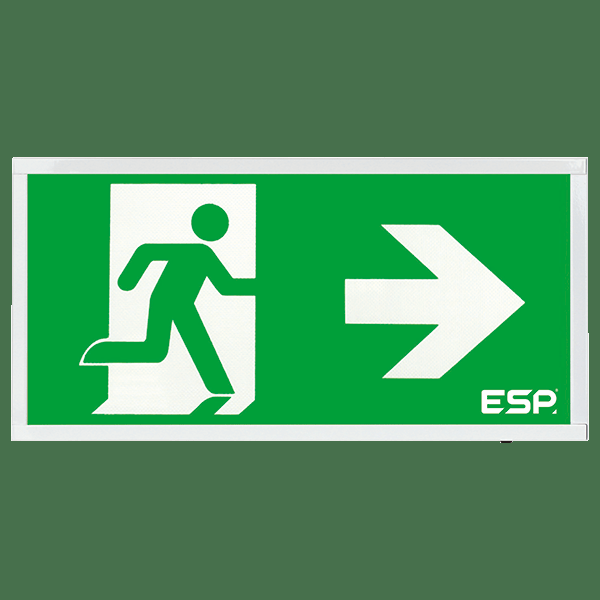

Duceri D120RWH Fire Exit Sign, Surface Exit Box, 3W LED IP20 Right Legend Lithium Battery Switchable White
£
24
65
(Incl. VAT)
5 Years Warranty
Emergency Surface Exit Box 3W LED IP20 Right Legend Lithium Battery Switchable White
About this product
About this product
In ESP's Emergency Lighting range, the Duceri D120RWH is a wall-mounted emergency surface exit box in white, with a 3W LED, a lithium battery and a right legend included. Its 20 x SMD 2835 LEDs run at 5500 K.
Key features
- Steel housing with a polycarbonate legend; white
- Certified to BS EN 60598-2-22
- Right legend included; 25 m viewing distance
- Maintained and non-maintained operation
- 3.2V 1500mAh LiFePO4 battery, 3 hour battery duration; replacement battery D001
- 20 x SMD 2835 LEDs, 5500 K; LED life 40000 hours
- Green LED charging indicator
- Charge and discharge protection
Frequently asked questions
Which legend comes with the D120RWH?
A right legend is included.
What colour is it?
White, on a steel housing with a polycarbonate legend.
What is its battery duration?
3 hours, with its 3.2V 1500mAh LiFePO4 battery.
How is it mounted?
It is wall mounted; it measures 390 x 190 x 60 mm.
Which standard is it certified to?
BS EN 60598-2-22.
-
Download
- D120RWH Tech Sheet
£
24
65
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
390 x 190 x 60
Colour Temperature (K)
5500
Colour
White
LED Lamp Type
20 x SMD 2835
Materials
Steel housing
LED Life (Hours)
40000
Weight (Kg)
1.3
Emergency Operation
Maintained or Non-Maintained
Warranty (Years)
5
Status Indication
Green LED
Supply Voltage (V AC)
220 - 240
Viewing Distance (m)
25
Frequency (Hz)
50
Safety
Charge & Discharge Protection
Battery Duration (Hours)
3
Safety Class
I
Power Consumption (W)
4
Power Consumption (A)
0.03
Operating Temperature (°C)
0 to +45
GTIN
5060654467074
Commodity Code
9405618010
Replacement Battery
D001
Battery Specification
3.2V 1500mAh LiFePO4
Mounting
Wall
Ingress Protection
IP20
Standards
BS EN 60598-2-22
Dimensions
Dimensions (mm)
390 x 190 x 60
Specifications
| Dimensions (mm) | 390 x 190 x 60 |
|---|---|
| Colour Temperature (K) | 5500 |
| Colour | White |
| LED Lamp Type | 20 x SMD 2835 |
| Materials | Steel housing |
| LED Life (Hours) | 40000 |
| Weight (Kg) | 1.3 |
| Emergency Operation | Maintained or Non-Maintained |
| Warranty (Years) | 5 |
| Status Indication | Green LED |
| Supply Voltage (V AC) | 220 - 240 |
| Viewing Distance (m) | 25 |
| Frequency (Hz) | 50 |
| Safety | Charge & Discharge Protection |
| Battery Duration (Hours) | 3 |
| Safety Class | I |
| Power Consumption (W) | 4 |
| Power Consumption (A) | 0.03 |
| Operating Temperature (°C) | 0 to +45 |
| GTIN | 5060654467074 |
| Commodity Code | 9405618010 |
| Replacement Battery | D001 |
| Battery Specification | 3.2V 1500mAh LiFePO4 |
| Mounting | Wall |
| Ingress Protection | IP20 |
| Standards | BS EN 60598-2-22 |
Dimensions
| Dimensions (mm) | 390 x 190 x 60 |
|---|
Emergency Surface Exit Box 3W LED IP20 Right Legend Lithium Battery Switchable White features
Duceri D120RWH Fire Exit Sign, Surface Exit Box, 3W LED IP20 Right Legend Lithium Battery Switchable White
