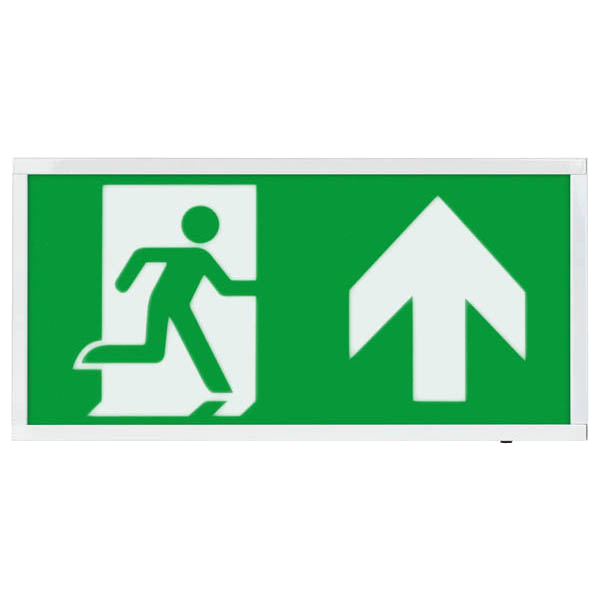

Duceri D120SUWH Fire Exit Sign, Surface Exit Box, 3W LED IP20 Up Legend Lithium Battery Switchable Self-Test White
£
25
22
(Incl. VAT)
5 Years Warranty
Emergency Surface Exit Box 3W LED IP20 Up Legend Lithium Battery Switchable Self-Test White
About this product
About this product
The Duceri D120SUWH, from ESP's Emergency Lighting range, is a white 3W LED emergency surface exit box for wall mounting, with an up legend included, for maintained or non-maintained operation. Battery duration is 3 hours, and the self-test facility can be enabled or disabled.
Key features
- Maintained and non-maintained operation
- Up legend included; 25 m viewing distance
- 20 x SMD 2835 LEDs, 5500 K
- 3.2V 1800mAh LiFePO4 battery, 3 hour battery duration
- Self-test facility that can be enabled or disabled
- Green LED charging indicator
- Charge and discharge protection
- Certified to BS EN 60598-2-22 & BS EN 62034
Frequently asked questions
Can the D120SUWH run maintained?
Yes. It runs maintained or non-maintained.
What is its battery duration?
3 hours, from a 3.2V 1800mAh LiFePO4 battery.
Is a legend included?
Yes. An up legend is included.
Which standards is it certified to?
BS EN 60598-2-22 & BS EN 62034.
What is the replacement battery?
D001S.
-
Download
- D120SUWH Tech Sheet
£
25
22
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
390 x 190 x 60
Colour Temperature (K)
5500
Colour
White
LED Lamp Type
20 x SMD 2835
Materials
Steel housing
LED Life (Hours)
40000
Weight (Kg)
1.3
Self-Test Facility
Facility to Enable or Disable
Warranty (Years)
5
Emergency Operation
Maintained or Non-Maintained
Supply Voltage (V AC)
220 - 240
Replacement Battery
D001S
Frequency (Hz)
50
Viewing Distance (m)
25
Safety
Charge & Discharge Protection
Safety Class
I
Battery Duration (Hours)
3
Power Consumption (W)
4
Power Consumption (A)
0.03
Operating Temperature (°C)
0 to +45
GTIN
5061064590123
Commodity Code
9405618010
Status Indication
Green LED
Battery Specification
3.2V 1800mAh LiFePO4
Mounting
Wall
Ingress Protection
IP20
Certification
BS EN 60598-2-22 & BS EN 62034
Dimensions
Dimensions (mm)
390 x 190 x 60
Specifications
| Dimensions (mm) | 390 x 190 x 60 |
|---|---|
| Colour Temperature (K) | 5500 |
| Colour | White |
| LED Lamp Type | 20 x SMD 2835 |
| Materials | Steel housing |
| LED Life (Hours) | 40000 |
| Weight (Kg) | 1.3 |
| Self-Test Facility | Facility to Enable or Disable |
| Warranty (Years) | 5 |
| Emergency Operation | Maintained or Non-Maintained |
| Supply Voltage (V AC) | 220 - 240 |
| Replacement Battery | D001S |
| Frequency (Hz) | 50 |
| Viewing Distance (m) | 25 |
| Safety | Charge & Discharge Protection |
| Safety Class | I |
| Battery Duration (Hours) | 3 |
| Power Consumption (W) | 4 |
| Power Consumption (A) | 0.03 |
| Operating Temperature (°C) | 0 to +45 |
| GTIN | 5061064590123 |
| Commodity Code | 9405618010 |
| Status Indication | Green LED |
| Battery Specification | 3.2V 1800mAh LiFePO4 |
| Mounting | Wall |
| Ingress Protection | IP20 |
| Certification | BS EN 60598-2-22 & BS EN 62034 |
Dimensions
| Dimensions (mm) | 390 x 190 x 60 |
|---|
Emergency Surface Exit Box 3W LED IP20 Up Legend Lithium Battery Switchable Self-Test White features
Duceri D120SUWH Fire Exit Sign, Surface Exit Box, 3W LED IP20 Up Legend Lithium Battery Switchable Self-Test White
