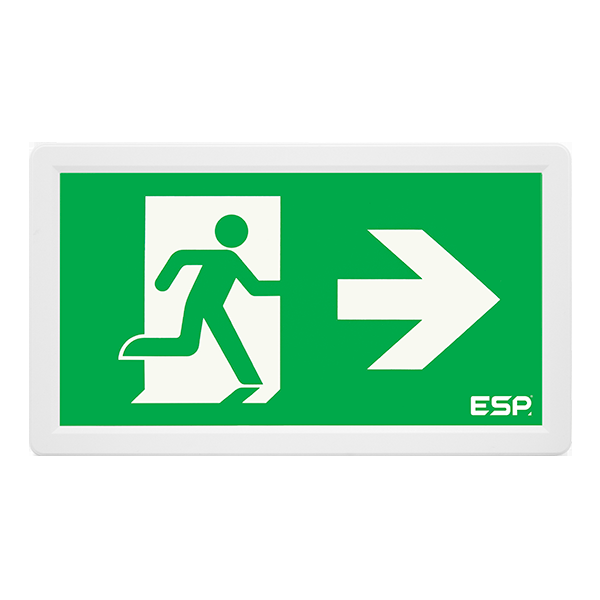

Duceri D121SAWH Emergency Surface Slimline Exit Box 3W LED IP20 All Legends Lithium Battery Maintained Switchable Self-Test White
£
29
68
(Incl. VAT)
5 Years Warranty
Emergency Surface Slimline Exit Box 3W LED IP20 All Legends Lithium Battery Maintained Switchable Self-Test White
About this product
About this product
The Duceri D121SAWH, from ESP's Emergency Lighting range, is a 3W LED emergency surface slimline exit box with a lithium battery, complete with all 4 directional legends. It runs maintained or non-maintained, and its self-test facility can be enabled or disabled.
Key features
- Maintained or non-maintained operation
- Self-test facility that can be enabled or disabled; green LED status indication
- 20 x SMD 3014 & 4 x SMD 2835 LEDs, colour temperature 6000 K
- Luminous flux: 48 lm on mains, 36 lm in emergency
- 3.2V 1800mAh LiFePO4 battery; battery duration 3 hours
- Viewing distance 30 m
- Complete with all 4 directional legends
- Certified to BS EN 60598-2-22 & BS EN 62034
Frequently asked questions
Does the D121SAWH run maintained or non-maintained?
Either: its emergency operation is maintained or non-maintained.
Which legends come with it?
It is complete with all 4 directional legends.
What battery does it use?
A 3.2V 1800mAh LiFePO4 battery, with a battery duration of 3 hours. The replacement battery is the D001S.
Can the self-test be switched off?
Yes. The self-test facility can be enabled or disabled.
Which standards is it certified to?
BS EN 60598-2-22 & BS EN 62034.
-
Download
- D121SAWH Tech Sheet
£
29
68
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
320 x 185 x 26
Colour Temperature (K)
6000
Legend Dimensions (mm)
300 x 163.5
Mains Luminous Flux (Lm)
48
Materials
Polycarbonate Frame, and PVC Legends
Emergency Luminous Flux (Lm)
36
Mounting
Wall
LED Life (Hours)
40000
Warranty (Years)
5
Self-Test Facility
Facility to Enable or Disable
Supply Voltage (V AC)
220 - 240
Status Indication
Green LED
Frequency (Hz)
50
Replacement Battery
D001S
Safety
Charge & Discharge Protection
Viewing Distance (m)
30
Power Consumption (W)
3
Operating Temperature (°C)
0 to +45
Weight
0.68 kg
GTIN
5061064590345
Commodity Code
9405698090
LED Lamp Type
20 x SMD 3014 & 4 x SMD 2835
Emergency Operation
Maintained or Non-Maintained
Battery Specification
3.2V 1800mAh LiFePO4
Battery Duration (Hours)
3
Ingress Protection
IP20
Features
Complete with all 4 directional Legends
Certification
BS EN 60598-2-22 & BS EN 62034
Dimensions
Dimensions (mm)
320 x 185 x 26
Specifications
| Dimensions (mm) | 320 x 185 x 26 |
|---|---|
| Colour Temperature (K) | 6000 |
| Legend Dimensions (mm) | 300 x 163.5 |
| Mains Luminous Flux (Lm) | 48 |
| Materials | Polycarbonate Frame, and PVC Legends |
| Emergency Luminous Flux (Lm) | 36 |
| Mounting | Wall |
| LED Life (Hours) | 40000 |
| Warranty (Years) | 5 |
| Self-Test Facility | Facility to Enable or Disable |
| Supply Voltage (V AC) | 220 - 240 |
| Status Indication | Green LED |
| Frequency (Hz) | 50 |
| Replacement Battery | D001S |
| Safety | Charge & Discharge Protection |
| Viewing Distance (m) | 30 |
| Power Consumption (W) | 3 |
| Operating Temperature (°C) | 0 to +45 |
| Weight | 0.68 kg |
| GTIN | 5061064590345 |
| Commodity Code | 9405698090 |
| LED Lamp Type | 20 x SMD 3014 & 4 x SMD 2835 |
| Emergency Operation | Maintained or Non-Maintained |
| Battery Specification | 3.2V 1800mAh LiFePO4 |
| Battery Duration (Hours) | 3 |
| Ingress Protection | IP20 |
| Features | Complete with all 4 directional Legends |
| Certification | BS EN 60598-2-22 & BS EN 62034 |
Dimensions
| Dimensions (mm) | 320 x 185 x 26 |
|---|
