Duceri D330AWH Fire Exit Sign, Hanging, 3W LED IP20 All Legends Lithium Battery Maintained White
£
36
85
(Incl. VAT)
5 Years Warranty
Emergency Hanging Exit Sign 3W LED IP20 All Legends Lithium Battery Maintained White
About this product
About this product

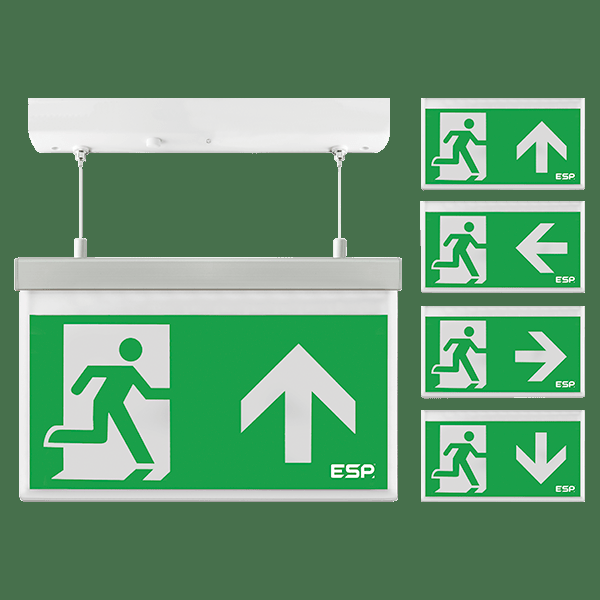

The Duceri D330AWH is a white 3W LED hanging exit sign from ESP's Emergency Lighting range, with a lithium battery and all legends included. It is ceiling mounted, the legend is adjustable up to 650mm, and it runs maintained or non-maintained.
Key features
- All legends included; legend adjustable up to 650mm
- Maintained & non-maintained operation
- 16 x SMD 2835 LEDs, 5500 K; mains 60 lm, emergency 44 lm; LED life 40000 hours
- Viewing distance 24 m
- 3.2V 1500mAh LiFePO4 battery, 3 hour battery duration; replacement battery D001P
- Green LED charging indicator; charge and discharge protection
- Polycarbonate frame with a double sided PVC legend; ceiling mounted
- BS EN 60598-2-22 standards
Frequently asked questions
Which legends come with the D330AWH?
All legends are included.
How is it mounted?
It hangs from a ceiling mounting; the legend is adjustable up to 650mm.
Is it maintained or non-maintained?
It offers maintained & non-maintained operation.
How long does it run in emergency?
3 hours' battery duration, with its 3.2V 1500mAh LiFePO4 battery.
What is the replacement battery?
The D001P.
-
Download
- D330AWH Tech Sheet
£
36
85
Price
Technical Details
Specifications
Dimensions (mm)
305 x 225 x 45
Colour Temperature (K)
5500
Legend Dimensions (mm)
156 x 300
Mains Luminous Flux (Lm)
60
Colour
White
Emergency Luminous Flux (Lm)
44
Materials
Polycarbonate Frame & Double Sided PVC Legend
LED Lamp Type
16 x SMD 2835
Weight (Kg)
1.13
Emergency Operation
Maintained
Warranty (Years)
5
Status Indication
Green LED
Supply Voltage (V AC)
220 - 240
Viewing Distance (m)
24
Frequency (Hz)
50
Power Consumption (W)
3
Battery Duration (Hours)
3
Power Consumption (A)
0.019
Operating Temperature (°C)
0 to +45
Relative Humidity Resistance (%)
<90
GTIN
5060654467227
Commodity Code
9405618010
LED Life (Hours)
40000
Replacement Battery
D001P
Battery Specification
3.2V 1500mAh LiFePO4
Mounting
Ceiling
Ingress Protection
IP20
Features
All legends included; Legend adjustable up to 650mm
Standards
BS EN 60598-2-22
Dimensions
Dimensions (mm)
305 x 225 x 45
Specifications
| Dimensions (mm) | 305 x 225 x 45 |
|---|---|
| Colour Temperature (K) | 5500 |
| Legend Dimensions (mm) | 156 x 300 |
| Mains Luminous Flux (Lm) | 60 |
| Colour | White |
| Emergency Luminous Flux (Lm) | 44 |
| Materials | Polycarbonate Frame & Double Sided PVC Legend |
| LED Lamp Type | 16 x SMD 2835 |
| Weight (Kg) | 1.13 |
| Emergency Operation | Maintained |
| Warranty (Years) | 5 |
| Status Indication | Green LED |
| Supply Voltage (V AC) | 220 - 240 |
| Viewing Distance (m) | 24 |
| Frequency (Hz) | 50 |
| Power Consumption (W) | 3 |
| Battery Duration (Hours) | 3 |
| Power Consumption (A) | 0.019 |
| Operating Temperature (°C) | 0 to +45 |
| Relative Humidity Resistance (%) | <90 |
| GTIN | 5060654467227 |
| Commodity Code | 9405618010 |
| LED Life (Hours) | 40000 |
| Replacement Battery | D001P |
| Battery Specification | 3.2V 1500mAh LiFePO4 |
| Mounting | Ceiling |
| Ingress Protection | IP20 |
| Features | All legends included; Legend adjustable up to 650mm |
| Standards | BS EN 60598-2-22 |
Dimensions
| Dimensions (mm) | 305 x 225 x 45 |
|---|
