Duceri D330SAWH Emergency Hanging Exit Sign 3W LED IP20 All Legends Lithium Battery Switchable Self-Test White
£
36
85
(Incl. VAT)
5 Years Warranty
Emergency Hanging Exit Sign 3W LED IP20 All Legends Lithium Battery Switchable Self-Test White
About this product
About this product

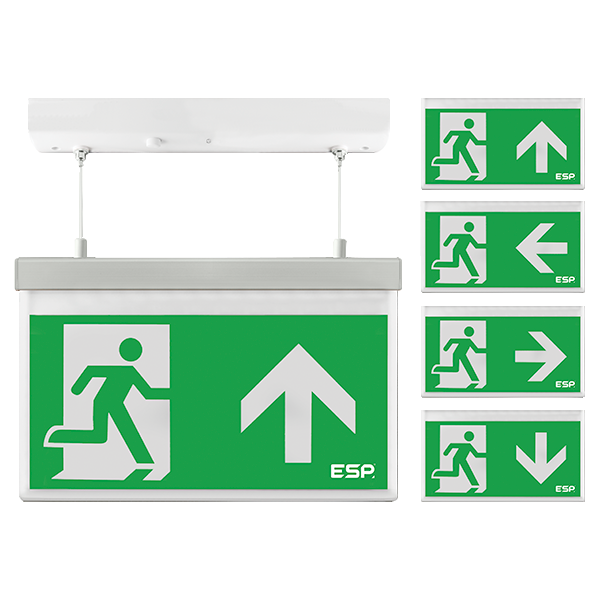

The Duceri D330SAWH, from ESP's Emergency Lighting range, is a white emergency hanging exit sign: 3W LED, IP20, ceiling mounted, with a lithium battery and a self-test facility that can be enabled or disabled. It is complete with all 4 directional legends, and the legend is adjustable up to 650mm.
Key features
- Maintained & non-maintained operation
- Self-test facility: enable or disable
- 16 x SMD 2835 LEDs; 5500 K; mains 60 lm, emergency 44 lm; LED life 40000 hours
- Viewing distance 24 m
- 3.2V 1800mAh LiFePO4 battery: 3 hours' battery duration
- Replacement battery: D001PS
- Complete with all 4 directional legends; legend adjustable up to 650mm
- Green LED charging indicator; charge & discharge protection
Frequently asked questions
Which legends come with the D330SAWH?
It is complete with all 4 directional legends.
Is it maintained or non-maintained?
It offers maintained & non-maintained operation.
How long does it run in emergency?
3 hours' battery duration from its 3.2V 1800mAh LiFePO4 battery.
How is it mounted?
Ceiling mounting, as a hanging sign; the legend is adjustable up to 650mm.
What is the replacement battery?
The D001PS.
-
Download
- D330SAWH Tech Sheet
£
36
85
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
305 x 225 x 45
Colour Temperature (K)
5500
Legend Dimensions (mm)
156 x 300
Mains Luminous Flux (Lm)
60
Colour
White
Emergency Luminous Flux (Lm)
44
Materials
Polycarbonate Frame & Double Sided PVC Legend
LED Lamp Type
16 x SMD 2835
Weight (Kg)
1.13
Self-Test Facility
Facility to Enable or Disable
Warranty (Years)
5
Emergency Operation
Maintained
Supply Voltage (V AC)
220 - 240
Replacement Battery
D001PS
Frequency (Hz)
50
Viewing Distance (m)
24
Safety
Charge & Discharge Protection
Power Consumption (W)
3
Battery Duration (Hours)
3
Power Consumption (A)
0.019
Operating Temperature (°C)
0 to +45
Relative Humidity Resistance (%)
<90
GTIN
5061064590260
Commodity Code
9405618010
LED Life (Hours)
40000
Status Indication
Green LED
Battery Specification
3.2V 1800mAh LiFePO4
Mounting
Ceiling
Ingress Protection
IP20
Features
Complete with all 4 directional Legends
Dimensions
Dimensions (mm)
305 x 225 x 45
Specifications
| Dimensions (mm) | 305 x 225 x 45 |
|---|---|
| Colour Temperature (K) | 5500 |
| Legend Dimensions (mm) | 156 x 300 |
| Mains Luminous Flux (Lm) | 60 |
| Colour | White |
| Emergency Luminous Flux (Lm) | 44 |
| Materials | Polycarbonate Frame & Double Sided PVC Legend |
| LED Lamp Type | 16 x SMD 2835 |
| Weight (Kg) | 1.13 |
| Self-Test Facility | Facility to Enable or Disable |
| Warranty (Years) | 5 |
| Emergency Operation | Maintained |
| Supply Voltage (V AC) | 220 - 240 |
| Replacement Battery | D001PS |
| Frequency (Hz) | 50 |
| Viewing Distance (m) | 24 |
| Safety | Charge & Discharge Protection |
| Power Consumption (W) | 3 |
| Battery Duration (Hours) | 3 |
| Power Consumption (A) | 0.019 |
| Operating Temperature (°C) | 0 to +45 |
| Relative Humidity Resistance (%) | <90 |
| GTIN | 5061064590260 |
| Commodity Code | 9405618010 |
| LED Life (Hours) | 40000 |
| Status Indication | Green LED |
| Battery Specification | 3.2V 1800mAh LiFePO4 |
| Mounting | Ceiling |
| Ingress Protection | IP20 |
| Features | Complete with all 4 directional Legends |
