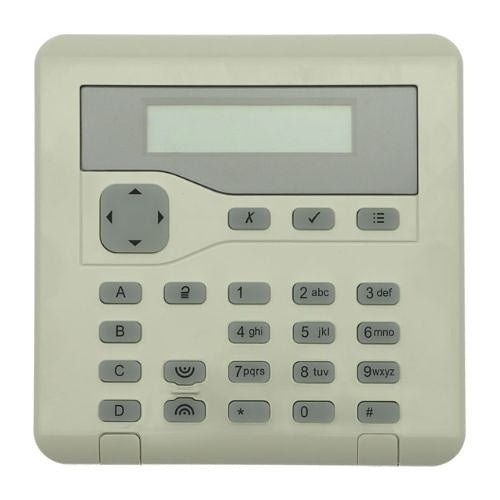

Eaton KEY-KP01 keypad, White

Visit Alarm Keypads
£ 89 26
(Incl. VAT)

About this product

Eaton KEY-KP01 is a keypad.

As well as having a modern, small and discreet design the KEY-K01, KEY-KP01 and KEY-KPZ01 have a choice of non-prox (K), prox (KP) or prox with zones (KPZ). The prox keypads have connections for an external prox reader to be connected in addition to the internal prox. To add greater flexibility to the KEY-KPZ01 you can select the option of having two zones on board for an even faster connection of zones.

Key features

  • A navigation key for easy access to the user and installer menus
  • A status LED that can be turned on or off from within the keypad menu
  • An internal prox reader (not available on the KEY-K01)
  • Built in panic button enabled in programming
  • One programmable transistorised output (KEY-KPZ01 Only)
  • External prox reader connections for KEY-EP (Not available on KEY-K01)

If you are matching this to an existing installation, work from the KEY-KP01 part number rather than the description.

£ 89 26
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£89.26 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Eaton
Manufacturer Part Number
KEY-KP01
Product Type
Security Keypad
Technical information
Connectivity Technology
Wired
Device Supported
Control Panel
Certifications
Security Grade
Grade 3
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-10°C
Physical characteristics
Colour
White
Depth
28.00mm
Height
128.00mm
Weight
200.00g
Width
128.00mm
Miscellaneous
Additional Information
Compliance: EN50131 Dimensions: 128x128x29mm Built in prox: KEY-KP01 Customisable: Customizable small screen lower insert remove unless we are going to have a solution in place "Panel software re
Compatibility
Scantronic I-ON16 Wireless Burglar Alarm Control Panel Scantronic I-ON40 Wireless Control Panel
Environmental certification
CE marking
Attributes
Compatibility
Scantronic I-ON16 Wireless Burglar Alarm Control Panel; Scantronic I-ON40 Wireless Control Panel
Device Supported
Control Panel
Weight
200.00g
Additional Information
Compliance: EN50131 Dimensions: 128x128x29mm Built in prox: KEY-KP01 Customisable: Customizable small screen lower insert remove unless we are going to have a solution in place "Panel software re
Specifications
Technical information
Certifications
Environmental conditions
Physical characteristics
Miscellaneous
Attributes

Specifications

Brand Name Eaton
Manufacturer Part Number KEY-KP01
Product Type Security Keypad

Technical information

Connectivity Technology Wired
Device Supported Control Panel

Certifications

Security Grade Grade 3

Environmental conditions

Maximum Operating Temperature 55°C
Minimum Operating Temperature -10°C

Physical characteristics

Colour White
Depth 28.00mm
Height 128.00mm
Weight 200.00g
Width 128.00mm

Miscellaneous

Additional Information Compliance: EN50131 Dimensions: 128x128x29mm Built in prox: KEY-KP01 Customisable: Customizable small screen lower insert remove unless we are going to have a solution in place "Panel software re
Compatibility Scantronic I-ON16 Wireless Burglar Alarm Control Panel Scantronic I-ON40 Wireless Control Panel
Environmental certification CE marking

Attributes

Compatibility Scantronic I-ON16 Wireless Burglar Alarm Control Panel; Scantronic I-ON40 Wireless Control Panel
Device Supported Control Panel
Weight 200.00g
Additional Information Compliance: EN50131 Dimensions: 128x128x29mm Built in prox: KEY-KP01 Customisable: Customizable small screen lower insert remove unless we are going to have a solution in place "Panel software re

Eaton KEY-KP01 keypad for alarm control panels and keypads

Eaton KEY-KP01 keypad, White

Who this is for

For the installer — this is the keypad supplied under Eaton part number KEY-KP01. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a keypad made by Eaton. The part number KEY-KP01 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this keypad is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is returnable under our standard returns terms. Faulty goods are handled separately and are never affected by a returns restriction.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact keypad I have been quoted? Check the manufacturer part number KEY-KP01 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against KEY-KP01 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
