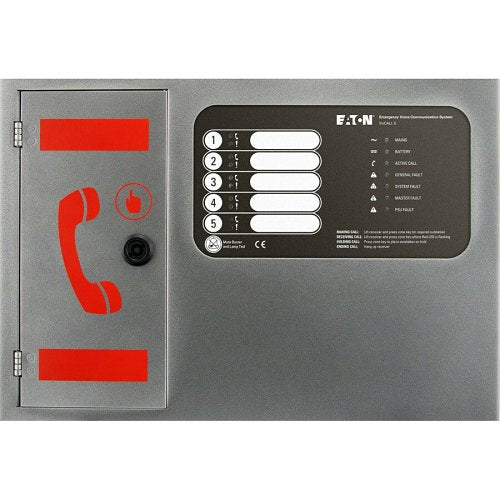

Eaton EFVCC5 personal emergency reporting system, Grey
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Eaton EFVCC5 is a personal emergency reporting system.
Eaton EFVCC5 VoCALL 16 Emergency voice communication system, Analogue, VoCALL, Master Panel, 5 lines, Wall Mounted, Grey / MetalThe VoCALL 5 emergency voice communication system (EVCS) is ideal for smaller installations which require up to 5 outstations or emergency assist alarms. The system comprises the Compact 5-line unit which controls up to 5 outstations (Type A, Type B, Emergency Assist Alarms or, in regions which allow their use, roaming handsets and jack plates). The standalone unit contains the systems master handset, power supply and connectivity for the 5 outstations.
20mm knockouts are provided for all system cabling and the housing is of ample size to support 2x 5Ah backup batteries (not supplied). The unit is microprocessor controlled but requires no on-site programming; it is fitted with end of line resistors which are simply discarded when an outstation is connected making installation quick and simple.
Key features
- Controls up to 5 outstations
- 5 line keys, 1 fault accept
- Monitored handset
- BS5839 part 9 compliant
- 17 status LEDs
- Surface mount panel or optional stainless steel flush mount cover
- Relay outputs
- Simple cabling, outstations connect directly into the master using 2 core radial fire rated cables
- In addition to Type A and Type B outstations the VoCALL 5 can also monitor Emergency Assist Alarms, and Jack type outstations for relevant regions.
- No programming required. The panel is fitted with end of line resistors which are discarded when an outstation or Emergency Assist Alarm is connected
If you are matching this to an existing installation, work from the EFVCC5 part number rather than the description.
Specifications
General information
Certifications
Physical characteristics
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Eaton |
|---|---|
| Manufacturer Part Number | EFVCC5 |
| Product Type | Personal Emergency Reporting System |
General information
| Application/Usage | Area of Refuge, Building, Emergency Phone |
|---|
Certifications
| RoHS compliance | Out of Scope |
|---|---|
| WEEE compliance | Out of Scope |
Physical characteristics
| Colour | Grey |
|---|---|
| Depth | 77.00mm |
| Height | 280.00mm |
| Material | Stainless Steel |
| Width | 397.00mm |
Product information
| Mount Type | Flush Mount, Panel Mount, Surface Mount |
|---|
Miscellaneous
| Compatibility | Emergency Assist Alarms, In Far and Middle East applications jack plates, Up to 5 outstations Type A, Type B |
|---|
Attributes
| Compatibility | Emergency Assist Alarms, In Far and Middle East applications jack plates, Up to 5 outstations Type A, Type B |
|---|---|
| Package Contents | VoCALL 5 Emergency Voice Communication Control Panel; 20mm Knockouts for ease of cabling |
