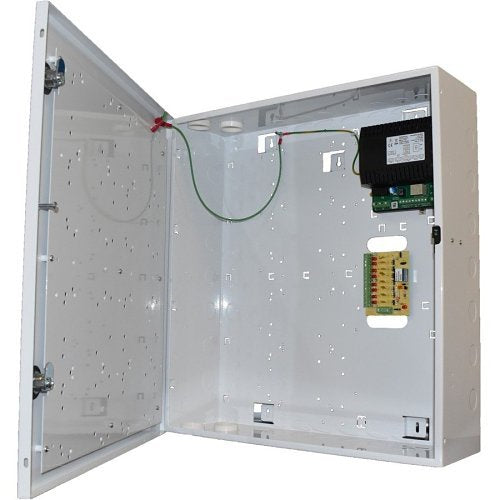

Elmdene by Potter ACCESS-UL-PSU1 power supply unit, Enclosure
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Elmdene by Potter ACCESS-UL-PSU1 is a power supply unit from the PSU range.
UL294 12V 4A PSU with 4 way fused output module in G box – 440 x 250 x 115mm
Key features
- Certified to UL294
- Compatible with most common Access Control boards
- PCB stand-off fixings supplied
- Enclosures engineered to accommodate multiple door controllers
- Cost effective switch mode technology
- Front & rear enclosure tampers
- Multi-fused outputs
- Mains Fail relay output
- Outputs independently controlled (Fire relay functionality)
- Full rated current to load + 0.5A battery charging
If you are matching this to an existing installation, work from the ACCESS-UL-PSU1 part number rather than the description.
Specifications
Technical information
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | Elmdene by Potter |
|---|---|
| Manufacturer Part Number | ACCESS-UL-PSU1 |
| Product Series | PSU |
| Product Type | Power Supply |
Technical information
| Amperage | 4.00A |
|---|---|
| Output Voltage | 13.8V DC |
Physical characteristics
| Depth | 115.00mm |
|---|---|
| Form Factor | Enclosure |
| Height | 440.00mm |
| Weight | 4.50kg |
| Width | 250.00mm |
Power description
| Input Voltage | 100-240V AC |
|---|---|
| Output Current | 4.0000A |
Miscellaneous
| Compatibility | Access Control Systems |
|---|---|
| Environmental certification | UL |
| Environmental status | Yes |
Attributes
| Amperage | 4.00A |
|---|---|
| Compatibility | Access Control Systems |
| Input Voltage | 100-240V AC |
| Output Current | 4.0000A |
| Output Voltage | 13.8V DC |
| Weight | 4.50kg |
