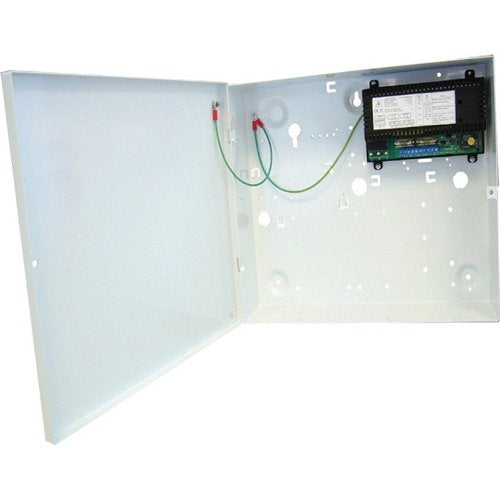

Elmdene by Potter GEN2-18-C power supply unit, Enclosure
About this product
Elmdene by Potter GEN2-18-C is a power supply unit.
12V d.c. Switch Mode PSU (13.8V) 1.5A to load plus additional current for battery charging. Grade 2 Intruder systems.
Mains, Battery and PSU volt-free fault outputs. Deep discharge protection. Diagnostic LEDs.
Lid tamper.
Key features
- Comprehensive Battery Management; Deep Discharge Protection, Battery Fault Detection (Grade 3), High Efficiency 3 Stage Charging (18Ah)
- Dedicated Fault Outputs; EPS Fault (mains fail), APS Fault (battery fault) (Grade 3), PSU Fault (general fault)
If you are matching this to an existing installation, work from the GEN2-18-C part number rather than the description.
Specifications
Technical information
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | Elmdene by Potter |
|---|---|
| Manufacturer Part Number | GEN2-18-C |
| Product Type | Power Supply |
Technical information
| Amperage | 5.00A |
|---|---|
| Output Voltage | 13.8V DC |
| Security Grade Expiration Date | 2028-03-15T00:00:00+00:00 |
Physical characteristics
| Depth | 80.00mm |
|---|---|
| Form Factor | Enclosure |
| Height | 275.00mm |
Power description
| Input Voltage | 230V AC |
|---|---|
| Output Current | 1.5000A |
Miscellaneous
| Compatibility | Intruder alarm systems |
|---|---|
| Environmental status | Yes |
Attributes
| Amperage | 5.00A |
|---|---|
| Compatibility | Intruder alarm systems |
| Input Voltage | 230V AC |
| Output Current | 1.5000A |
| Output Voltage | 13.8V DC |
