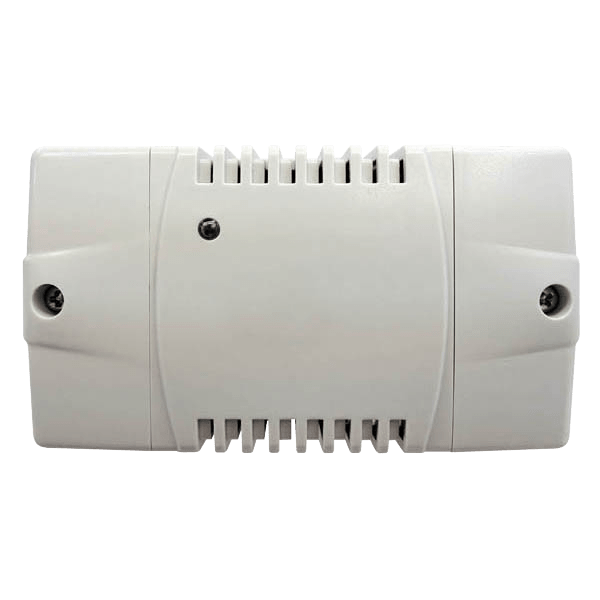

ESP EVBPSBB Boxed Power Supply

Visit Access Control Accessories
£ 25 42
(Incl. VAT)
2 Years Warranty
Boxed Power Supply
About this product

The ESP EVBPSBB, from ESP's Access Control range, is a 12V DC power supply unit with battery back up, suitable for both fail-safe and fail-secure locks. A coil input switches its 12V DC @ 1.5A lock output, and a second output gives a constant 12V @ 1A.

Key features

  • Lock output 12V DC @ 1.5A, for fail-safe or fail-secure locks
  • Constant output 12V @ 1A
  • 2 outputs; output type normally open or normally closed
  • Lock output switched by a coil input, energised with a normally open clean contact
  • Backup battery facility (requires battery): powers the unit on mains failure and charges 12V SLA batteries
  • Surface-mounted ABS box, 129 x 73 x 50 mm, IP20

Frequently asked questions

Which locks can the EVBPSBB power?

Fail-safe and fail-secure locks, from its 12V DC @ 1.5A lock output.

Does the EVBPSBB have battery backup?

It has a backup battery facility and requires a battery. With a battery connected it powers the unit on power failure, and it charges 12V SLA batteries.

Which batteries are listed for it?

BAT32 12V 3.2Ah, BAT7 12V 7Ah and BAT18 12V 17Ah SLA batteries.

What switches the lock output?

A coil input, energised with a normally open clean contact, switches the lock output over.

What is supplied with it?

Fixing screws and wall plugs, a user manual and battery cables.

£ 25 42
FAST delivery by Order within
Google Top Quality Store · Rated Exceptional
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£25.42 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Dimensions (mm)
129 x 73 x 50
Supply Voltage (V AC)
100 - 230
Materials
ABS
Input Type
Coil (to activate lock output switch over)
Warranty (Years)
2
Activation Type
Energise with a Normally Open Clean contact
Number of Outputs
2
Operating Temperature (°C)
0 to +50
Constant Output
12V @ 1A
Lock output
12V DC @ 1.5A
Supplied
Fixing Screws, and Wall Plugs, User Manual, Battery Cables
Optional Battery Backup
BAT32: 12V 3.2Ah SLA Battery
Additional Information
Upon Power Failure, if a battery is connected it will power the unit.
Output Type
Normally Open or Normally Closed
Mounting
Surface
Ingress Protection
IP20
Suitable For
Fail-Safe & Fail-Secure locks
Input Frequency (Hz)
50/60
Dimensions
Dimensions (mm)
129 x 73 x 50
Specifications
Dimensions

Specifications

Dimensions (mm) 129 x 73 x 50
Supply Voltage (V AC) 100 - 230
Materials ABS
Input Type Coil (to activate lock output switch over)
Warranty (Years) 2
Activation Type Energise with a Normally Open Clean contact
Number of Outputs 2
Operating Temperature (°C) 0 to +50
Constant Output 12V @ 1A
Lock output 12V DC @ 1.5A
Supplied Fixing Screws, and Wall Plugs, User Manual, Battery Cables
Optional Battery Backup BAT32: 12V 3.2Ah SLA Battery
Additional Information Upon Power Failure, if a battery is connected it will power the unit.
Output Type Normally Open or Normally Closed
Mounting Surface
Ingress Protection IP20
Suitable For Fail-Safe & Fail-Secure locks
Input Frequency (Hz) 50/60

Dimensions

Dimensions (mm) 129 x 73 x 50

Boxed Power Supply features

ESP EVBPSBB Boxed Power Supply

ESP EVBPSBB Boxed Power Supply

What it does

The EVBPSBB supplies 12V DC for door locks. Its lock output gives 12V DC @ 1.5A to fail-safe or fail-secure locks and switches over when the coil input is energised with a normally open clean contact; a separate constant output gives 12V @ 1A.

If a battery is connected, it powers the unit on power failure, and the unit charges 12V SLA batteries. BAT32 (12V 3.2Ah), BAT7 (12V 7Ah) and BAT18 (12V 17Ah) SLA batteries are listed accessories.

Installation notes

The ABS box is surface mounted, measures 129 x 73 x 50 mm, is rated IP20 and operates from 0 to +50 °C. It is supplied with fixing screws, wall plugs, a user manual and battery cables.

Other listed accessories include the EV-EXIT push to exit release button, the EV-EBG green emergency break glass, the ENTERD flush and ENTERD-YLR surface electronic locks, and the EV-ML-250 and EV-ML-500XT electromagnetic locks.
