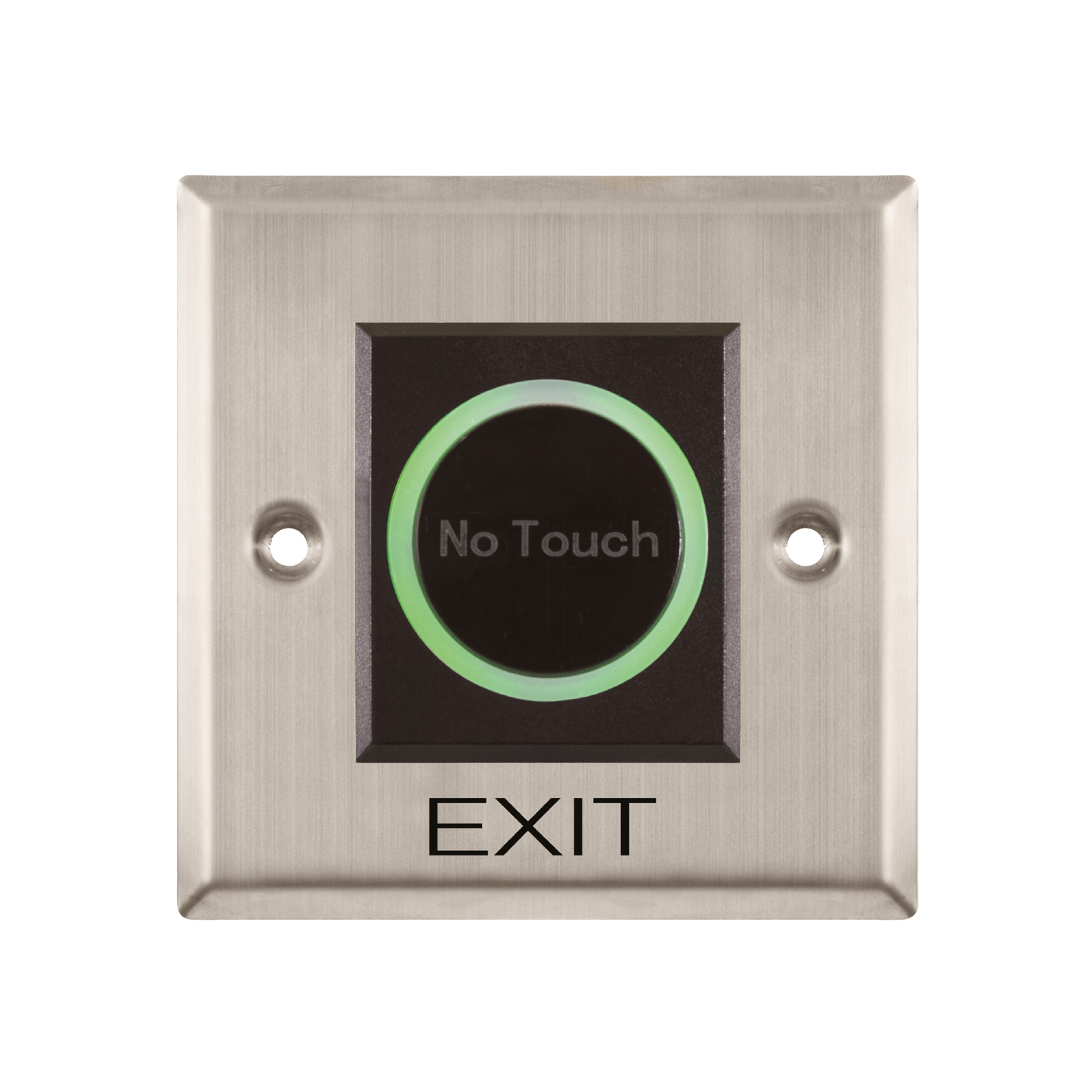

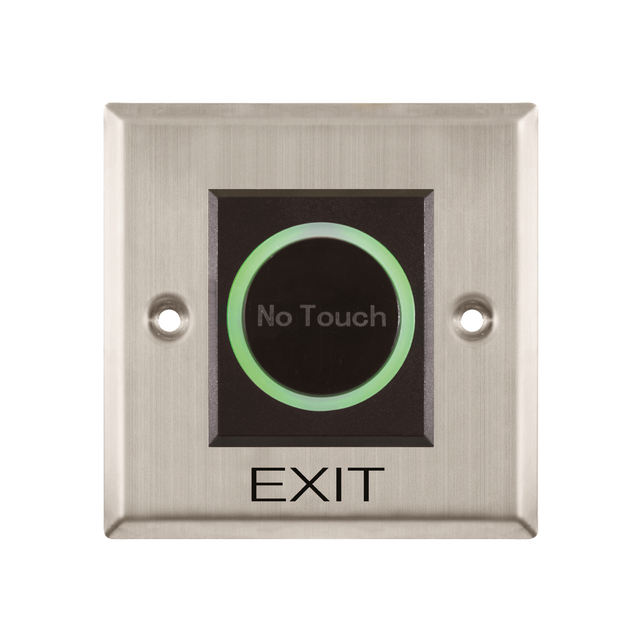

ESP EVEXITC Contactless Exit Button
£
24
40
(Incl. VAT)
2 Years Warranty
Contactless Exit Button
About this product
About this product
The Aperta EVEXITC, from ESP's Access Control range, is a contactless release exit button with an infrared sensor, worded "Exit" and "No Touch". It has normally open and closed contacts rated 12-28V, 3A.
Key features
- Contactless release exit button with an infrared sensor
- Adjustable infrared proximity sensor, 10 - 100 mm
- Normally open and closed contacts, 12-28V, 3A rated
- 12V DC input
- Worded "Exit" and "No Touch"
- Brushed steel, 86 x 86 x 29 mm
- Mechanical life of 500000 hours
Frequently asked questions
How is the EVEXITC operated?
It is contactless: an infrared sensor with an adjustable proximity range of 10 - 100 mm.
What contacts does it have?
Normally open and closed contacts, rated 12-28V, 3A.
What supply does it need?
A 12V DC input.
Is there a surface box for it?
Yes. The UDTASMBSS stainless steel surface box is an accessory for it.
What is its IP rating?
IP20.
-
Download
- EVEXITC Tech Sheet
£
24
40
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
86 x 86 x 29
Operating Voltage (V DC)
12
Clear Wording
"No Touch" & "EXIT"
Relay Voltage - Minimum (DC)
12
Materials
Brushed Steel
Relay Voltage - Maximum (DC)
28
Zone End Of Line
Infrared Sensor
Relay Resistive Load Rating (A)
3
Type
Infrared Sensor
Weight (Kg)
.25
Warranty (Years)
2
Operating Temperature (°C)
-20 to +55
Ingress Protection
IP20
Mechanical Life (Hours)
500000
Adjustable Infrared Proximity Sensor (mm)
10 -100
Accessories
UDTASMBSS: Stainless Steel Surface Box
Dimensions
Dimensions (mm)
86 x 86 x 29
Specifications
| Dimensions (mm) | 86 x 86 x 29 |
|---|---|
| Operating Voltage (V DC) | 12 |
| Clear Wording | "No Touch" & "EXIT" |
| Relay Voltage - Minimum (DC) | 12 |
| Materials | Brushed Steel |
| Relay Voltage - Maximum (DC) | 28 |
| Zone End Of Line | Infrared Sensor |
| Relay Resistive Load Rating (A) | 3 |
| Type | Infrared Sensor |
| Weight (Kg) | .25 |
| Warranty (Years) | 2 |
| Operating Temperature (°C) | -20 to +55 |
| Ingress Protection | IP20 |
| Mechanical Life (Hours) | 500000 |
| Adjustable Infrared Proximity Sensor (mm) | 10 -100 |
| Accessories | UDTASMBSS: Stainless Steel Surface Box |
Dimensions
| Dimensions (mm) | 86 x 86 x 29 |
|---|
Contactless Exit Button features
ESP EVEXITC Contactless Exit Button
