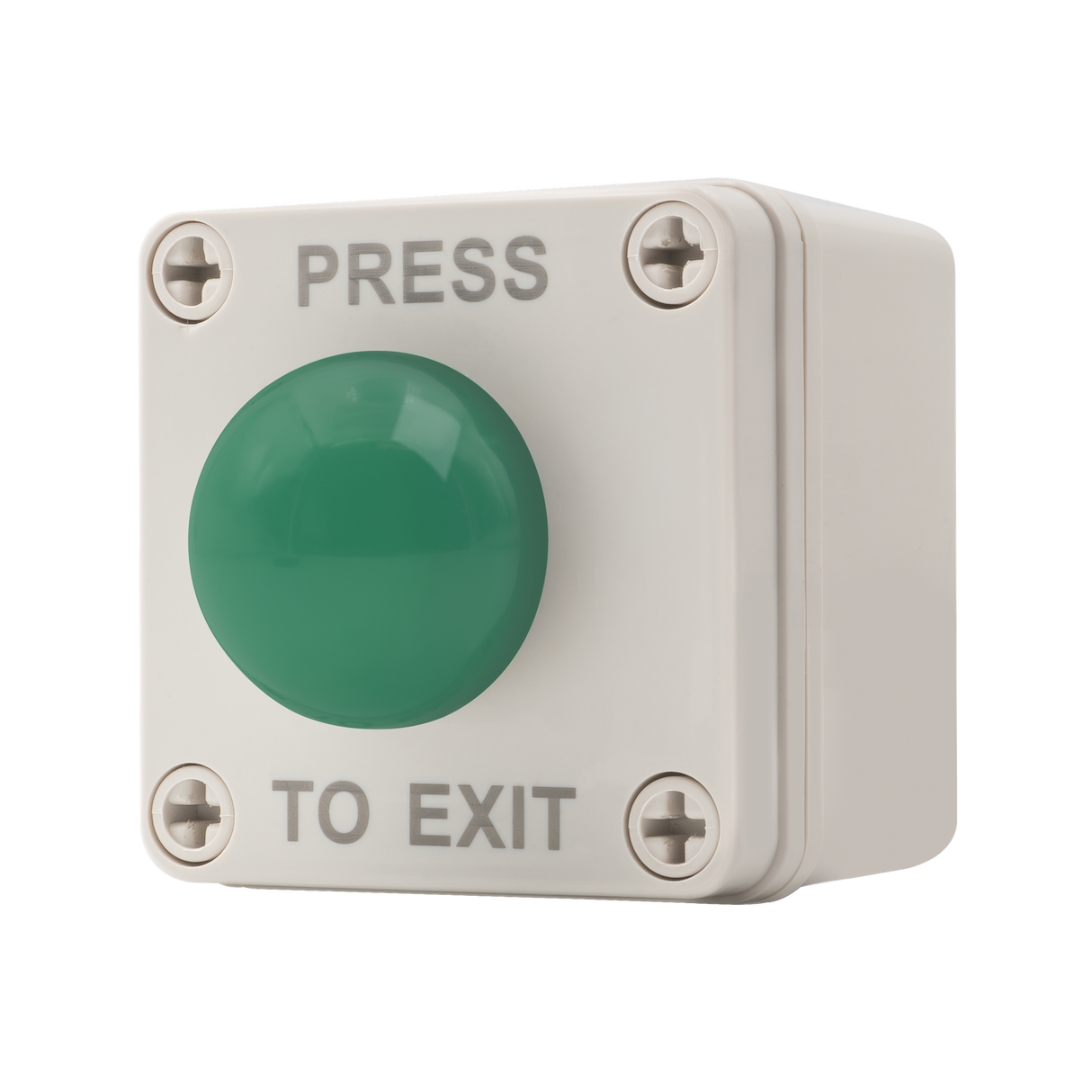

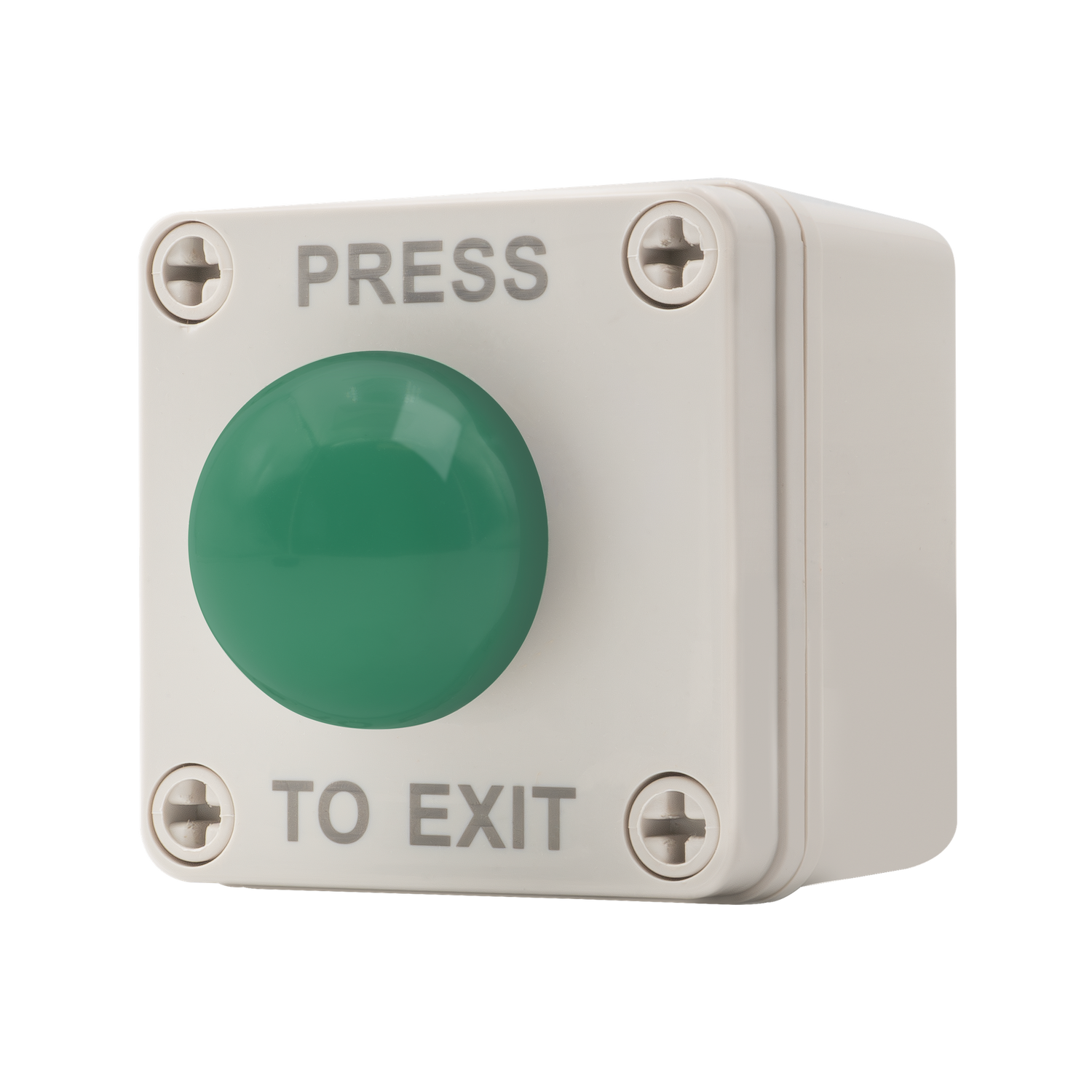

ESP EVEXITMIP55 Push to Exit Mushroom Release Button IP55
£
34
07
(Incl. VAT)
2 Years Warranty
Push to Exit Mushroom Release Button IP55
About this product
About this product
The ESP EVEXITMIP55, from ESP's Access Control range, is a push to exit mushroom release button with IP55 ingress protection and clear wording.
Key features
- Large mushroom exit button
- Normally open & closed contacts, clean contact output
- Relay voltage maximum 30 V DC
- Housing includes a surface mount box; surface mounting only
- ABS, 0.2 kg
- Operating temperature 0 to +50 °C
Frequently asked questions
Can the EVEXITMIP55 be flush mounted?
No: it is for surface mounting only, and its housing includes a surface mount box.
What contacts does it have?
Normally open & closed contacts, with a clean contact output.
What ingress protection does it have?
IP55.
What is supplied?
Fixing screws, wall plugs and a user manual.
-
Download
- EVEXITMIP55 Tech Sheet
£
34
07
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
80 x 80 x 92
Maximum Cable Size (mm²)
2.5
Materials
ABS
Type
Clean Contact
Mounting
Surface Only
Relay Voltage - Maximum (DC)
30
Weight (Kg)
0.2
Warranty (Years)
2
Operating Temperature (°C)
0 to +50
Supplied
Fixing Screws, and Wall Plugs, User Manual
Ingress Protection
IP55
Relay/Contact Type
Normally Open & Normally Closed
Dimensions
Dimensions (mm)
80 x 80 x 92
Specifications
| Dimensions (mm) | 80 x 80 x 92 |
|---|---|
| Maximum Cable Size (mm²) | 2.5 |
| Materials | ABS |
| Type | Clean Contact |
| Mounting | Surface Only |
| Relay Voltage - Maximum (DC) | 30 |
| Weight (Kg) | 0.2 |
| Warranty (Years) | 2 |
| Operating Temperature (°C) | 0 to +50 |
| Supplied | Fixing Screws, and Wall Plugs, User Manual |
| Ingress Protection | IP55 |
| Relay/Contact Type | Normally Open & Normally Closed |
Dimensions
| Dimensions (mm) | 80 x 80 x 92 |
|---|
Push to Exit Mushroom Release Button IP55 features
ESP EVEXITMIP55 Push to Exit Mushroom Release Button IP55
