ESP EVTRT Trades Button with Timer
£
110
12
(Incl. VAT)
2 Years Warranty
Trades Button with Timer
About this product
About this product

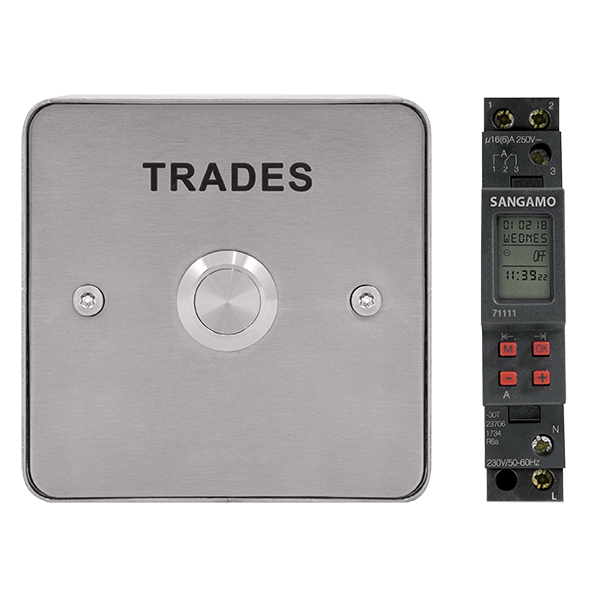

The Aperta EVTRT, from ESP's Access Control range, is a trade button with timer: an EVTR push button 'trades' unit and a 71111 1 module, 1 channel, 7 day timer with 46 operations. The button is a mechanical retractable switch on a single gang fascia, with a surface mount box and security screws included.
Key features
- Kit: EVTR push button 'trades' and 71111 7 day timer
- Button: mechanical retractable switch, SPDT, 30A (@250V AC)
- Button: stainless steel, IP66, -20 to +70 °C
- Single gang fascia with surface mount box and security screws; clear wording
- Timer: 24 hour and 7 day programmable, 46 operations, LCD display
- Timer switching modes ON, OFF, Pulse
- Timer: 230V AC, 16A @ 1.0pf SPDT output; surface or 35mm DIN-rail mounting
- Timer power reserve approx. 10 years @ 20°C
Frequently asked questions
What is in the EVTRT?
An EVTR push button 'trades' unit and a 71111 1 module, 1 channel, 7 day timer with 46 operations.
What is the button's IP rating?
IP66 (the timer is IP20).
How is the button mounted?
Surface only, on a single gang fascia; the surface mount box and security screws are included.
How is the timer programmed?
24 hour or 7 day, with 46 operations and ON, OFF and Pulse switching modes.
What can the timer output switch?
Its SPDT output is rated 230V AC, 16A @ 1.0pf.
-
Download
- EVTRT Tech Sheet
£
110
12
FAST delivery by Order within
Price
Technical Details
Specifications
Available Operations
46 Operations
Display
LCD Display
Quartz Crystal Accuracy (at 20°C)
≤ ± 0.5 Seconds / Day
Contact Type
SPDT
Power Consumption (W)
0.2-1
Power Reserve @ 20°C
10 Years (Approx.)
71111 IEC Protection Class
Class II When Installed According to Regulations
Schedule
24 Hour, and 7 Day Programmable
Switching Modes
ON, OFF, Pulse
Summer/Winter Time Change
Yes (Automatic)
Program Security
Unlimited (E2-PROM)
Pulse length - Timer (man. switching)
0:00:01 up to 9:59:59 h:mm:ss
Maximum LED Lamp Load Rating (W)
50 @ 230V
Contact Material
AgSnO²
Maximum Starting Current (A)
30
Minimum Switching power (mW)
300 (10V/10mA)
Warranty Years
2
Trades button (EVTR) dimensions (mm)
85.5 x 85.5 x 43.5
Timer (71111) dimensions (mm)
90 x 17.8 x 63
Trades button (EVTR) colour
Silver
Trades button (EVTR) materials
Stainless Steel
Timer (71111) materials
Self-Extinguishing Thermoplastic
Trades button (EVTR) mounting
Surface Only
Timer (71111) mounting
Surface Mounting or DIN
Trades button (EVTR) weight (Kg)
0.315
Trades button (EVTR) maximum cable size (mm²)
2.5
Trades button (EVTR) operation type
Mechanical Retractable Switch
Trades button (EVTR) operational life
100000
Trades button (EVTR) total switch rating
30A (@250V AC)
Timer (71111) total switch rating
230V AC, 16A @ 1.0pf
Trades button (EVTR) ingress protection
IP66
Timer (71111) ingress protection
IP20
Trades button (EVTR) operating temperature (°C)
-20 to +70
Timer (71111) operating temperature (°C)
-30 to +55
Timer (71111) maximum incandescent, halogen lamp load rating (W)
400
Timer (71111) maximum compact fluorescent lamp load rating (W)
50
Timer (71111) maximum fluorescent lamp with electronic ballast load rating (W)
100
Timer (71111) maximum fluorescent lamp with conventional ballast load rating (W)
100
Timer (71111) battery type
Replaceable CR2032
Timer (71111) distribution board mounting
35mm DIN-rail (DIN EN 60715)
Timer (71111) supply voltage (V AC)
230
Timer (71111) cable size (mm²)
0.5 - 2.5
Dimensions
Trades button (EVTR) (mm)
85.5 x 85.5 x 43.5
Timer (71111) (mm)
90 x 17.8 x 63
Specifications
| Available Operations | 46 Operations |
|---|---|
| Display | LCD Display |
| Quartz Crystal Accuracy (at 20°C) | ≤ ± 0.5 Seconds / Day |
| Contact Type | SPDT |
| Power Consumption (W) | 0.2-1 |
| Power Reserve @ 20°C | 10 Years (Approx.) |
| 71111 IEC Protection Class | Class II When Installed According to Regulations |
| Schedule | 24 Hour, and 7 Day Programmable |
| Switching Modes | ON, OFF, Pulse |
| Summer/Winter Time Change | Yes (Automatic) |
| Program Security | Unlimited (E2-PROM) |
| Pulse length - Timer (man. switching) | 0:00:01 up to 9:59:59 h:mm:ss |
| Maximum LED Lamp Load Rating (W) | 50 @ 230V |
| Contact Material | AgSnO² |
| Maximum Starting Current (A) | 30 |
| Minimum Switching power (mW) | 300 (10V/10mA) |
| Warranty Years | 2 |
| Trades button (EVTR) dimensions (mm) | 85.5 x 85.5 x 43.5 |
| Timer (71111) dimensions (mm) | 90 x 17.8 x 63 |
| Trades button (EVTR) colour | Silver |
| Trades button (EVTR) materials | Stainless Steel |
| Timer (71111) materials | Self-Extinguishing Thermoplastic |
| Trades button (EVTR) mounting | Surface Only |
| Timer (71111) mounting | Surface Mounting or DIN |
| Trades button (EVTR) weight (Kg) | 0.315 |
| Trades button (EVTR) maximum cable size (mm²) | 2.5 |
| Trades button (EVTR) operation type | Mechanical Retractable Switch |
| Trades button (EVTR) operational life | 100000 |
| Trades button (EVTR) total switch rating | 30A (@250V AC) |
| Timer (71111) total switch rating | 230V AC, 16A @ 1.0pf |
| Trades button (EVTR) ingress protection | IP66 |
| Timer (71111) ingress protection | IP20 |
| Trades button (EVTR) operating temperature (°C) | -20 to +70 |
| Timer (71111) operating temperature (°C) | -30 to +55 |
| Timer (71111) maximum incandescent, halogen lamp load rating (W) | 400 |
| Timer (71111) maximum compact fluorescent lamp load rating (W) | 50 |
| Timer (71111) maximum fluorescent lamp with electronic ballast load rating (W) | 100 |
| Timer (71111) maximum fluorescent lamp with conventional ballast load rating (W) | 100 |
| Timer (71111) battery type | Replaceable CR2032 |
| Timer (71111) distribution board mounting | 35mm DIN-rail (DIN EN 60715) |
| Timer (71111) supply voltage (V AC) | 230 |
| Timer (71111) cable size (mm²) | 0.5 - 2.5 |
Dimensions
| Trades button (EVTR) (mm) | 85.5 x 85.5 x 43.5 |
|---|---|
| Timer (71111) (mm) | 90 x 17.8 x 63 |
