ESP IPWFBW IP Wireless Bridge White
£
88
63
(Incl. VAT)
2 Years Warranty
IP Wireless Bridge White
About this product
About this product

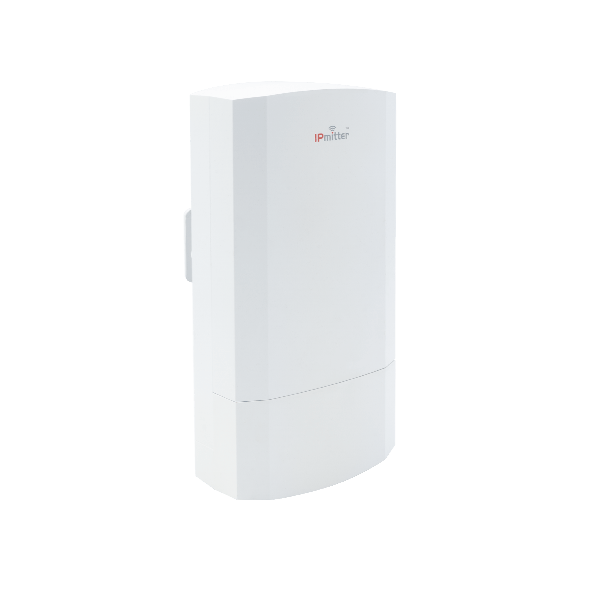

The ESP IPWFBW, from ESP's CCTV range, is a white IP 5.8GHz wireless bridge with an open field range of 700m (recommended 350m). It can operate as a host or client and supports 1 - 1 and 1 - multiple pairing.
Key features
- 5.8GHz wireless bridge, open field range 700m (recommended 350m)
- Operates as a host or client
- Supports 1 - 1 and 1 - multiple pairing; up to 4 clients supported
- 12 V DC operating voltage; PoE (IEEE802.3af) power source
- Power supply not included
- 1m, 4 pair cat5e UDP cable supplied
- Wall or pole mounting; white plastic, 88 x 165 x 56 mm
Frequently asked questions
What range does the IPWFBW have?
700m in open field, with 350m recommended.
How many clients can it support?
Up to 4.
Can it be a host or a client?
Yes, it can operate as a host or client.
How is it powered?
Its operating voltage is 12 V DC, and its PoE power source is PoE (IEEE802.3af). A power supply is not included.
What is supplied with it?
A 1m, 4 pair cat5e UDP cable.
-
Download
- IPWFBW Tech Sheet
£
88
63
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
88x 165x 56
Colour
White
Materials
Plastic
Mounting
Wall or Pole
Cable Supplied
1m, 4 pair cat5e UDP
Weight (Kg)
0.243
Warranty (Years)
2
Operating Voltage (V DC)
12
Wireless Frequency
5.8GHz
Wireless Range - Open Field (M)
700m (recommended 350m)
PoE Power Source
PoE (IEEE802.3af)
Power Supply
Not included
Number of Clients Supported
Up to 4
Pairing
Supports 1 - 1 Pairing; Supports 1-Multiple Pairing
Dimensions
Dimensions (mm)
88x 165x 56
Specifications
| Dimensions (mm) | 88x 165x 56 |
|---|---|
| Colour | White |
| Materials | Plastic |
| Mounting | Wall or Pole |
| Cable Supplied | 1m, 4 pair cat5e UDP |
| Weight (Kg) | 0.243 |
| Warranty (Years) | 2 |
| Operating Voltage (V DC) | 12 |
| Wireless Frequency | 5.8GHz |
| Wireless Range - Open Field (M) | 700m (recommended 350m) |
| PoE Power Source | PoE (IEEE802.3af) |
| Power Supply | Not included |
| Number of Clients Supported | Up to 4 |
| Pairing | Supports 1 - 1 Pairing; Supports 1-Multiple Pairing |
Dimensions
| Dimensions (mm) | 88x 165x 56 |
|---|
IP Wireless Bridge White features
ESP IPWFBW IP Wireless Bridge White
