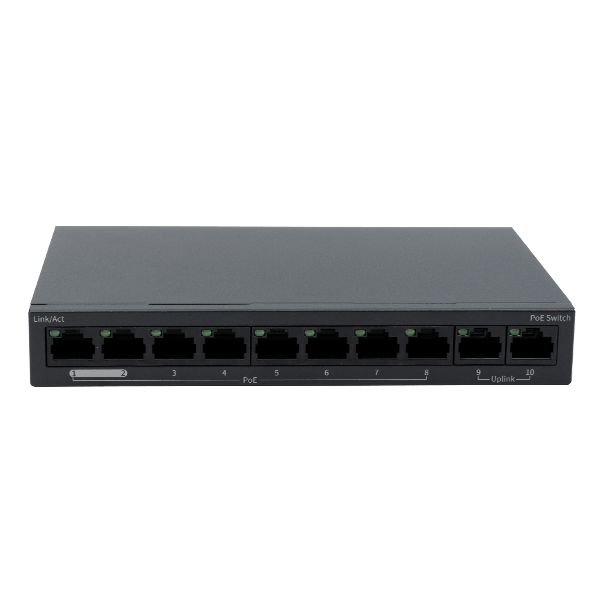

ESP S8POE 8 Port PoE Switch
£
78
68
(Incl. VAT)
2 Years Warranty
8 Port PoE Switch
About this product
About this product
The ESP S8POE, from ESP's CCTV range, is an 8 port PoE switch with 10×100Mbps RJ45 network ports, 8 of them PoE. Its maximum PoE capacity is 88W, and 30W on a single port.
Key features
- 10×100Mbps RJ45 network ports, including 8 PoE ports
- PoE output: maximum capacity 88W; maximum capacity for a single port 30W
- IEEE 802.3af/at PoE
- Up to 250m cable length per channel
- 48 - 51 V DC operating voltage; a 48 to 51V AC adapter is supplied
- Galvanised steel, surface mounting, 171 x 101 x 25.5 mm
Frequently asked questions
How many PoE ports does the S8POE have?
8, out of 10×100Mbps RJ45 network ports.
What is the PoE budget?
Maximum capacity 88W, and 30W on a single port.
What cable length does it support?
Up to 250m cable length per channel.
Which PoE standard does it use?
IEEE 802.3af/at.
What is supplied with it?
A 48 to 51V AC adapter and a user guide.
-
Download
- S8POE Tech Sheet
£
78
68
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
171 x 101 x 25.5
Weight (Kg)
0.29
Warranty (Years)
2
Operating Voltage (V DC)
48 - 51
PoE Output (W)
Maximum capacity: 88W, Maximum capacity for single port: 30W
PoE Ports
802.3at/af (4/5+, 7/8-)
Operating Temperature (°C)
0 to +40
Relative Humidity Resistance (%)
10 to 90
Supplied
48 to 51V AC Adapter, User Guide
Ports
10×100Mbps network ports (RJ45), including 8 PoE ports
PoE Standard
IEEE 802.3af/at
Standards
IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Power Consumption (W)
93
Materials
Galvanised Steel
Mounting
Surface
Dimensions
Dimensions (mm)
171 x 101 x 25.5
Specifications
| Dimensions (mm) | 171 x 101 x 25.5 |
|---|---|
| Weight (Kg) | 0.29 |
| Warranty (Years) | 2 |
| Operating Voltage (V DC) | 48 - 51 |
| PoE Output (W) | Maximum capacity: 88W, Maximum capacity for single port: 30W |
| PoE Ports | 802.3at/af (4/5+, 7/8-) |
| Operating Temperature (°C) | 0 to +40 |
| Relative Humidity Resistance (%) | 10 to 90 |
| Supplied | 48 to 51V AC Adapter, User Guide |
| Ports | 10×100Mbps network ports (RJ45), including 8 PoE ports |
| PoE Standard | IEEE 802.3af/at |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at |
| Power Consumption (W) | 93 |
| Materials | Galvanised Steel |
| Mounting | Surface |
Dimensions
| Dimensions (mm) | 171 x 101 x 25.5 |
|---|
8 Port PoE Switch features
