ESP CAB-20 20m Power and BNC Video Cable
£
10
63
(Incl. VAT)
2 Years Warranty
20m Power and BNC Video Cable
About this product
About this product

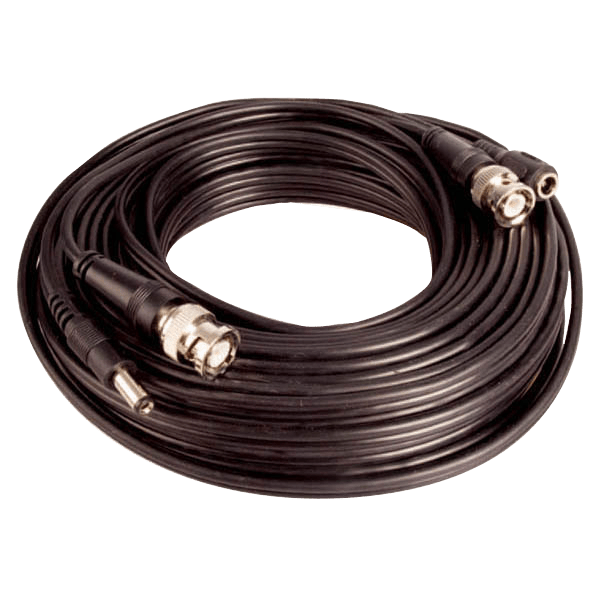

At 20 m long, the ESP CAB-20 is a power and BNC camera cable from ESP's CCTV range, suitable for analogue CCTV applications. It comes terminated with 2 x female BNC, 1 x male DC (2.1 x 5.5) and 1 x female DC (2.1 x 5.5).
Key features
- 20 m length
- Power and BNC camera cable
- Suitable for analogue CCTV applications
- Terminated connections: 2 x female BNC, 1 x male DC (2.1 x 5.5) & 1 x female DC (2.1 x 5.5)
- Solid bare copper centre conductor, 0.81 mm; foam PE dielectric
- CCS outer conductor, aluminium foil, 0.12 x 72 mm braid
- Black, 6.0 mm outer diameter
Frequently asked questions
How long is the CAB-20?
20 m.
What connections does it have?
2 x female BNC, 1 x male DC (2.1 x 5.5) and 1 x female DC (2.1 x 5.5), terminated.
What is it for?
It is a power and BNC camera cable, suitable for analogue CCTV applications.
What is the centre conductor?
Solid bare copper, 0.81 mm.
What is the outer diameter?
6.0 mm.
-
Download
- CAB-20 Tech Sheet
£
10
63
FAST delivery by Order within
Price
Technical Details
Specifications
Colour
Black
Materials
Solid Bare Copper Center Conductor
Jacket
PVC-90P Flexible
Length (m)
20
Inner Conductor (mm)
0.81
Dielectric
Foam PE
Outer Conductor
CCS
Inner Diameter (mm)
3.7
Foil Material
Aluminium
Braid (mm)
0.12 x 72
Minimum Coverage
0.95
Terminated Connections
2 x Female BNC, 1 x Male DC (2.1 x 5.5) & 1 x Female DC (2.1 x 5.5)
Outer Diameter (mm)
6.0
Warranty (Years)
2
Accessories
CAB-BNC: BNC Connector Cable Coupler
Specifications
| Colour | Black |
|---|---|
| Materials | Solid Bare Copper Center Conductor |
| Jacket | PVC-90P Flexible |
| Length (m) | 20 |
| Inner Conductor (mm) | 0.81 |
| Dielectric | Foam PE |
| Outer Conductor | CCS |
| Inner Diameter (mm) | 3.7 |
| Foil Material | Aluminium |
| Braid (mm) | 0.12 x 72 |
| Minimum Coverage | 0.95 |
| Terminated Connections | 2 x Female BNC, 1 x Male DC (2.1 x 5.5) & 1 x Female DC (2.1 x 5.5) |
| Outer Diameter (mm) | 6.0 |
| Warranty (Years) | 2 |
| Accessories | CAB-BNC: BNC Connector Cable Coupler |
20m Power and BNC Video Cable features
ESP CAB-20 20m Power and BNC Video Cable
