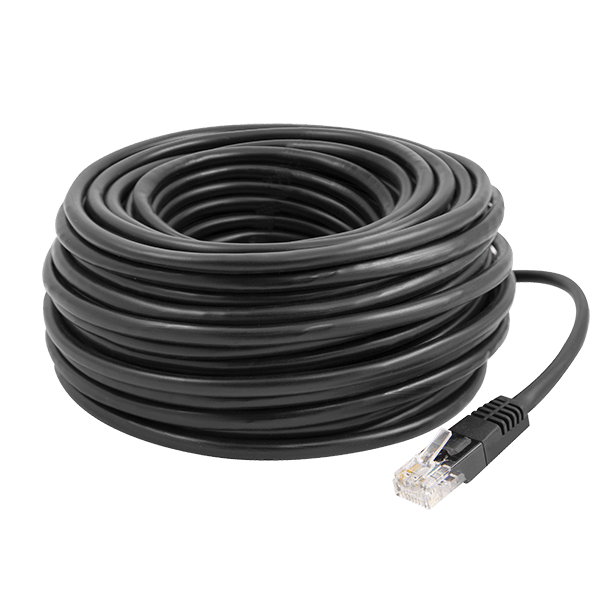

ESP CABIP80 80m Data Cable
£
46
74
(Incl. VAT)
2 Years Warranty
80m Data Cable
About this product
About this product
The ESP CABIP80, from ESP's CCTV range, is an 80m CAT-5e data cable, pre-terminated with an RJ45 at each end. It is a shielded twisted 4-pair cable with a PE jacket for external use.
Key features
- Length 80 m; terminated connections RJ45 x 2
- Pre-terminated CAT-5e cable
- Twisted 4-pair cores; cable specification 4 x 2 x 26 AWG
- Shielded; 0.4 mm inner conductor; outer diameter 6.0 mm
- External grade polyethylene jacketed cable: jacket PE (external use)
- Compatible with devices having RJ45 ports; suitable for use with the Rekor IP & HDview IP ranges
Frequently asked questions
How long is the CABIP80?
80 m, pre-terminated with RJ45 x 2.
Can it be run outside?
Its jacket is PE (external use): an external grade polyethylene jacketed cable.
What category is it?
CAT-5e, twisted 4-pair, 4 x 2 x 26 AWG.
What can it connect?
Devices having RJ45 ports; it is suitable for use with the Rekor IP & HDview IP ranges.
Is it shielded?
Yes.
-
Download
- CABIP80 Tech Sheet
£
46
74
FAST delivery by Order within
Price
Technical Details
Specifications
Colour
Black
Materials
Bare Copper Center Conductor
Cores
Twisted 4-Pair
Pre-wired
Yes
Shielded
Yes
Length (m)
80
Inner Conductor (mm)
0.4
Insulation Material
PE (HDPE)
Insulation Dimensions (mm)
0.92
Terminated Connections
RJ45 x 2
Outer Diameter (mm)
6.0
Warranty (Years)
2
Accessories
IPIN1POE: 1 Channel POE Injector; IPSW4POE: 4 Channel POE Switch; IPSW8POE: 8 Channel POE Switch; CABIPOUP: Data Cable Coupler with RJ45 Ports; IPX100POE: Single Channel PoE Extender
Category
CAT-5e
Jacket
PE (External Use)
Cable Specification
4 x 2 x 26 AWG
Features
Compatible with devices having RJ45 ports. Suitable for use with the Rekor IP & HDview IP ranges
Dimensions
Insulation Dimensions (mm)
0.92
Specifications
| Colour | Black |
|---|---|
| Materials | Bare Copper Center Conductor |
| Cores | Twisted 4-Pair |
| Pre-wired | Yes |
| Shielded | Yes |
| Length (m) | 80 |
| Inner Conductor (mm) | 0.4 |
| Insulation Material | PE (HDPE) |
| Insulation Dimensions (mm) | 0.92 |
| Terminated Connections | RJ45 x 2 |
| Outer Diameter (mm) | 6.0 |
| Warranty (Years) | 2 |
| Accessories | IPIN1POE: 1 Channel POE Injector; IPSW4POE: 4 Channel POE Switch; IPSW8POE: 8 Channel POE Switch; CABIPOUP: Data Cable Coupler with RJ45 Ports; IPX100POE: Single Channel PoE Extender |
| Category | CAT-5e |
| Jacket | PE (External Use) |
| Cable Specification | 4 x 2 x 26 AWG |
| Features | Compatible with devices having RJ45 ports. Suitable for use with the Rekor IP & HDview IP ranges |
Dimensions
| Insulation Dimensions (mm) | 0.92 |
|---|
80m Data Cable features
ESP CABIP80 80m Data Cable
